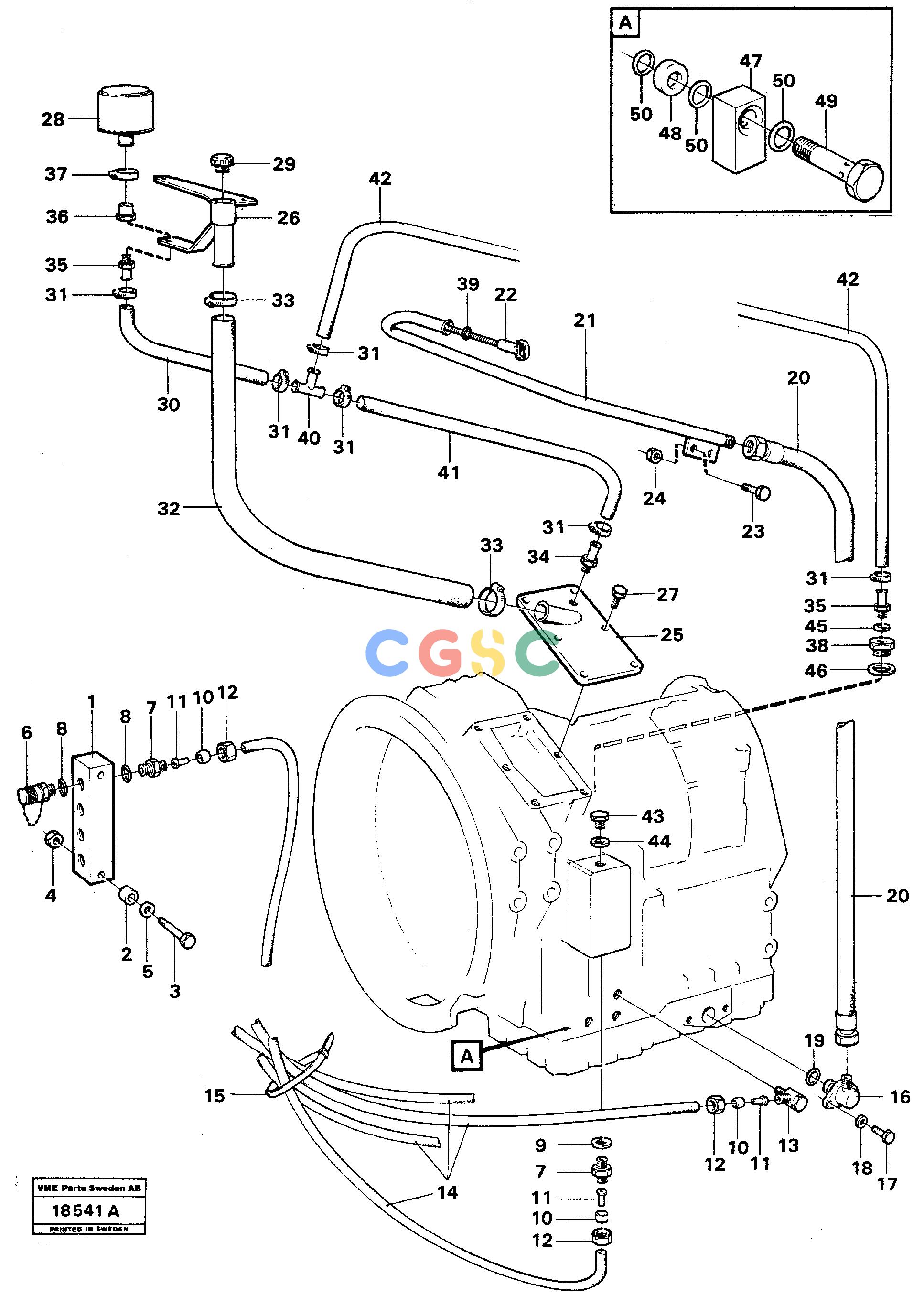

沃尔沃零件查询A25 VOLVO BM Oil dipstickVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
757 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4850324
|
[1] |
Testing block
|
SER NO - 5095
|
| 2. |
VOE60113600
|
[2] |
Spacer sleeve
|
SER NO - 5095
|
| 3. |
VOE970978
|
[2] |
Hexagon screw
|
|
| 4. |
VOE13971090
|
[2] |
Lock nut
|
|
| 5. |
VOE60110353
|
[2] |
Washer
|
|
| 6. |
VOE930032
|
[4] |
Testing nipple
|
|
| |
VOE13949574
|
|
O-ring
|
|
| 7. |
VOE13945355
|
[5] |
Nipple
|
SER NO - 5095
|
| 8. |
VOE13949574
|
[8] |
O-ring
|
SER NO - 5095
|
| 9. |
VOE14013067
|
[1] |
Sealing washer
|
SER NO - 5095
|
| |
VOE13947621
|
[1] |
Plane gasket
|
SER NO 5302 -
|
| 10. |
VOE13956967
|
[8] |
Ferrule
|
SER NO - 5095
|
| 11. |
VOE13949361
|
[8] |
Sleeve
|
SER NO - 5095
|
| 12. |
VOE941521
|
[8] |
Fitting nut
|
SER NO - 5095
|
| 13. |
VOE11701327
|
[3] |
Banjo fitting
|
SER NO - 5095
|
| 14. |
VOE944963
|
[4] |
Plastic pipe
|
L = 1030, SER NO -5095
|
| 15. |
VOE4821292
|
[6] |
Cable tie
|
SER NO - 5095
|
| 16. |
VOE4965394
|
[1] |
Cover
|
|
| 17. |
VOE955297
|
[2] |
Hexagon screw
|
|
| 18. |
VOE13960141
|
[4] |
Washer
|
|
| 19. |
VOE949658
|
[1] |
O-ring
|
|
| 20. |
VOE4881725
|
[1] |
Hose assembly
|
|
| 21. |
VOE11117750
|
[1] |
Tube
|
|
| 22. |
VOE11117944
|
[1] |
Dipstick
|
|
| 23. |
VOE940142
|
[2] |
Hexagon screw
|
|
| 24. |
VOE955782
|
[2] |
Hexagon nut
|
|
| 25. |
|
[1] |
Cover
|
|
| 26. |
|
[1] |
Filler pipe
|
|
| 27. |
VOE970945
|
[6] |
Hexagon screw
|
|
| 28. |
VOE11172907
|
[1] |
Air filter
|
|
| 29. |
VOE4942824
|
[1] |
Plug
|
|
| 30. |
VOE943367
|
[REQ] |
Hose
|
SER NO - 4349 L=400
|
| |
VOE13944075
|
[REQ] |
Rubber hose
|
SER NO 4350 - L=400
|
| 31. |
VOE943471
|
[5] |
Hose clamp
|
SER NO - 4349
|
| |
VOE943470
|
[5] |
Hose clamp
|
SER NO 4350 -
|
| 32. |
VOE941799
|
[REQ] |
Hose
|
L=780
|
| 33. |
VOE943476
|
[2] |
Hose clamp
|
|
| 34. |
VOE479953
|
[1] |
Nipple
|
|
| 35. |
VOE947502
|
[2] |
Nipple
|
|
| 36. |
VOE4854955
|
[1] |
Nipple
|
|
| 37. |
VOE943475
|
[1] |
Hose clamp
|
|
| 38. |
VOE4965576
|
[1] |
Plug
|
|
| 39. |
VOE13960209
|
[1] |
O-ring
|
SER NO - 4597
|
| |
VOE955984
|
[1] |
O-ring
|
SER NO 4598 -
|
| 40. |
VOE4965583
|
[1] |
T-pipe
|
|
| 41. |
VOE943367
|
[REQ] |
Hose
|
SER NO - 4349 L=340
|
| |
VOE13944075
|
[REQ] |
Rubber hose
|
SER NO 4350 - L=340
|
| 42. |
VOE943367
|
[REQ] |
Hose
|
SER NO - 4349 L=1000
|
| |
VOE13944075
|
[REQ] |
Rubber hose
|
SER NO 4350 - L=1000
|
| 43. |
VOE960630
|
[1] |
Plug
|
|
| 44. |
VOE13945653
|
[1] |
Plane gasket
|
|
| 45. |
VOE13949016
|
[1] |
Gasket
|
|
| 46. |
VOE976928
|
[1] |
Gasket
|
|
| 47. |
VOE11061349
|
[3] |
Nipple
|
SER NO 5096 -
|
| 48. |
VOE11061348
|
[3] |
Spacer
|
SER NO 5096 -
|
| 49. |
VOE11061347
|
[3] |
Hollow screw
|
SER NO 5096 -
|
| 50. |
VOE944364
|
[9] |
O-ring
|
SER NO 5096 -
|
