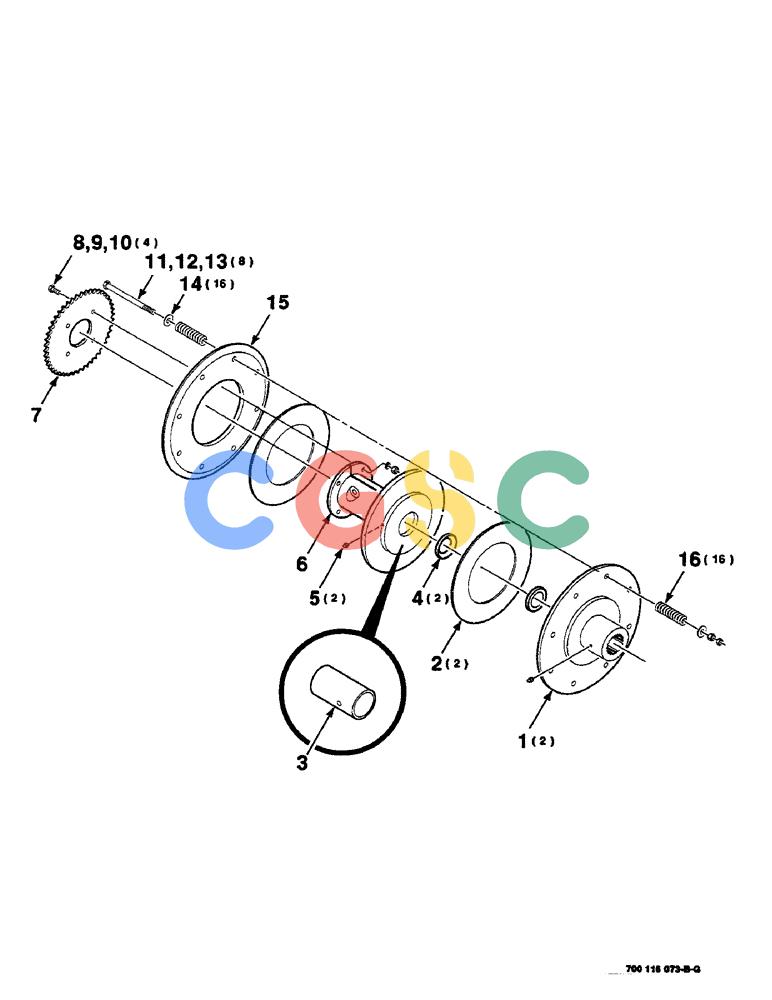

凯斯零件查询(8460) - CASE IH ROUND BALER (S/N CFH0057418 & AFTER) (1/88-12/93) (2-10) - CLUTCH ASSEMBLY, DRIVE SHAFT, SERIAL NUMBER CFH0016839 THROUGH CFH0057696 Case Agriculture
广数供应链运营团队, 14 02月, 2025，浏览：
631 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
700116081
|
[2] |
DISC
|
CAS
- pressure Superseded by part number: 700125678
|
| . . |
700125678
|
[1] |
DISC
|
CAS
WA - clutch
|
| 2. |
700710946
|
[2] |
CLUTCH PLATE
|
CAS
DISC - friction
|
| 3. |
700709417
|
[1] |
BRONZE BUSHING,34.95 mm ID x 41.351 mm OD x 44.45 mm
|
CAS
BEARING - bronze
|
| 4. |
700708327
|
[2] |
SEAL
|
CAS
|
| 5. |
219-8
|
[2] |
LUBE NIPPLE,1/4" - 28 NPTF
|
CAS
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg Superseded by part number: 87414
|
| 6. |
700119136
|
[1] |
FLANGE
|
CAS
WA (Includes item 3) (Superseded by 700125041 and 700711087) Superseded by part number: 280136, 700128323, 700711087, 88206, 80680
|
| . . |
700125041
|
[1] |
FLANGE
|
HFI
HUB (Includes item 3) Superseded by part number: 700128323
|
| 7. |
700116189
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - 40A46 tooth Superseded by part number: 700128329
|
| . . |
700128329
|
[1] |
SPROCKET ASSY.
|
CAS
SPROCKET - 40A46 tooth
|
| 8. |
413-516
|
[4] |
BOLT,Hex, 5/16" - 18 x 1", Gr 5
|
CAS
C Hex, 5/16"-18 x 1", G5, Full Thd Superseded by part number: 9635884, 72187198
|
| 9. |
492-11031
|
[4] |
LOCK WASHER,5/16"
|
CAS
WASHER, LOCK, 5/16" Superseded by part number: 83990583
|
| 10. |
425-105
|
[4] |
NUT,5/16"-18, G5
|
CAS
Superseded by part number: 9635082, 72187221
|
| 11. |
413-680
|
[8] |
BOLT,Hex, 3/8" - 16 x 5", Gr 5
|
CAS
Superseded by part number: 280177
|
| 12. |
425-106
|
[8] |
NUT,3/8"-16, Cl 5
|
CAS
Superseded by part number: 9628503
|
| 13. |
425-146
|
[8] |
JAM NUT,3/8" - 16, Gr 5
|
CAS
3/8-16 HEX JAM NUT GR2 Superseded by part number: 87016560
|
| 14. |
495-21044
|
[16] |
WASHER,3/8"
|
CAS
Superseded by part number: 87779090, 80702
|
| 15. |
700116075
|
[1] |
DISC
|
CAS
PLATE - clutch Superseded by part number: 700125677
|
| . . |
700125677
|
[1] |
DISC
|
CAS
PLATE - clutch
|
| 16. |
58107
|
[16] |
SPRING
|
IH
- compression
|
