卡特零件查询（725） 183-3513: CYLINDER GP-CAB TILT
广数供应链运营团队, 14 02月, 2025，浏览：
836 次

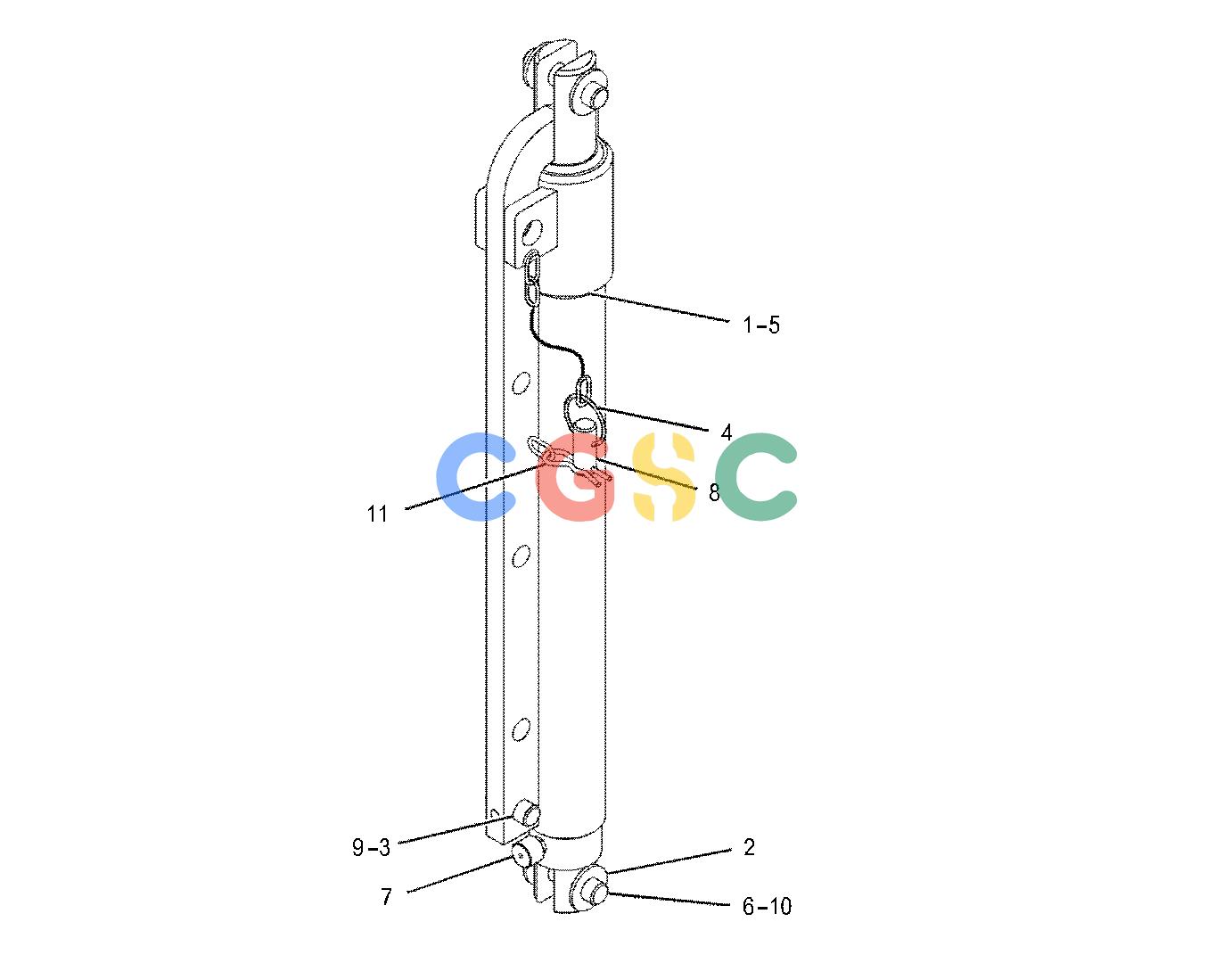

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6U-9992J | [1] | SEAL | |
| 2. | 3G-9108 | [4] | WASHER(13.8X23.2X1.57-MM THK) | |
| 3. | 6V-5212M | [1] | SETSCREW-SOCKET(M5X0.8X8-MM) | |
| 4. | 6U-9993 | [1] | RING | |
| 5. | 6U-9994J | [1] | SEAL-WIPER | |
| 6. | 3B-4615 | [4] | PIN-COTTER | |
| 7. | 109-5255 | [1] | ADAPTER | |
| 8. | 196-3918 | [1] | LOCK PIN | |
| 9. | 6W-5677 | [1] | ROD | |
| 10. | 7U-2948 | [2] | PIN | |
| 11. | 5P-0372 | [1] | LOCK PIN | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 448-2677J | [1] | KIT-HYD CYLINDER SEAL | |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
