沃尔沃零件查询A25 VOLVO BM Clutch gVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
859 次

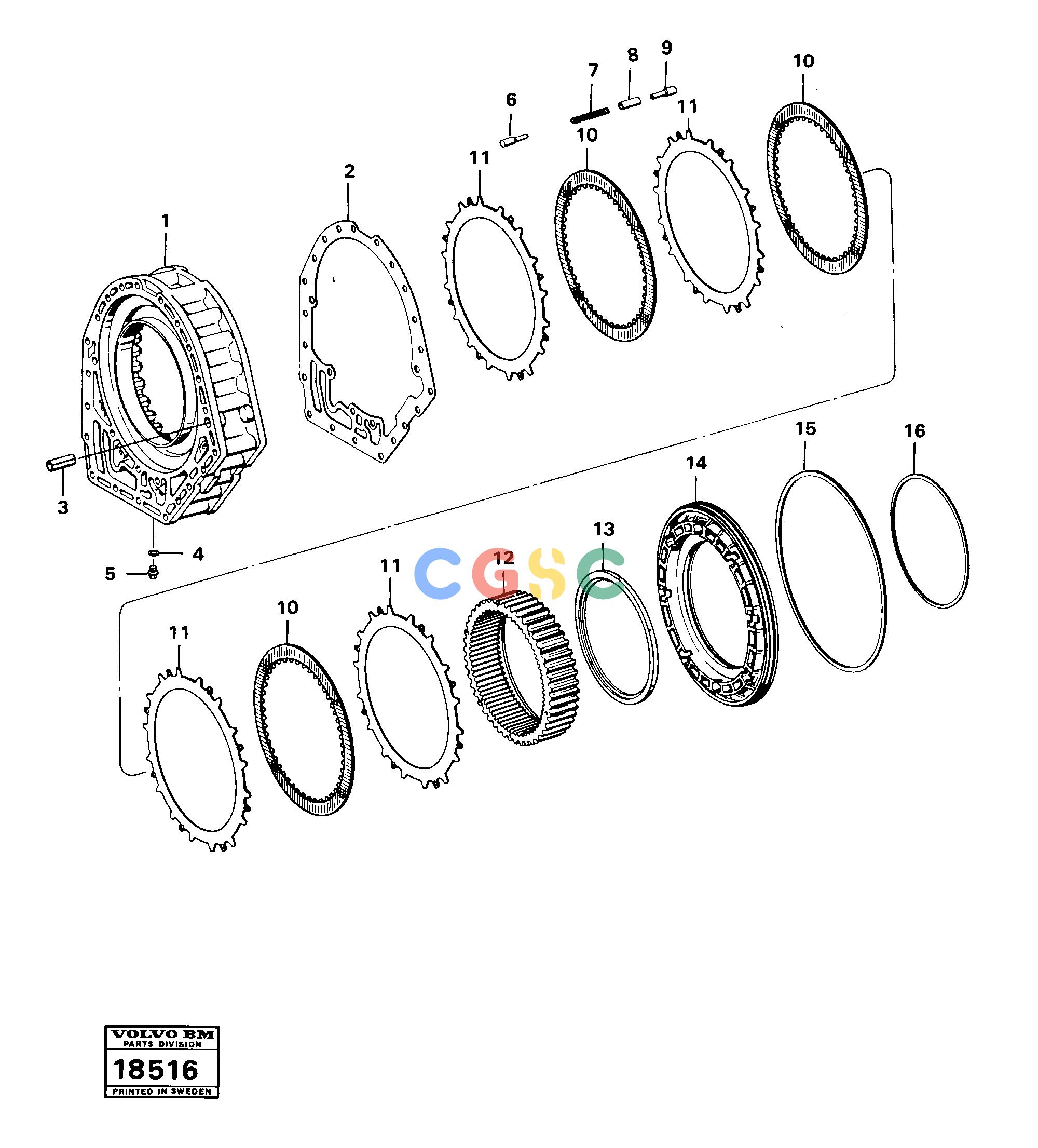

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11701310
|
[1] |
Intermediate housing
|
|
| 2. |
VOE11993293
|
[1] |
Gasket
|
|
| 3. |
VOE13952050
|
[1] |
Spring pin
|
|
| 4. |
VOE13947281
|
[1] |
Gasket
|
|
| 5. |
VOE960628
|
[1] |
Plug
|
|
| 6. |
VOE11701313
|
[8] |
Pin
|
|
| 7. |
VOE11991161
|
[8] |
Compression spring
|
|
| 8. |
VOE11701314
|
[8] |
Tube
|
|
| 9. |
VOE11991163
|
[8] |
Pin
|
|
| 10. |
VOE11707321
|
[7] |
Disc
|
|
| 11. |
VOE11991165
|
[0REQ] |
Disc
|
Thick =2,0
|
| |
VOE11998591
|
[REQ] |
Disc
|
Thick =2,5
|
| 12. |
VOE11991166
|
[1] |
Ring gear
|
|
| 13. |
VOE11991167
|
[1] |
Thrust ring
|
|
| 14. |
VOE11998597
|
[1] |
Piston
|
|
| 15. |
VOE11991155
|
[1] |
Sealing ring
|
|
| 16. |
VOE6633289
|
[1] |
Ring
|
|
