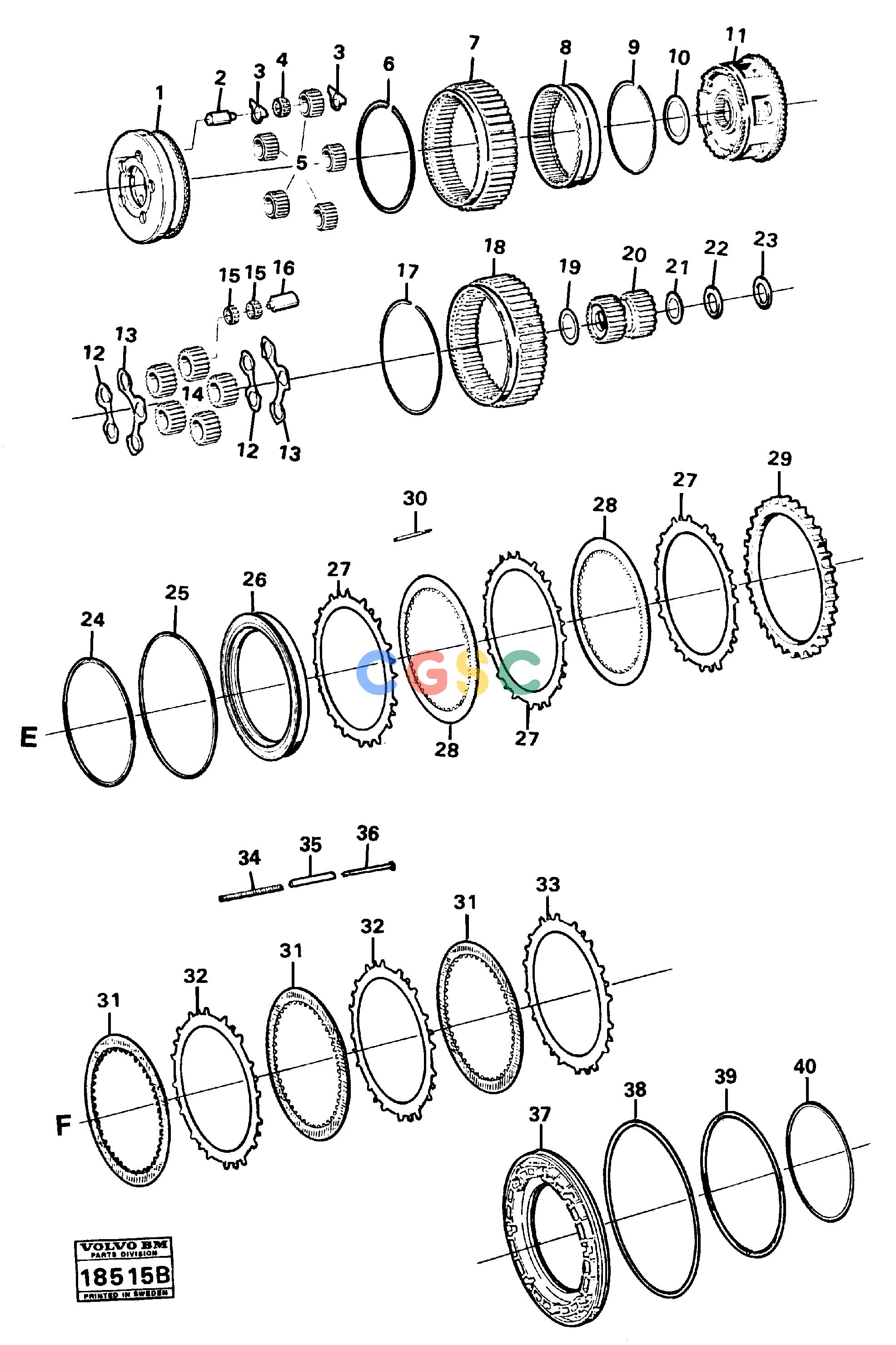

沃尔沃零件查询A25 VOLVO BM Clutch e,fVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
338 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11991124
|
[1] |
Planet carrier
|
|
| 2. |
VOE11991125
|
[5] |
Shaft
|
|
| 3. |
VOE11991126
|
[10] |
Wear washer
|
|
| 4. |
VOE11991127
|
[5] |
Needle bearing
|
|
| 5. |
VOE11713283
|
[1] |
Planet Gear
|
SATS/SET
|
| 6. |
VOE11991129
|
[1] |
Lock ring
|
|
| 7. |
VOE11992140
|
[1] |
Ring gear
|
|
| 8. |
VOE11991131
|
[1] |
Ring gear
|
|
| 9. |
VOE11991132
|
[1] |
Lock ring
|
|
| 10. |
VOE11994553
|
[1] |
Thrust washer
|
|
| 11. |
VOE11991134
|
[1] |
Planet carrier
|
|
| 12. |
VOE11991135
|
[2] |
Wear washer
|
|
| 13. |
VOE11991136
|
[2] |
Wear washer
|
|
| 14. |
VOE11991137
|
[1] |
Planet gear
|
SATS/SET
|
| 15. |
VOE11991138
|
[10] |
Needle bearing
|
|
| 16. |
VOE11991139
|
[5] |
Shaft
|
|
| 17. |
VOE11991129
|
[1] |
Lock ring
|
|
| 18. |
VOE11991145
|
[1] |
Ring gear
|
|
| 19. |
VOE11991146
|
[1] |
Thrust washer
|
|
| 20. |
VOE11991147
|
[1] |
Sun gear
|
|
| 21. |
VOE11991148
|
[REQ] |
Shim
|
Thick =1,40
|
| |
VOE11991149
|
[REQ] |
Shim
|
Thick =1,20
|
| |
VOE11991150
|
[REQ] |
Shim
|
Thick =1,00
|
| 22. |
VOE11992141
|
[1] |
Ring
|
E PROD
|
| |
VOE11998594
|
[1] |
Angle ring
|
L PROD
|
| 23. |
VOE11714473
|
[1] |
Ring
|
L PROD
|
| 24. |
VOE11991122
|
[1] |
Sealing ring
|
|
| 25. |
VOE11991123
|
[1] |
Sealing ring
|
|
| 26. |
VOE11705774
|
[1] |
Piston
|
|
| 27. |
VOE11993291
|
[1] |
Disc
|
Thick =3,0
|
| |
VOE1663345
|
[REQ] |
Disc
|
Thick =2,5
|
| |
VOE11991118
|
[REQ] |
Disc
|
Thick =2,0
|
| 28. |
VOE11708593
|
[6] |
Disc
|
|
| 29. |
VOE11992143
|
[1] |
Thrust ring
|
|
| 30. |
VOE11992144
|
[8] |
Pin
|
|
| 31. |
VOE11708593
|
[7] |
Disc
|
|
| 32. |
VOE11993291
|
[REQ] |
Disc
|
Thick =3,0
|
| |
VOE1663345
|
[REQ] |
Disc
|
Thick =2,5
|
| |
VOE11991118
|
[REQ] |
Disc
|
Thick =2,0
|
| 33. |
VOE8551061
|
[1] |
Disc
|
|
| 34. |
VOE11991141
|
[8] |
Compression spring
|
|
| 35. |
VOE11991142
|
[8] |
Tube
|
|
| 36. |
VOE11992144
|
[8] |
Pin
|
|
| 37. |
VOE11998595
|
[1] |
Piston
|
|
| 38. |
VOE11991155
|
[1] |
Sealing ring
|
|
| 39. |
VOE1663318
|
[1] |
Piston ring
|
|
| 40. |
VOE6633289
|
[1] |
Ring
|
|
