卡特零件查询（725） 340-4926: DISPLAY GP-CAMERA
广数供应链运营团队, 14 02月, 2025，浏览：
363 次

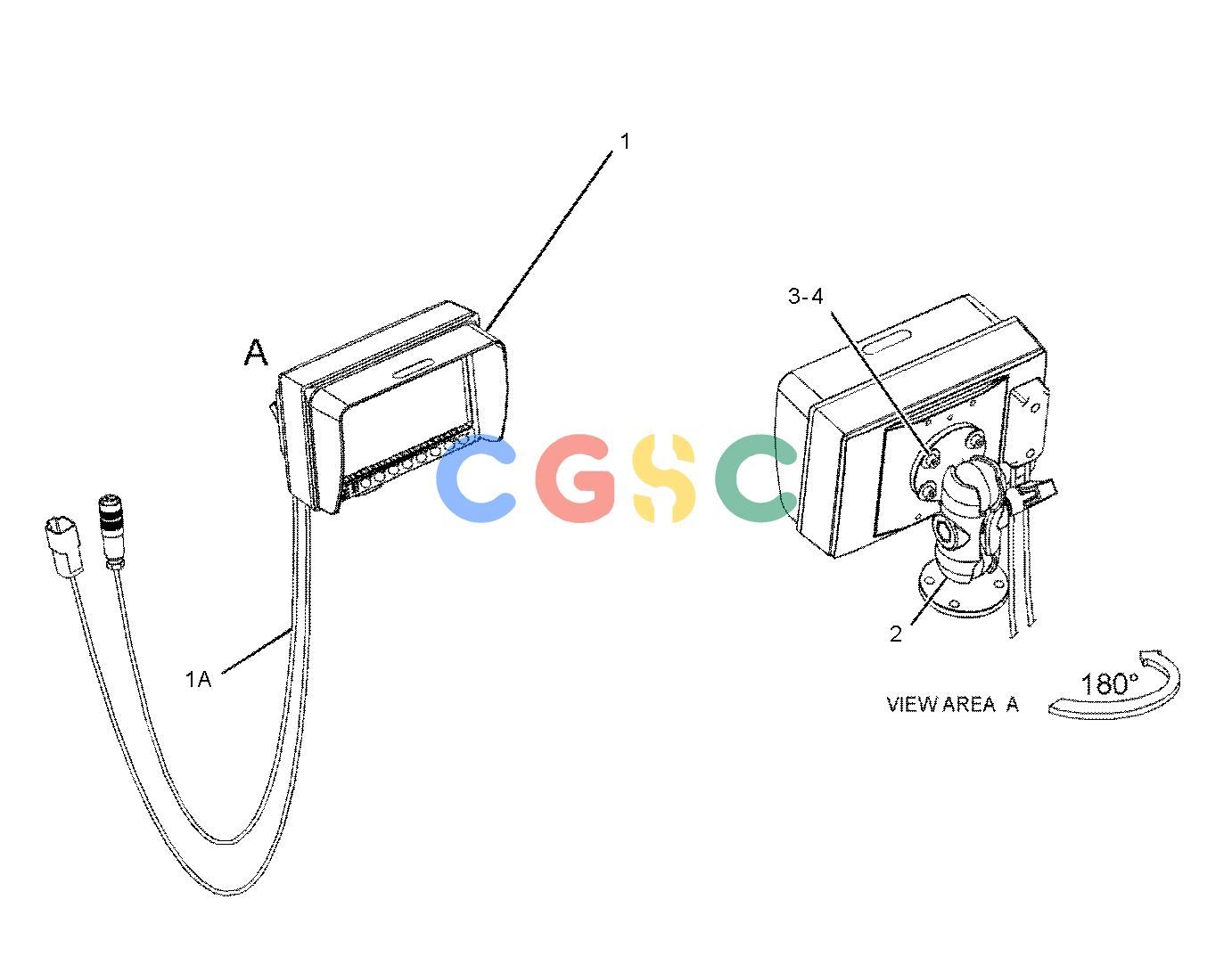

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 344-2731 | [1] | MODULE GP-DISPLAY(WORK AREA VISUAL SYSTEM) | |
| 1A. | 344-3848 | [1] | HARNESS AS-MONITOR(WORK AREA VISUAL SYSTEM) | |
| | 8T-8729 | [5] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [1] | PLUG-SEAL | |
| | 102-8805 | [1] | KIT-RECEPTACLE(6-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 2. | 261-3222 | [1] | MOUNTING GP-DISPLAY(WORK AREA VISUAL SYSTEM) | |
| | 259-4397 | [1] | CLAMP | |
| | 259-4399 | [2] | BASE | |
| 3. | 098-8968 | [4] | WASHER(5X16X1.2-MM THK) | |
| 4. | 099-2374M | [4] | BOLT-SOCKET HEAD(M5X0.8X12-MM) | |
| | M | | METRIC PART |
