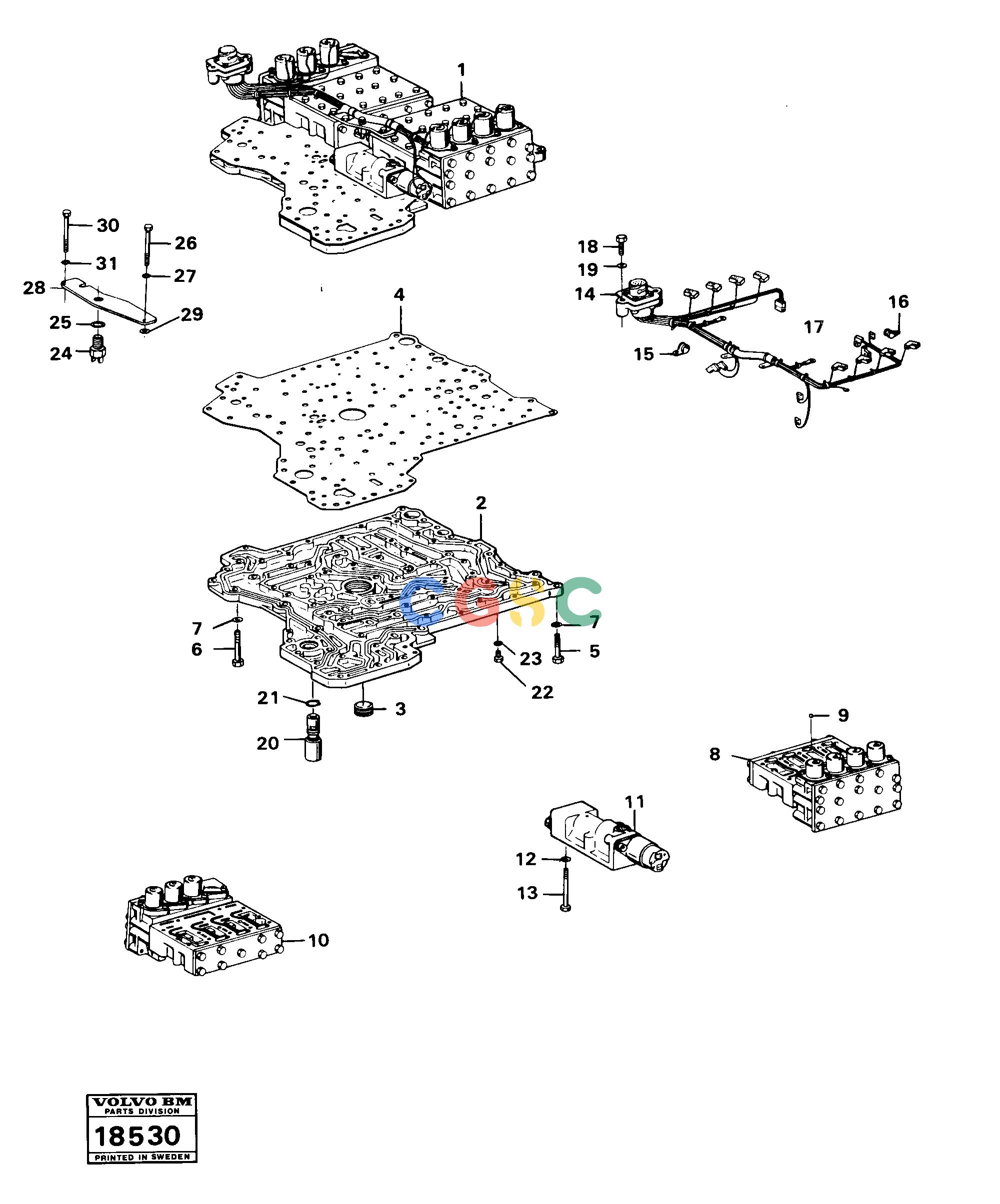

沃尔沃零件查询A25 VOLVO BM Selector valvesVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
742 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
|
[1] |
Shift valve
|
|
| 2. |
VOE11991225
|
[1] |
Valve Plate
|
|
| 3. |
VOE11991226
|
[1] |
Plug
|
|
| 4. |
VOE11701318
|
[1] |
Plate
|
|
| 5. |
VOE955299
|
[30] |
Hexagon screw
|
M8x45
|
| 6. |
VOE940132
|
[9] |
Hexagon screw
|
M8x35
|
| 7. |
VOE13955894
|
[39] |
Washer
|
|
| 8. |
|
[1] |
Valve block
|
|
| 9. |
VOE1663489
|
[1] |
Ball
|
|
| 10. |
|
[1] |
Valve block
|
|
| 11. |
|
[1] |
Valve
|
|
| 12. |
VOE955892
|
[6] |
Plain washer
|
|
| 13. |
VOE955277
|
[6] |
Hexagon screw
|
|
| 14. |
VOE11991237
|
[1] |
Cable harness
|
|
| |
VOE11700020
|
[1] |
Gasket
|
|
| |
VOE1663628
|
[1] |
Washer
|
|
| |
VOE949659
|
[1] |
O-ring
|
|
| 15. |
VOE18387
|
[2] |
Clamp
|
|
| 16. |
VOE18387
|
[1] |
Clamp
|
|
| 17. |
VOE11713393
|
[1] |
Clamp
|
|
| 18. |
VOE6637280
|
[2] |
Screw
|
|
| 19. |
VOE13955894
|
[2] |
Washer
|
|
| 20. |
VOE11991238
|
[1] |
Valve
|
|
| 21. |
VOE11991239
|
[1] |
Snap ring
|
|
| 22. |
VOE955243
|
[9] |
Hexagon screw
|
M5x10
|
| 23. |
VOE7018806
|
[9] |
Washer
|
|
| 24. |
VOE1662040
|
[1] |
Induction sensor
|
|
| 25. |
VOE1662039
|
[REQ] |
Adjusting washer
|
THICK=3,00
|
| |
VOE1662038
|
[REQ] |
Adjusting washer
|
THICK=2,80
|
| |
VOE1662037
|
[REQ] |
Adjusting washer
|
THICK=2,60
|
| |
VOE1662036
|
[REQ] |
Adjusting washer
|
THICK=2,40
|
| |
VOE1662035
|
[REQ] |
Adjusting washer
|
THICK=2,20
|
| |
VOE1662034
|
[REQ] |
Adjusting washer
|
THICK=2,00
|
| |
VOE1662033
|
[REQ] |
Adjusting washer
|
THICK=1,80
|
| |
VOE1662032
|
[REQ] |
Adjusting washer
|
THICK=1,60
|
| |
VOE1662030
|
[REQ] |
Adjusting washer
|
THICK=1,20
|
| |
VOE1662029
|
[REQ] |
Adjusting washer
|
THICK=1,00
|
| |
VOE1662028
|
[REQ] |
Adjusting washer
|
THICK=0,80
|
| |
VOE1662027
|
[REQ] |
Adjusting washer
|
THICK=0,60
|
| 26. |
VOE955282
|
[1] |
Hexagon screw
|
|
| 27. |
VOE955892
|
[1] |
Plain washer
|
|
| 28. |
VOE11992084
|
[1] |
Lock Plate
|
|
| 29. |
VOE11991234
|
[2] |
Washer
|
|
| 30. |
VOE955282
|
[1] |
Hexagon screw
|
|
| 31. |
VOE955892
|
[0001] |
Plain washer
|
|
