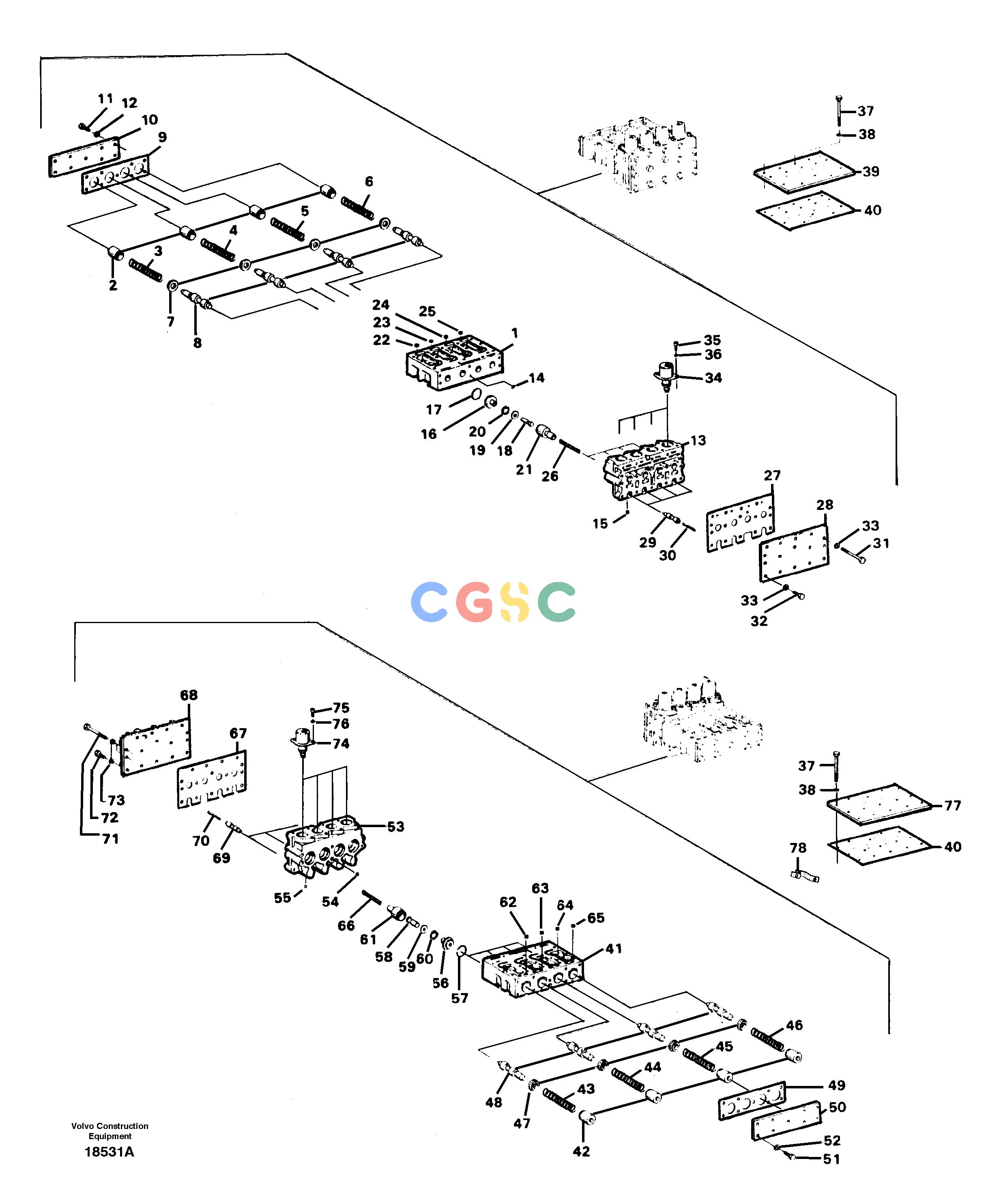

沃尔沃零件查询A25 VOLVO BM ValvesVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
775 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11707843
|
[1] |
Valve body
|
|
| 2. |
VOE11991241
|
[4] |
Piston
|
|
| 3. |
VOE11991042
|
[1] |
Compression spring
|
|
| 4. |
VOE11991042
|
[1] |
Compression spring
|
|
| 5. |
VOE11991244
|
[1] |
Compression spring
|
|
| 6. |
VOE11991242
|
[1] |
Compression spring
|
|
| 7. |
VOE11991245
|
[4] |
Washer
|
|
| 8. |
VOE11991246
|
[4] |
Piston
|
|
| 9. |
VOE11993299
|
[1] |
Gasket
|
|
| 10. |
VOE11991248
|
[1] |
Cover
|
|
| 11. |
VOE13955271
|
[9] |
Screw
|
|
| 12. |
VOE955892
|
[9] |
Plain washer
|
|
| 13. |
VOE11991249
|
[1] |
Housing
|
|
| 14. |
VOE11991250
|
[1] |
O-ring
|
|
| 15. |
VOE184114
|
[12] |
Ball
|
|
| 16. |
VOE11991251
|
[4] |
Bushing
|
|
| |
VOE11991252
|
[4] |
Bushing
|
ALT
|
| 17. |
VOE11991253
|
[4] |
O-ring
|
|
| 18. |
VOE11991254
|
[4] |
Pin
|
|
| 19. |
VOE11991255
|
[4] |
Washer
|
|
| 20. |
VOE914508
|
[4] |
Retaining ring
|
|
| 21. |
VOE11991256
|
[4] |
Piston
|
|
| 22. |
VOE11992151
|
[1] |
Jet
|
|
| 23. |
VOE11992151
|
[1] |
Jet
|
|
| 24. |
VOE11991257
|
[1] |
Jet
|
|
| |
VOE1663478
|
[1] |
Jet
|
ALT
|
| 25. |
VOE11991257
|
[1] |
Jet
|
|
| 26. |
VOE11991259
|
[4] |
Compression spring
|
|
| 27. |
VOE11993300
|
[1] |
Gasket
|
|
| 28. |
VOE11991261
|
[1] |
Cover
|
|
| 29. |
VOE11991262
|
[4] |
Piston
|
|
| 30. |
VOE11991263
|
[4] |
Compression spring
|
|
| 31. |
VOE955281
|
[5] |
Hexagon screw
|
|
| 32. |
VOE13955271
|
[11] |
Screw
|
|
| 33. |
VOE955892
|
[16] |
Plain washer
|
|
| 34. |
VOE1662047
|
[4] |
Solenoid valve
|
|
| |
VOE6211826
|
[1] |
O-ring
|
|
| |
VOE11702800
|
[1] |
O-ring
|
|
| 35. |
VOE959187
|
[8] |
Hex. socket screw
|
|
| 36. |
VOE13940090
|
[8] |
Washer
|
|
| 37. |
VOE955280
|
[28] |
Hexagon screw
|
|
| 38. |
VOE955892
|
[28] |
Plain washer
|
|
| 39. |
VOE8550574
|
[1] |
Cover
|
|
| 40. |
VOE11701331
|
[2] |
Gasket
|
|
| 41. |
VOE11991315
|
[1] |
Valve body
|
|
| 42. |
VOE11991241
|
[4] |
Piston
|
|
| 43. |
VOE11991042
|
[1] |
Compression spring
|
|
| 44. |
VOE11991043
|
[1] |
Compression spring
|
|
| 45. |
VOE11991043
|
[1] |
Compression spring
|
|
| 46. |
VOE11991242
|
[1] |
Compression spring
|
|
| 47. |
VOE11991245
|
[4] |
Washer
|
|
| 48. |
VOE11991246
|
[4] |
Piston
|
|
| 49. |
VOE11993299
|
[1] |
Gasket
|
|
| 50. |
VOE11991248
|
[1] |
Cover
|
|
| 51. |
VOE13955271
|
[9] |
Screw
|
|
| 52. |
VOE955892
|
[9] |
Plain washer
|
|
| 53. |
VOE11991249
|
[1] |
Housing
|
|
| 54. |
VOE11991250
|
[1] |
O-ring
|
|
| 55. |
VOE184114
|
[12] |
Ball
|
|
| 56. |
VOE11991251
|
[0004] |
Bushing
|
|
| |
VOE11991252
|
[0004] |
Bushing
|
ALT
|
| 57. |
VOE11991253
|
[4] |
O-ring
|
|
| 58. |
VOE11991254
|
[4] |
Pin
|
|
| 59. |
VOE11991255
|
[4] |
Washer
|
|
| 60. |
VOE914508
|
[4] |
Retaining ring
|
|
| 61. |
VOE11991256
|
[4] |
Piston
|
|
| 62. |
VOE11991257
|
[1] |
Jet
|
|
| 63. |
VOE11991257
|
[1] |
Jet
|
|
| 64. |
VOE11991257
|
[1] |
Jet
|
|
| 65. |
VOE11991257
|
[1] |
Jet
|
|
| 66. |
VOE11991259
|
[4] |
Compression spring
|
|
| 67. |
VOE11993300
|
[1] |
Gasket
|
|
| 68. |
VOE11991261
|
[1] |
Cover
|
|
| 69. |
VOE11991262
|
[4] |
Piston
|
|
| 70. |
VOE11991263
|
[4] |
Compression spring
|
|
| 71. |
VOE955281
|
[5] |
Hexagon screw
|
|
| 72. |
VOE13955271
|
[11] |
Screw
|
|
| 73. |
VOE955892
|
[14] |
Plain washer
|
|
| 74. |
VOE1662047
|
[4] |
Solenoid valve
|
|
| |
VOE6211826
|
[1] |
O-ring
|
|
| |
VOE11702800
|
[1] |
O-ring
|
|
| 75. |
VOE959187
|
[8] |
Hex. socket screw
|
|
| 76. |
VOE13940090
|
[8] |
Washer
|
|
| 77. |
VOE11992153
|
[1] |
Plate
|
|
| 78. |
VOE11991236
|
[1] |
Link
|
|
