凯斯零件查询(8460) - CASE IH ROUND BALER (S/N CFH0057418 & AFTER) (1/88-12/93) (3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0016501 THROUGH CFH0057722 Case Agriculture_凯斯Case_工程机械

凯斯零件查询(8460) - CASE IH ROUND BALER (S/N CFH0057418 & AFTER) (1/88-12/93) (3-04) - PICKUP ASSEMBLY, WITH HEX SHAFT ONLY, SERIAL NUMBER CFH0016501 THROUGH CFH0057722 Case Agriculture

广数供应链运营团队, 14 02月, 2025，浏览： 793 次

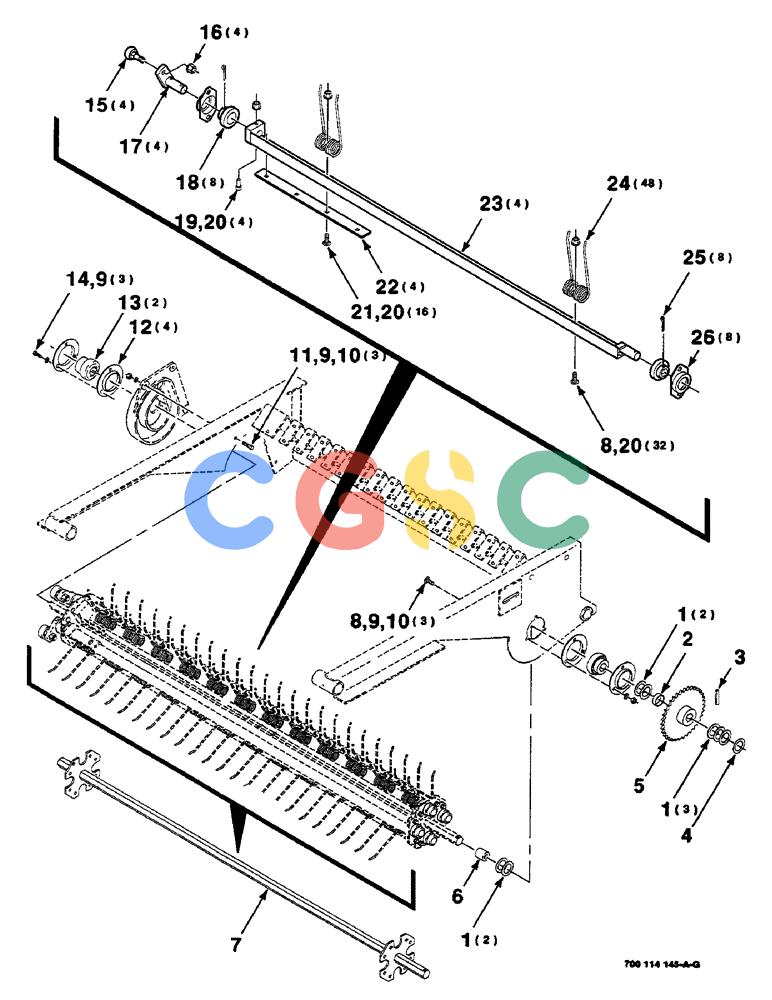

Pos.	Part No	Qty	Parts name	Comments
1.	52282	[7]	BUSHING	CAS 1-1/2 X 14 GAUGE NRMB Superseded by part number: 51200382, 51200382, NLS
2.	395871	[1]	SPACER	CAS
3.	20767R1	[1]	PIN,3/8" x 2 1/4", Coiled	IH 3/8" x 2 1/4", Coiled Superseded by part number: 87610718
4.	52712	[1]	BUSHING	CAS 1-1/2 X 18 GAUGE NRMB
5.	700117122	[1]	SPROCKET ASSY.	CAS SPROCKET 50B35 TOOTH
6.	700114174	[1]	SPACER	CAS
7.	700114148	[1]	ROTOR	HFI WA
8.	434-616	[35]	CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5	CAS 3/8-16 X 1 RHSNB Superseded by part number: 80280503
9.	492-11038	[9]	LOCK WASHER,3/8"	CAS Superseded by part number: 80680, 72187249
10.	425-106	[6]	NUT,3/8"-16, Cl 5	CAS Superseded by part number: 9628503
11.	413-620	[3]	BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5	CAS C Hex, 3/8"-16 x 1 1/4", G5, Full Thd Superseded by part number: 72187207, 88011
12.	617863R1	[4]	FLANGED BEARING	IH - bearing
13.	713834	[2]	BUSHING	NNA Superseded by part number: 700709621
14.	413-616	[3]	BOLT,Hex, 3/8" - 16 x 1", Gr 5	CAS Superseded by part number: 88206, 72187206
15.	700705612	[4]	CAM FOLLOWER	L BEARING - cam, follower Superseded by part number: 86536275
16.	702700045	[4]	LOCK NUT	L 1/2-20 SPIRALOCK
17.	700108618	[4]	ARM	L CRANK WA
18.	710392	[8]	BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm	L BEARING - cylindrical Superseded by part number: 84330047
19.	61-33836	[4]	HEX SOC SCREW,3/8 - 16 x 2-1/4"	CAS 3/8-16 X 2-1/4 HSHCS SPL
20.	232-5316	[52]	FLANGE NUT,Flg, 3/8"-16	CAS 3/8-16 HFTLN GR/G Superseded by part number: 86521609
21.	433-620	[16]	CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5	CAS BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5 Superseded by part number: 86508773
22.	700125083	[4]	STRAP	HFI
23.	700119965	[4]	ANGLE BAR	L ANGLE WA
24.	700709760	[48]	TINE	L TINE - double
25.	432-1632	[8]	COTTER PIN,1/4" x 2"	CAS Pin, Split (Cotter), 1/4" x 2" Superseded by part number: 88182
26.	700108622	[8]	FLANGED BEARING	L FLANGE - bearing
