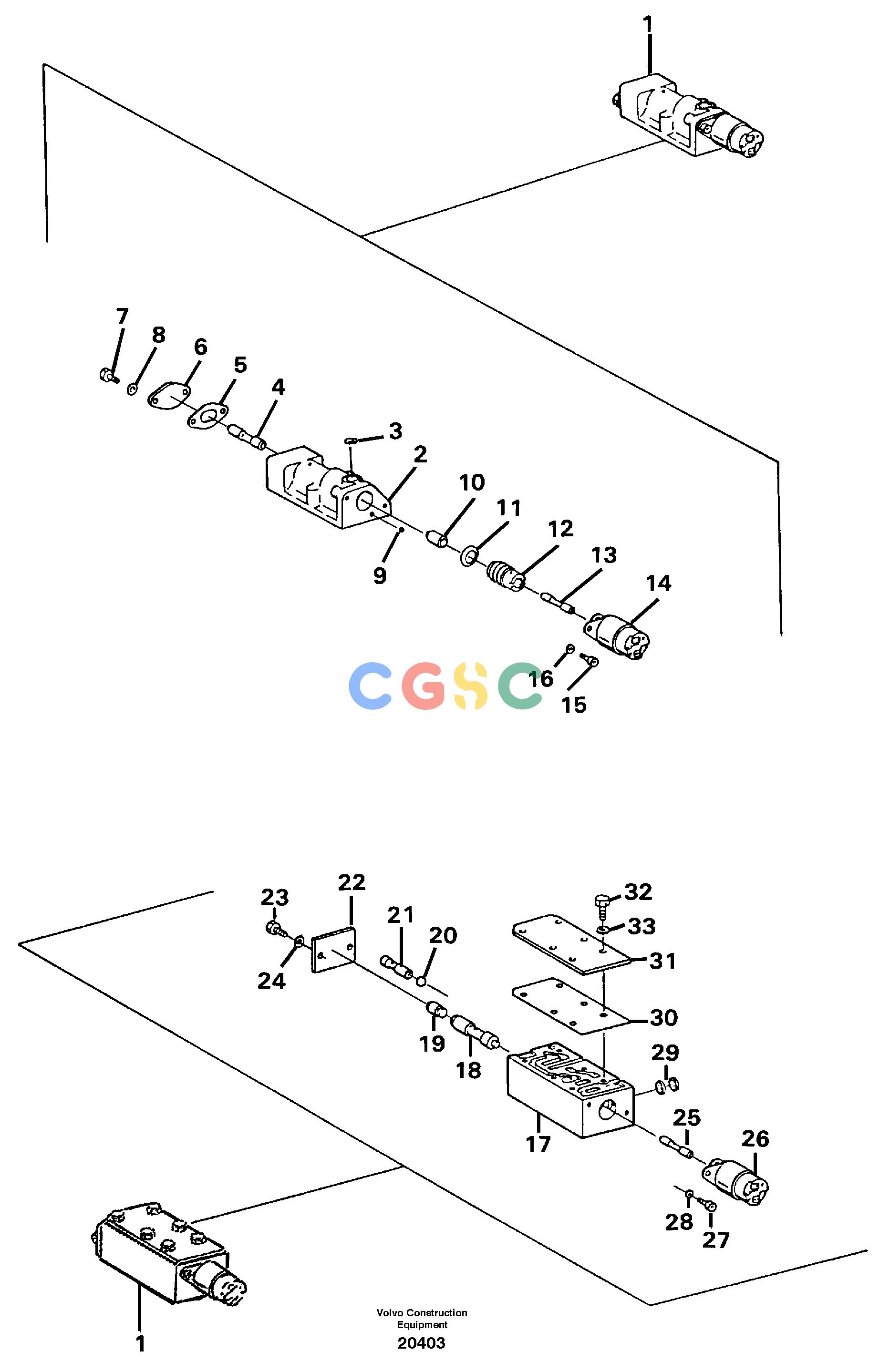

沃尔沃零件查询A25 VOLVO BM Modulation valveVOLVO BM A25TM NO-47238-TM NO 47239-NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
626 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11991233
|
[1] |
Valve
|
|
| 2. |
VOE11991264
|
[1] |
Valve housing
|
|
| 3. |
VOE11991272
|
[1] |
Filter
|
|
| 4. |
VOE11991269
|
[1] |
Piston
|
|
| 5. |
VOE11993302
|
[1] |
Gasket
|
|
| 6. |
VOE11991270
|
[1] |
Cap
|
|
| 7. |
VOE13955271
|
[2] |
Screw
|
|
| 8. |
VOE955892
|
[2] |
Plain washer
|
|
| 9. |
VOE184114
|
[1] |
Ball
|
|
| 10. |
VOE11991265
|
[1] |
Piston
|
|
| 11. |
VOE11991267
|
[2] |
Disc spring
|
|
| 12. |
VOE11991268
|
[1] |
Bushing
|
|
| 13. |
VOE11991266
|
[1] |
Piston
|
|
| 14. |
VOE1663564
|
[1] |
Magnet
|
|
| 15. |
VOE959189
|
[2] |
Hex. socket screw
|
|
| 16. |
VOE13940090
|
[2] |
Washer
|
|
| 17. |
VOE1663795
|
|
Housing
|
|
| 18. |
VOE1663807
|
|
Piston
|
|
| 19. |
VOE1663328
|
|
Piston
|
|
| 20. |
VOE1663838
|
|
Ball
|
|
| 21. |
VOE1663761
|
|
Piston
|
|
| 22. |
VOE1663555
|
|
Plate
|
|
| 23. |
VOE1663140
|
|
Screw
|
|
| 24. |
VOE955892
|
|
Plain washer
|
|
| 25. |
VOE1663839
|
|
Piston
|
|
| 26. |
VOE1663564
|
|
Magnet
|
|
| 27. |
VOE959189
|
|
Hex. socket screw
|
|
| 28. |
VOE13940090
|
|
Washer
|
|
| 29. |
VOE11998795
|
|
Filter
|
|
| 30. |
VOE1663811
|
|
Gasket
|
|
| 31. |
VOE1663812
|
|
Plate
|
|
| 32. |
VOE1663140
|
|
Screw
|
|
| 33. |
VOE955892
|
|
Plain washer
|
|
