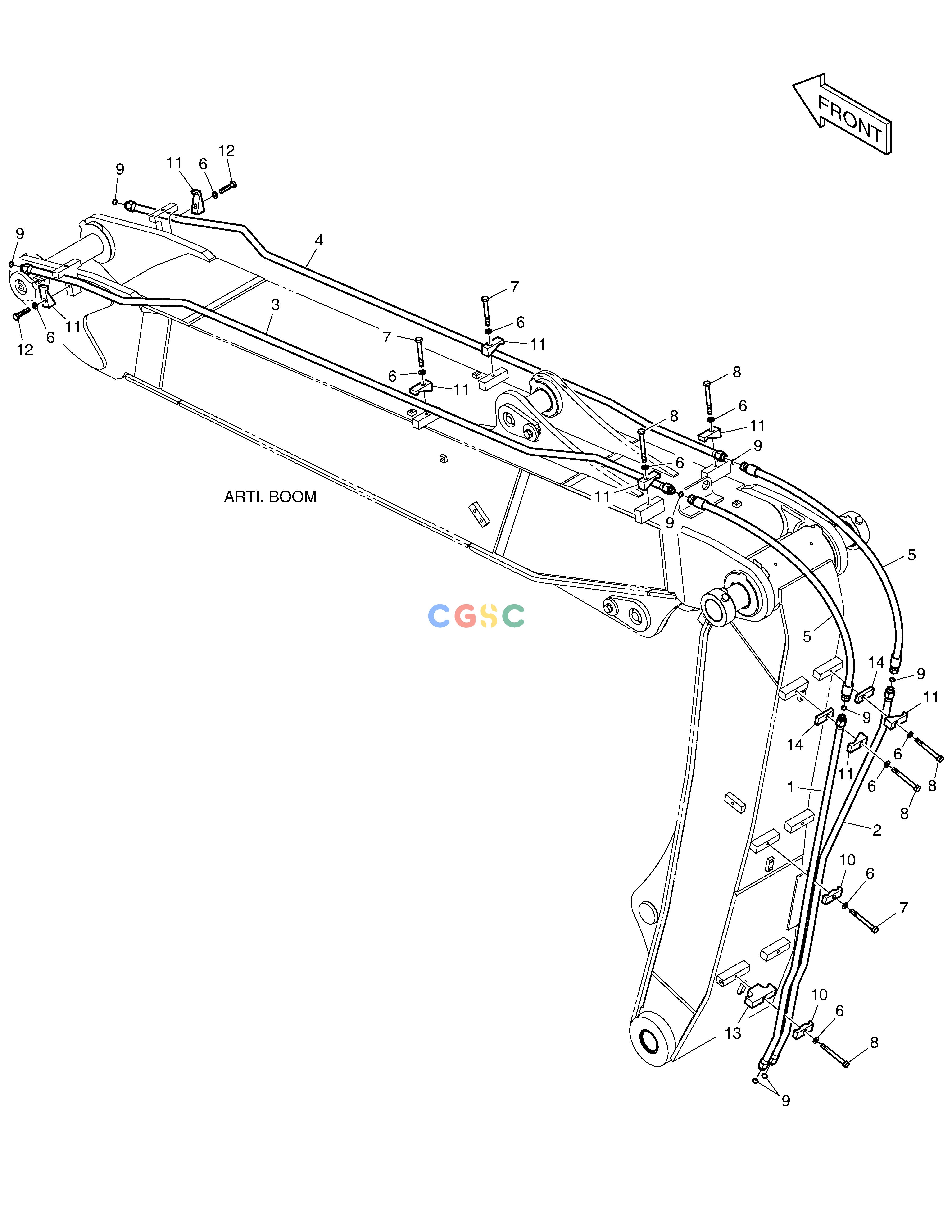

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-02458 | [-] | ||
| 1. | 420207-00581C | [1] | ||
| 10. | 120208-00069A | [2] | ||
| 11. | K1004349 | [8] | CLAMP | |
| 12. | S0560866 | [2] | BOLT | |
| 13. | 120208-00078A | [1] | ||
| 14. | 250201-00563A | [2] | ||
| 2. | 420207-00582C | [1] | ||
| 3. | 420207-00583E | [1] | ||
| 4. | 420207-00584E | [1] | ||
| 5. | DS20111369 | [2] | ||
| 6. | S5102703 | [10] | WASHER | |
| 7. | S0561666 | [3] | BOLT | |
| 8. | S0561966 | [5] | BOLT | |
| 9. | S8030081 | [8] | O-RING |
