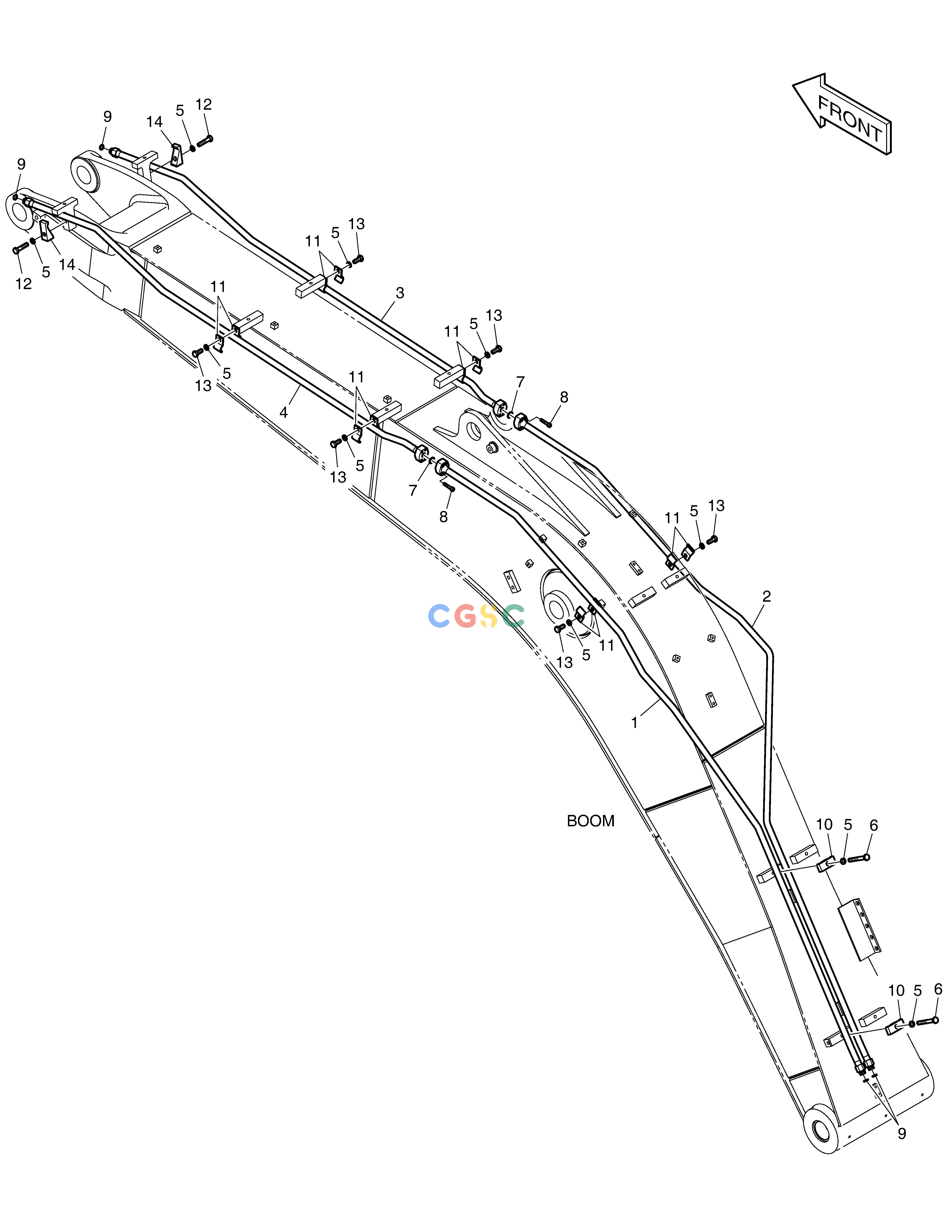

斗山零件查询BOOM PIPING - BOOM 4.6m(ROTATING) DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
239 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-02407
|
[-] |
|
|
| 1. |
420207-00553C
|
[1] |
|
|
| 10. |
120208-00069A
|
[2] |
|
|
| 11. |
124-00299A
|
[12] |
CLAMP
|
|
| 12. |
S0560866
|
[2] |
BOLT
|
|
| 13. |
S0515266
|
[6] |
BOLT
|
|
| 14. |
K1004349
|
[2] |
CLAMP
|
|
| 2. |
420207-00554C
|
[1] |
|
|
| 3. |
420207-00555C
|
[1] |
|
|
| 4. |
420207-00560C
|
[1] |
|
|
| 5. |
S5102703
|
[10] |
WASHER
|
|
| 6. |
S0561766
|
[2] |
BOLT
|
|
| 7. |
2180-1026D30
|
[2] |
O-RING
|
|
| 8. |
S2209566
|
[8] |
. BOLT;SOCKET M8X1.25X45
|
|
| 9. |
S8030081
|
[4] |
O-RING
|
|
