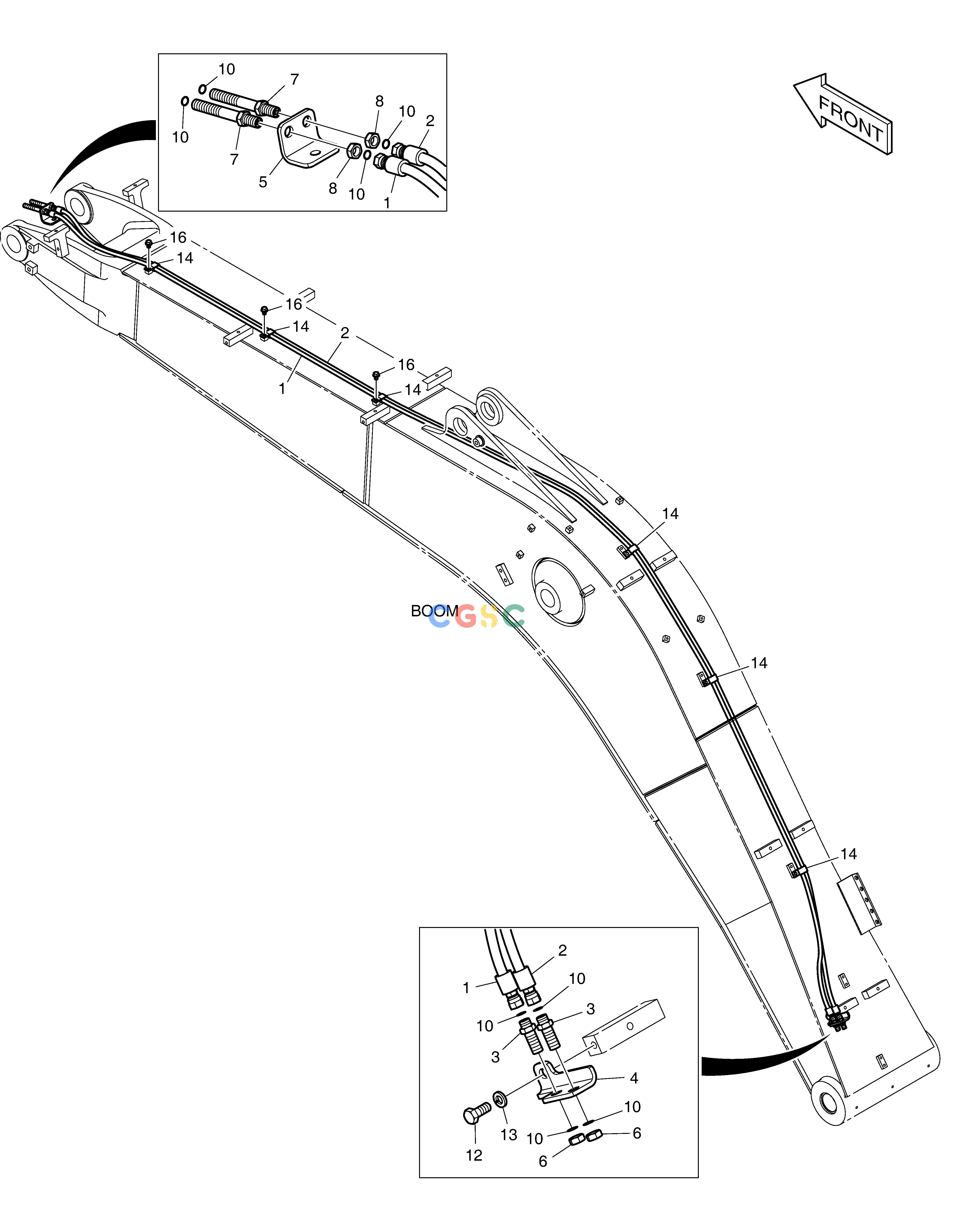

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-02408 | [-] | ||
| 1. | DS20111109 | [1] | ||
| 10. | S8030041 | [8] | O-RING | |
| 12. | S0515266 | [1] | BOLT | |
| 13. | S5102703 | [1] | WASHER | |
| 14. | DS2805009 | [6] | CLIP | |
| 16. | K1001029 | [3] | BOLT | |
| 2. | DS2011971 | [1] | ||
| 3. | DS2248004 | [2] | ELBOW;45 DEG | |
| 4. | 110406-00559B | [1] | ||
| 5. | 110406-00561A | [1] | ||
| 6. | DS0301066 | [2] | ||
| 7. | DS2248009 | [2] | ||
| 8. | DS0301066 | [2] |
