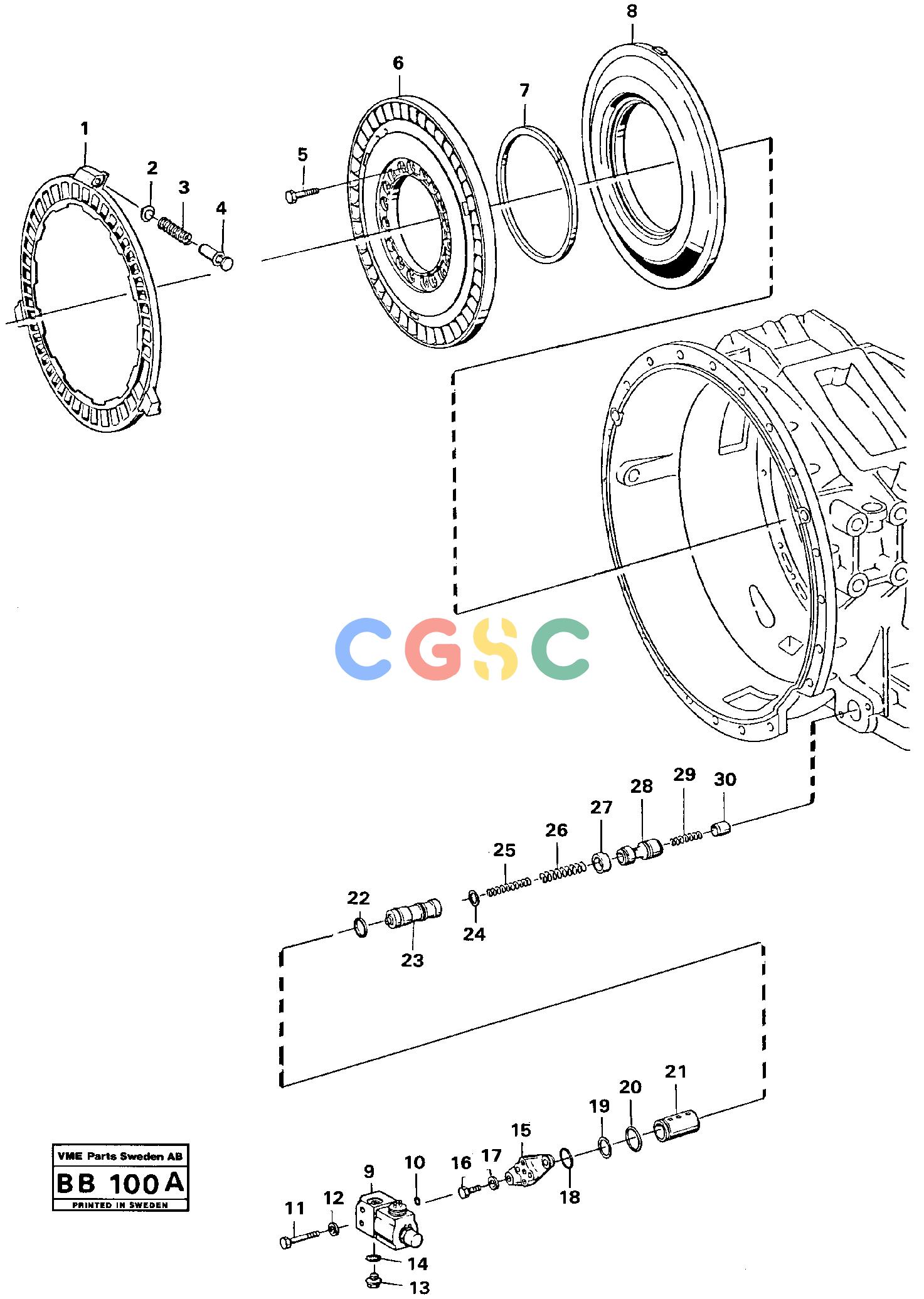

沃尔沃零件查询A25 VOLVO BM Retarder 91015VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
894 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE11991995
|
[1] |
Ring
|
|
| 2. |
VOE11991996
|
[3] |
Spring disc
|
|
| 3. |
VOE11991997
|
[3] |
Compression spring
|
|
| 4. |
VOE11994430
|
[3] |
Absorber
|
|
| 5. |
VOE13963222
|
[18] |
Screw
|
|
| 6. |
VOE11706660
|
[1] |
Rotor
|
|
| 7. |
VOE11706951
|
[1] |
Piston ring
|
|
| 8. |
VOE11707259
|
[1] |
Sealing washer
|
|
| 9. |
VOE11992016
|
[1] |
Solenoid valve
|
|
| 10. |
VOE11992015
|
[1] |
O-ring
|
|
| 11. |
VOE955301
|
[2] |
Hexagon screw
|
|
| 12. |
VOE13955894
|
[2] |
Washer
|
|
| 13. |
VOE960629
|
[1] |
Plug
|
|
| 14. |
VOE13947282
|
[1] |
Gasket
|
|
| 15. |
VOE11992133
|
[1] |
Cover
|
|
| 16. |
VOE955297
|
[2] |
Hexagon screw
|
|
| 17. |
VOE13955894
|
[2] |
Washer
|
|
| 18. |
VOE11992134
|
[1] |
O-ring
|
|
| 19. |
VOE11992135
|
[REQ] |
Shim
|
THICK=0,50
|
| |
VOE11992136
|
[REQ] |
Shim
|
THICK=0,40
|
| |
VOE11992137
|
[REQ] |
Shim
|
THICK=0,30
|
| 20. |
VOE11992021
|
[1] |
O-ring
|
|
| 21. |
VOE11992138
|
[1] |
Bushing
|
|
| 22. |
VOE11992023
|
[1] |
Gasket
|
|
| 23. |
VOE11994431
|
[1] |
Piston
|
|
| 24. |
VOE11992027
|
[REQ] |
Shim
|
THICK=0,5
|
| |
VOE11992028
|
[REQ] |
Shim
|
THICK=0,2
|
| 25. |
VOE11992024
|
[1] |
Compression spring
|
|
| 26. |
VOE11992025
|
[1] |
Compression spring
|
|
| 27. |
VOE11992139
|
[1] |
Stop ring
|
|
| 28. |
VOE11992029
|
[1] |
Piston
|
|
| 29. |
VOE11992030
|
[1] |
Compression spring
|
|
| 30. |
VOE11992031
|
[1] |
Piston
|
|
