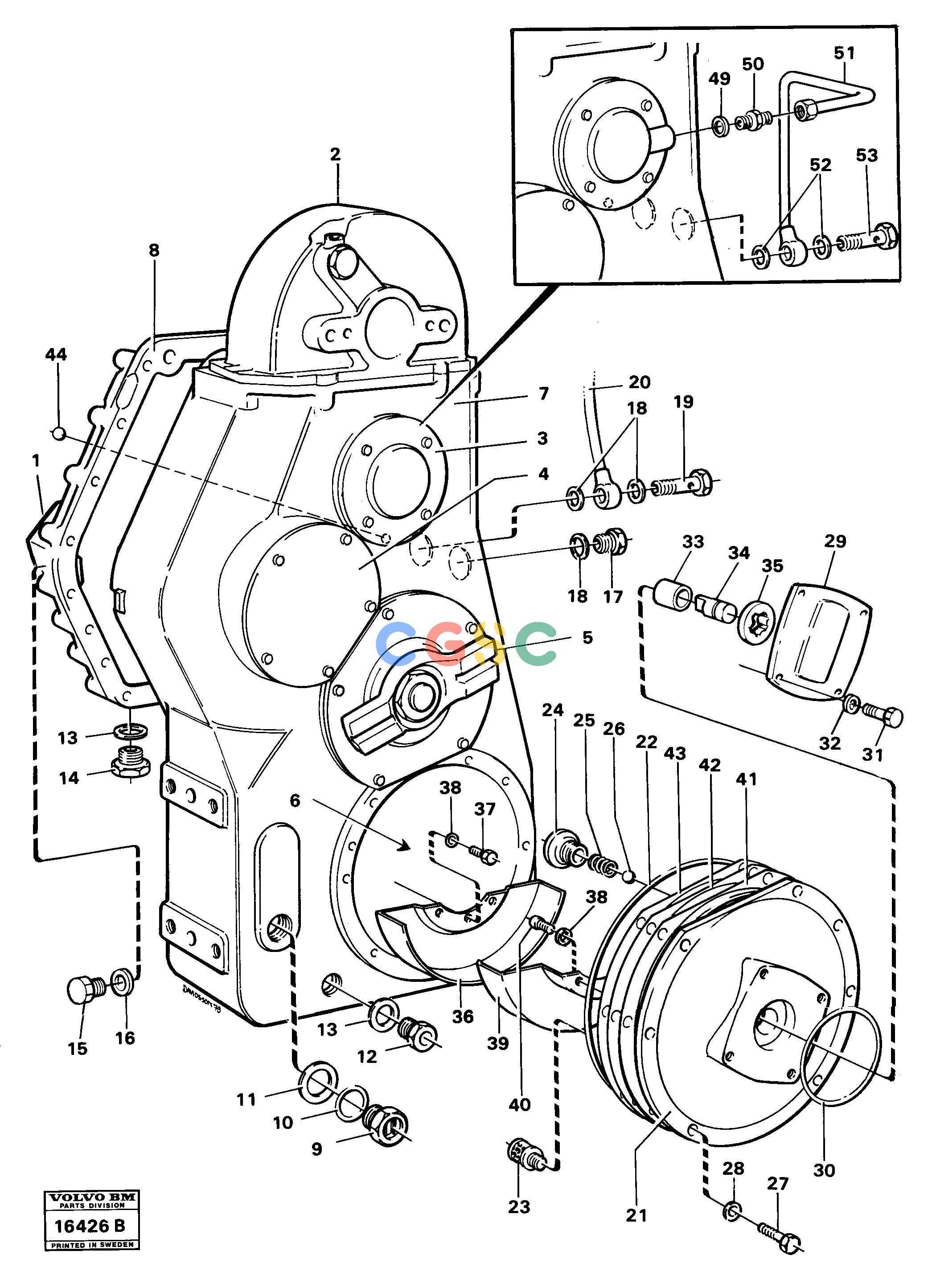

沃尔沃零件查询A25 VOLVO BM Drop box fl 652 b Prod Nr 30848VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
270 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Drive shaft
|
|
| 44. |
|
[0001] |
Ball
|
|
| 45. |
VOE13970982
|
[0018] |
Hexagon screw
|
|
| 46. |
VOE959267
|
[0002] |
Hex. socket screw
|
|
| 47. |
VOE13970987
|
[0001] |
Hexagon screw
|
|
| 48. |
VOE940280
|
[0021] |
Spring washer
|
|
| 49. |
VOE948883
|
[0001] |
Gasket
|
|
| 50. |
VOE13963948
|
[0001] |
Nipple
|
|
| 51. |
VOE4871457
|
[0001] |
Pipe
|
|
| 52. |
VOE13947622
|
[0002] |
Plane gasket
|
|
| 53. |
VOE941686
|
[0001] |
Hollow screw
|
|
| 6. |
|
[0001] |
Lower shaft
|
|
| |
VOE6630549
|
[0001] |
Gasket kit
|
|
| 7. |
VOE4871380
|
[0001] |
Housing
|
|
| |
VOE13948790
|
[0002] |
Bearing bushing
|
|
| |
VOE13948790
|
[0002] |
Bearing bushing
|
|
| 1. |
|
[0001] |
Differential
|
|
| 8. |
VOE4871064
|
[0001] |
Cap
|
|
| |
VOE950711
|
[0001] |
Pin
|
|
| |
VOE4718167
|
[0001] |
Pin
|
|
| |
VOE4719613
|
[0001] |
Tube
|
|
| 9. |
VOE11063114
|
[0001] |
Level Inspection Glass
|
|
| 10. |
VOE13955997
|
[0001] |
O-ring
|
|
| 11. |
VOE957193
|
[0001] |
Gasket
|
|
| 12. |
VOE11102187
|
[0001] |
Magnetic plug
|
|
| 13. |
VOE13947628
|
[0002] |
Plane gasket
|
|
| 14. |
VOE11102187
|
[0001] |
Magnetic plug
|
|
| 2. |
|
[0001] |
Pump drive
|
|
| 15. |
VOE13960632
|
[0001] |
Plug
|
|
| 16. |
VOE13947624
|
[0001] |
Plane gasket
|
|
| 17. |
VOE960631
|
[0001] |
Plug
|
|
| 18. |
VOE13947622
|
[0003] |
Plane gasket
|
|
| 19. |
VOE941686
|
[0001] |
Hollow screw
|
|
| 20. |
|
[0001] |
Oil pipe
|
|
| 21. |
VOE4720692
|
[0001] |
Bearing carrier
|
|
| 22. |
VOE13949738
|
[0001] |
O-ring
|
|
| 23. |
VOE4720409
|
[0001] |
Strainer
|
|
| 24. |
VOE4719997
|
[0001] |
Spring stop
|
|
| 3. |
|
[0001] |
Upper shaft
|
|
| 25. |
VOE4720001
|
[0001] |
Spring
|
|
| 26. |
VOE7000205
|
[0001] |
Ball
|
|
| 27. |
VOE13970948
|
[0008] |
Hexagon screw
|
|
| 28. |
VOE941908
|
[0008] |
Spring washer
|
|
| 29. |
VOE4720037
|
[0001] |
Cover
|
|
| 30. |
VOE13949736
|
[0001] |
O-ring
|
|
| 31. |
VOE955297
|
[0004] |
Hexagon screw
|
|
| 32. |
VOE13941907
|
[0004] |
Washer
|
|
| 33. |
VOE943959
|
[0001] |
Bearing bushing
|
|
| |
VOE4720658
|
[0001] |
Pump unit
|
|
| 4. |
|
[0001] |
Intermediate shaft
|
|
| 34. |
|
[0001] |
Shaft
|
|
| 35. |
|
[0001] |
Rotor kit
|
|
| 36. |
VOE11036849
|
[0001] |
Oil pan
|
|
| 37. |
VOE955269
|
[0003] |
Hexagon screw
|
|
| 38. |
VOE13949607
|
[0006] |
Washer
|
|
| 39. |
VOE4719090
|
[0001] |
Oil plate
|
|
| 40. |
VOE942000
|
[0003] |
Hex. socket screw
|
|
| 41. |
VOE4719083
|
[REQ] |
Spacer
|
THICK = 1,0
|
| 42. |
VOE4719084
|
[REQ] |
Spacer
|
THICK = 0,35
|
| 43. |
VOE4719085
|
[REQ] |
Spacer
|
THICK = 0,1
|
