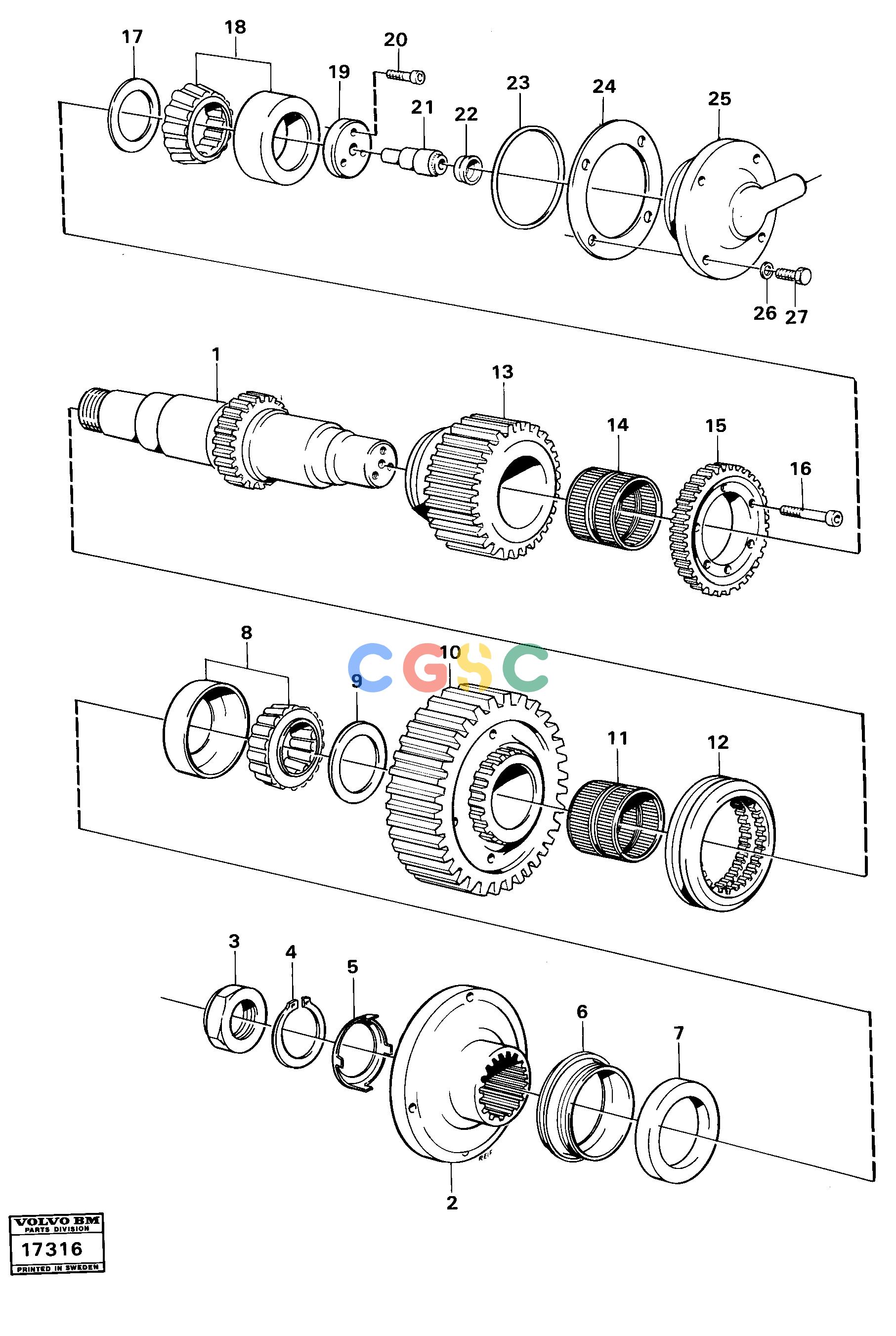

沃尔沃零件查询A25 VOLVO BM Upper shaftVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE4716226
|
[0001] |
Nut
|
|
| 4. |
VOE914480
|
[0001] |
Snap ring
|
|
| 5. |
VOE382779
|
[0001] |
Lock washer
|
ALT 383992
|
| 6. |
VOE943142
|
[0001] |
Sealing ring
|
|
| 7. |
VOE4880627
|
[0001] |
Sealing ring
|
|
| 1. |
VOE4871381
|
[0001] |
Shaft
|
|
| 8. |
VOE183837
|
[0001] |
Roller bearing
|
|
| 9. |
VOE4871402
|
[0001] |
Spacer washer
|
|
| 10. |
VOE4871383
|
[0001] |
Gear
|
|
| 11. |
VOE1527316
|
[0001] |
Needle bearing
|
|
| 12. |
VOE4871382
|
[0001] |
Engaging sleeve
|
|
| 13. |
VOE4871384
|
[0001] |
Gear
|
|
| 14. |
VOE1527316
|
[0001] |
Needle bearing
|
|
| 15. |
VOE4871370
|
[0001] |
Gear
|
|
| 16. |
VOE13948400
|
[0006] |
Screw
|
|
| 17. |
VOE4871403
|
[0001] |
Spacer washer
|
|
| 18. |
VOE183373
|
[0001] |
Roller bearing
|
|
| 19. |
VOE4871066
|
[0001] |
Washer
|
|
| 20. |
VOE959241
|
[0003] |
Hex. socket screw
|
|
| 21. |
VOE4719266
|
[0001] |
Junction pipe
|
|
| 22. |
VOE4881059
|
[0001] |
Sealing ring
|
|
| 23. |
VOE13949647
|
[0001] |
O-ring
|
|
| 24. |
VOE4719514
|
[REQ] |
Spacer
|
|
| |
VOE4719515
|
[REQ] |
Spacer
|
|
| |
VOE4719516
|
[REQ] |
Spacer
|
|
| 25. |
VOE4871794
|
[0001] |
Cap
|
|
| 2. |
VOE11102715
|
[0001] |
Companion flange
|
|
| 26. |
VOE941908
|
[0004] |
Spring washer
|
|
| 27. |
VOE13970948
|
[0004] |
Hexagon screw
|
|
| |
VOE382015
|
[0001] |
Dust cover
|
|
