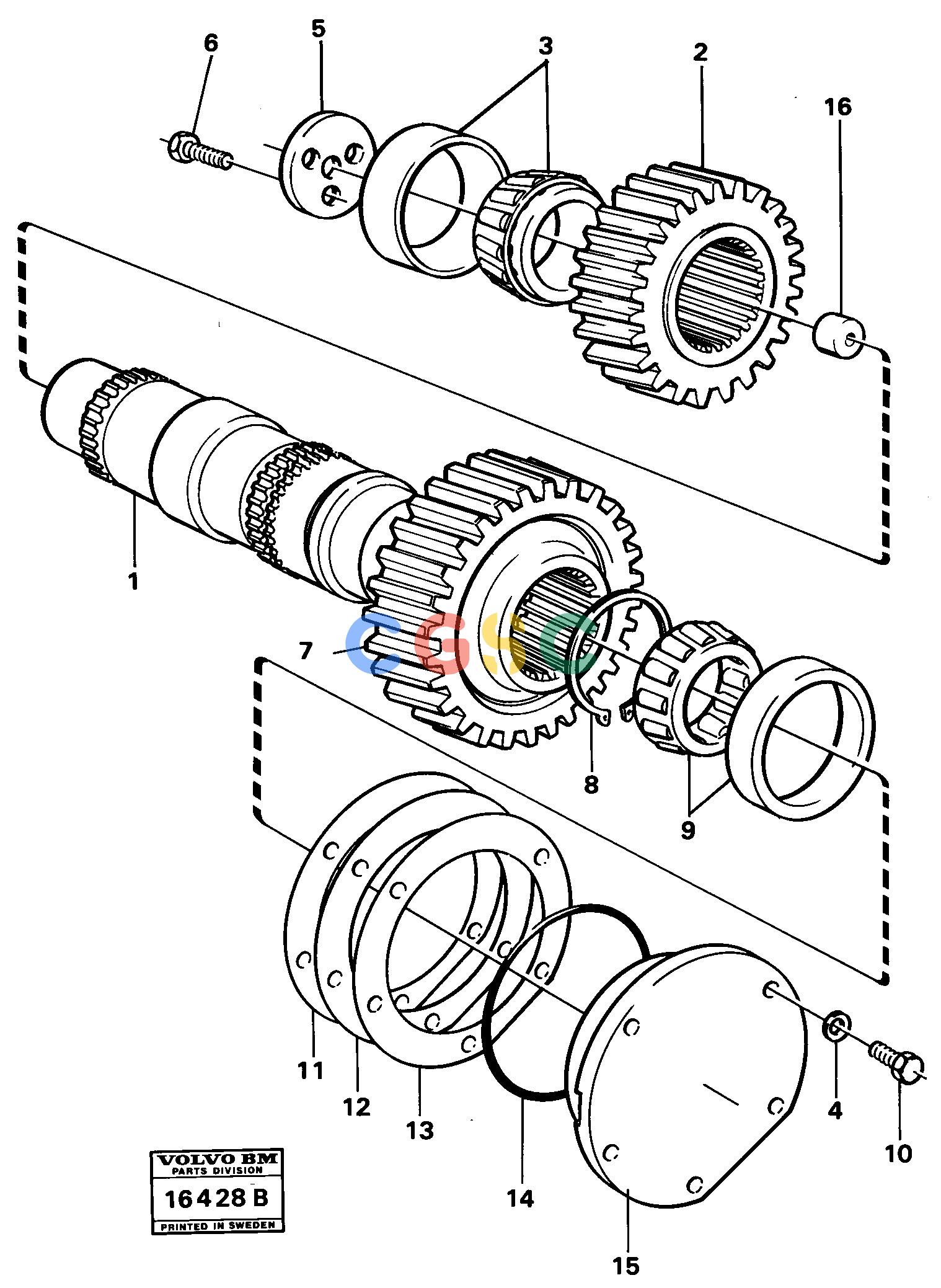

沃尔沃零件查询A25 VOLVO BM Intermediate shaftVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
651 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE4871066
|
[0001] |
Washer
|
|
| 6. |
VOE13970950
|
[0003] |
Hexagon screw
|
|
| 7. |
VOE4871385
|
[0001] |
Gear
|
|
| 8. |
VOE13945505
|
[0001] |
Snap ring
|
|
| 9. |
VOE183837
|
[0001] |
Roller bearing
|
|
| 1. |
VOE4871059
|
[0001] |
Shaft
|
|
| 10. |
VOE13970948
|
[0005] |
Hexagon screw
|
|
| 11. |
VOE11036812
|
[REQ] |
Shim
|
THICK = 1,0 MM
|
| 12. |
VOE11036813
|
[REQ] |
Shim
|
THICK = 0,35 MM
|
| 13. |
VOE11036814
|
[REQ] |
Shim
|
THICK = 0,1 MM
|
| 14. |
VOE13948888
|
[0001] |
O-ring
|
|
| 15. |
VOE4719277
|
[0001] |
Bearing carrier
|
|
| 16. |
VOE4719964
|
[0001] |
Companion flange
|
|
| 2. |
VOE11038103
|
[0001] |
Gear
|
|
| 3. |
VOE183373
|
[0001] |
Roller bearing
|
|
| 4. |
VOE941908
|
[0005] |
Spring washer
|
|
