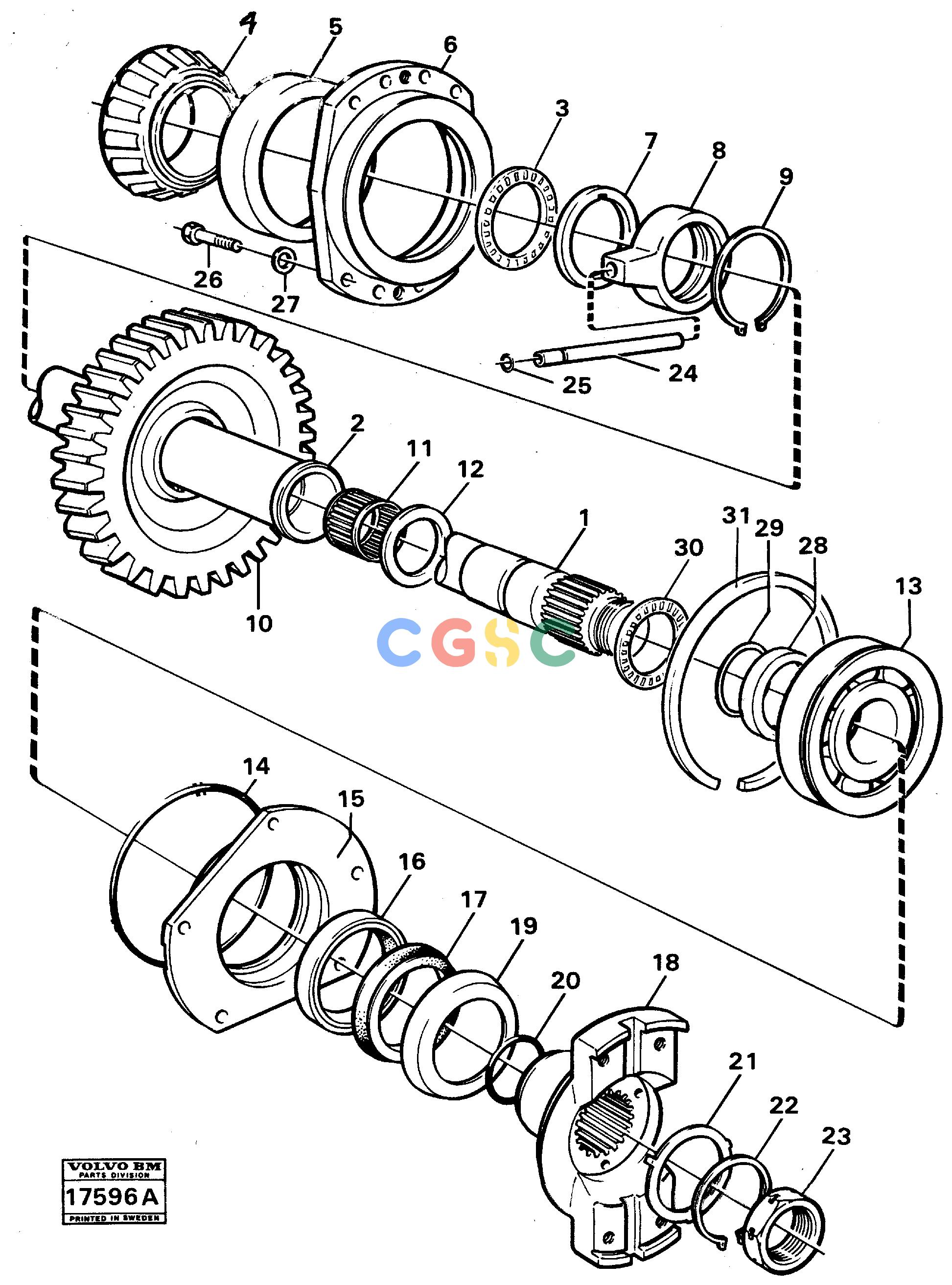

沃尔沃零件查询A25 VOLVO BM Drive shaft drop box Fl 652bVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
1009 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE184348
|
[0001] |
Thrust needle roller assy
|
|
| 4. |
VOE184185
|
[0001] |
Roller bearing
|
|
| 5. |
VOE184185
|
[0001] |
Roller bearing
|
|
| 6. |
VOE4719787
|
[0001] |
Bearing carrier
|
|
| 7. |
VOE184255
|
[0001] |
Shaft washer
|
SER NO 2743 -
|
| 1. |
VOE11036155
|
[0001] |
Axle shaft
|
SER NO 2743 -
|
| |
VOE4871027
|
[0001] |
Thrust Washer
|
SER NO - 2742
|
| 8. |
VOE4871887
|
[0001] |
Oil channel
|
SER NO 2743 -
|
| |
VOE4871671
|
[0001] |
Oil channel
|
SER NO - 2742
|
| 9. |
VOE13945507
|
[0001] |
Snap ring
|
|
| 10. |
VOE11036046
|
[0001] |
Gear
|
SER NO 2743 -
|
| |
VOE4871667
|
[0001] |
Gear
|
SER NO - 2742
|
| 11. |
VOE4881216
|
[0001] |
Needle bearing
|
|
| 12. |
VOE4873075
|
[0001] |
Thrust washer
|
|
| 13. |
VOE184188
|
[0001] |
Ball bearing
|
|
| 14. |
VOE13949735
|
[0001] |
O-ring
|
|
| |
VOE4871652
|
[0001] |
Axle shaft
|
SER NO - 2742
|
| 15. |
VOE11036154
|
[0001] |
Ring retainer
|
|
| 16. |
VOE4880627
|
[0001] |
Sealing ring
|
|
| 17. |
VOE943142
|
[0001] |
Sealing ring
|
|
| 18. |
VOE11036169
|
[0001] |
Companion flange
|
|
| 19. |
VOE382015
|
[0001] |
Dust cover
|
|
| 20. |
VOE925071
|
[0001] |
O-ring
|
|
| 21. |
VOE382779
|
[0001] |
Lock washer
|
ALT 383992
|
| 22. |
VOE914480
|
[0001] |
Snap ring
|
|
| 23. |
VOE4716226
|
[0001] |
Nut
|
|
| 24. |
VOE4873044
|
[0001] |
Oil pipe
|
SER NO 2743 -
|
| 2. |
VOE11036045
|
[0001] |
Shaft
|
SER NO 2743 -
|
| |
VOE4719530
|
[0001] |
Oil pipe
|
SER NO - 2742
|
| 25. |
VOE944123
|
[0001] |
O-ring
|
|
| 26. |
VOE13970971
|
[0008] |
Hexagon screw
|
|
| 27. |
VOE940280
|
[0008] |
Spring washer
|
|
| 28. |
VOE11036156
|
[0001] |
Thrust washer
|
|
| 29. |
VOE967796
|
[0001] |
Snap ring
|
|
| 30. |
VOE184347
|
[0001] |
Thrust needle roller assy
|
|
| 31. |
VOE13969023
|
[0001] |
Snap ring
|
|
| |
VOE4719539
|
[0001] |
Differential housing
|
SER NO - 2742
|
| |
VOE4871666
|
[0001] |
Shaft
|
SER NO - 2742
|
| |
VOE4871619
|
[0001] |
Differential housing
|
SER NO 2743 -
|
