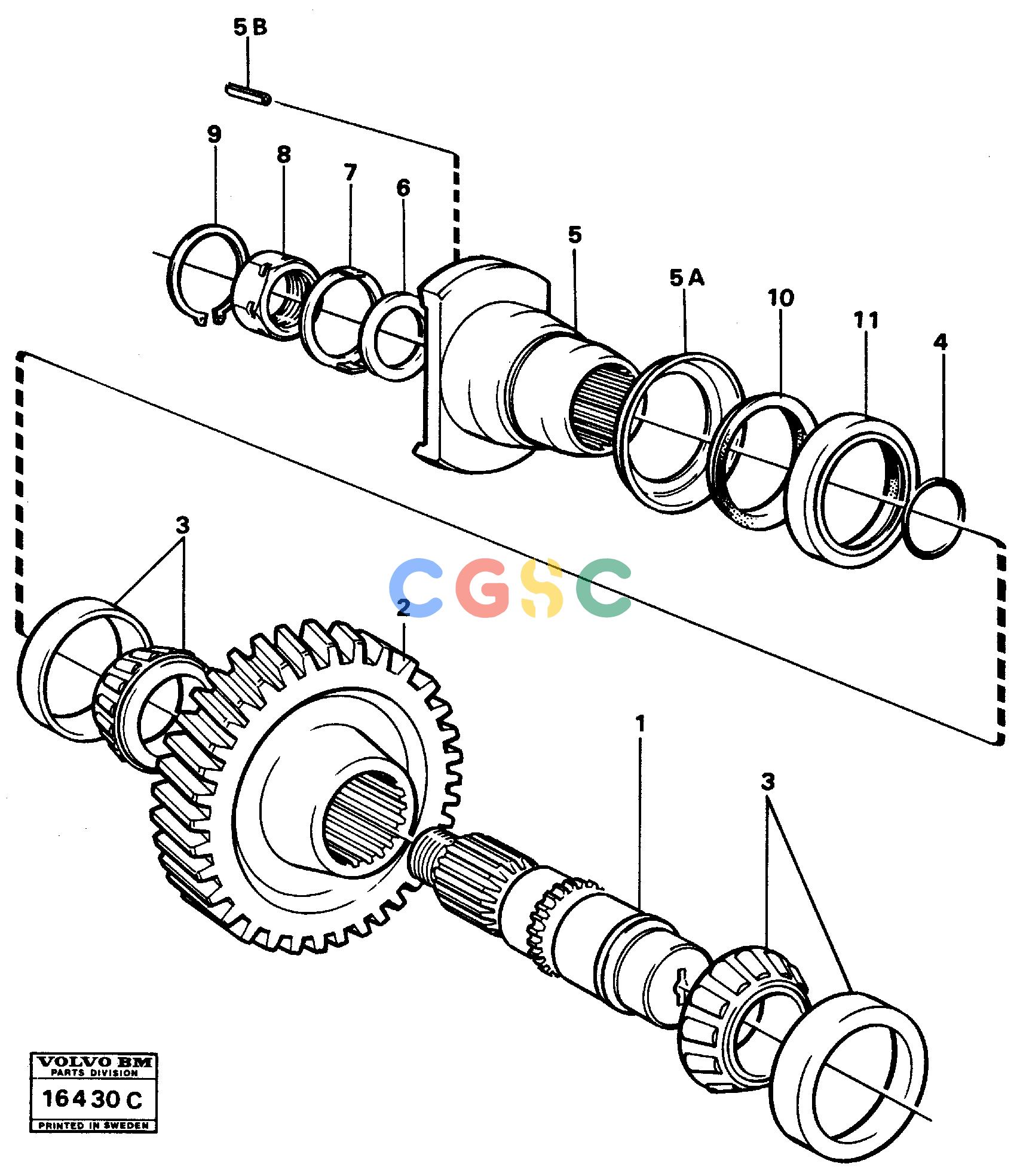

沃尔沃零件查询A25 VOLVO BM Lower shaftVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
874 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE11036414
|
[1] |
Companion flange
|
|
| 5A. |
VOE382015
|
[1] |
Dust cover
|
|
| 5B. |
VOE951952
|
[1] |
Spring pin
|
|
| 6. |
VOE4717222
|
[1] |
Washer
|
|
| 7. |
VOE4717221
|
[1] |
Lock washer
|
|
| 1. |
VOE4719053
|
[1] |
Shaft
|
|
| 8. |
VOE11036726
|
[1] |
Nut
|
|
| 9. |
VOE914478
|
[1] |
Snap ring
|
|
| 10. |
VOE943142
|
[1] |
Sealing ring
|
|
| 11. |
VOE4880627
|
[1] |
Sealing ring
|
|
| 2. |
VOE4719773
|
[1] |
Gear
|
|
| 3. |
VOE183837
|
[2] |
Roller bearing
|
|
| 4. |
VOE925071
|
[1] |
O-ring
|
|
