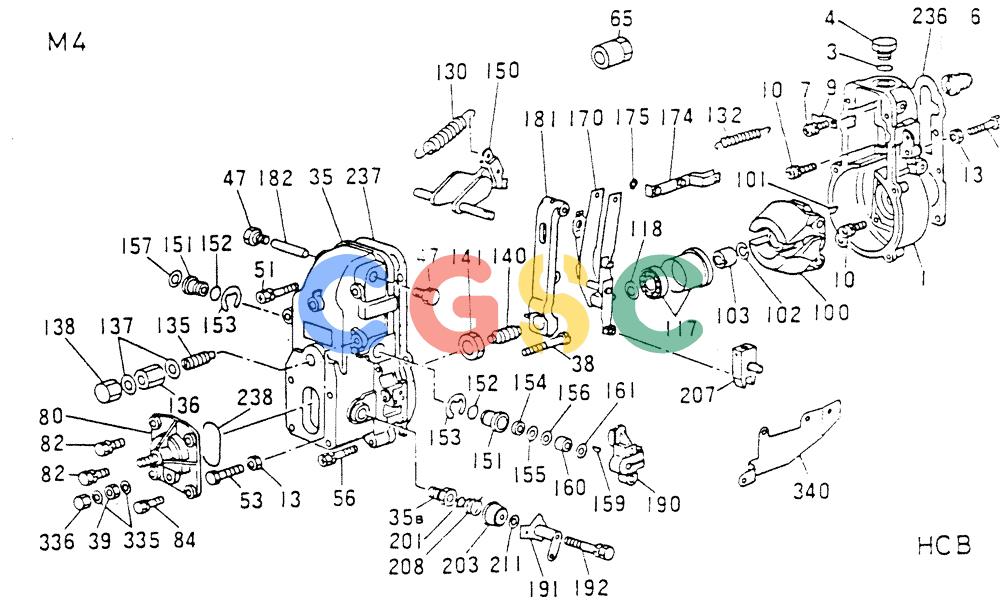

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (03-009) - GOVERNOR (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
362 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-340. | VAME032820 | [1] | GOVERNOR ASSY RSV TYPE | |
| 1. | VAME704632 | [1] | H0USING.GOV | |
| 3. | VAME705361 | [1] | O-RING | KOB |
| 4. | VAME704666 | [1] | PLUG | KOB |
| 6. | VAME704502 | [1] | ACTUATOR | KOBADAPTER |
| 7. | VAME705224 | [1] | BOLT | KOB Superseded by part number: VA0200181840 |
| 9. | VAME704654 | [1] | PLATE | |
| 10. | VAME705225 | [6] | BOLT | |
| 12. | VAME704504 | [1] | SCREW | |
| 13. | VAME704505 | [2] | SCREWDRIVER | KOBNUT,LOCK |
| 35. | VAME704801 | [1] | COVER | KOBGOV |
| 35B. | VAME704658 | [1] | BUSHING | KOB |
| 36. | VAME704715 | [1] | SCREW | |
| 39. | VAME705227 | [1] | NUT | |
| 47. | VAME704568 | [2] | PLUG | KOB |
| 51. | VAME705321 | [1] | BOLT | KOB Superseded by part number: VA0201065040 |
| 53. | VAME704548 | [1] | SCREW | |
| 56. | VAME705296 | [4] | BOLT | KOB |
| 65. | VAME704513 | [1] | CAP | |
| 80. | VAME716098 | [1] | COVER | |
| 82. | VAME717714 | [2] | BOLT | KOB Superseded by part number: VA0200061640 |
| 84. | VAME705232 | [2] | BOLT | KOB Superseded by part number: VA0290206210 |
| 100. | VAME704945 | [1] | FLYWHEEL | KOBASSY Superseded by part number: VA1541010020 |
| 101. | VAME705233 | [1] | KEY | KOBWOODRUFF Superseded by part number: VA0258031610 |
| 102. | VAME705234 | [1] | WASHER | KOBSPG |
| 103. | VAME705325 | [1] | NUT | KOB |
| 117. | VAME704728 | [1] | SLEEVE ASSY | |
| 118. | VAME705236 | [1] | SHIM | KOBT = 0.2 |
| 118. | VAME705237 | [1] | SHIM | KOBT = 0.3 |
| 118. | VAME705238 | [1] | SHIM | KOBT = 0.4 |
| 118. | VAME705239 | [1] | SHIM | KOBT = 1.0 |
| 118. | VAME717875 | [1] | SHIM | KOBT = 0.5 |
| 118. | VAME717876 | [1] | SHIM | KOBT = 1.5 |
| 130. | VAME716089 | [1] | SPRING GOV | SPRING GOV |
| 132. | VAME704748 | [1] | SPRING | KOBSTART Superseded by part number: VA1541540800 |
| 135. | VAME704983 | [1] | CAP | KOBCAPSULE,SPG |
| 136. | VAME704669 | [1] | NUT | KOB |
| 137. | VAME705218 | [2] | GASKET | KOB Superseded by part number: VA0265121540, 77270060 |
| 138. | VAME704540 | [1] | NUT | KOBCAP Superseded by part number: VA1541591200 |
| 140. | VAME704731 | [1] | CAPSULE, SPG | |
| 141. | VAME705339 | [1] | NUT | |
| 150. | VAME704734 | [1] | LEVER | KOB |
| 151. | VAME704981 | [2] | BUSHING | KOB Superseded by part number: VAME755248 |
| 152. | VAME705340 | [2] | O-RING | KOB |
| 153. | VAME705381 | [1] | SNAP RING | KOB |
| 154. | VAME705333 | [1] | OIL SEAL | KOB |
| 155. | VAME705334 | [1] | SHIM | KOB Superseded by part number: VA1394110000 |
| 156. | VAME705384 | [1] | GASKET | KOBSHIM T = 0.3 |
| 157. | VAME705338 | [1] | PLUG | KOB |
| 159. | VAME705248 | [1] | KEY | KOBWOODRUFF Superseded by part number: VA0258031310 |
| 160. | VAME704924 | [1] | COLLAR | KOB |
| 161. | VAME704608 | [1] | WASHER | KOB Superseded by part number: VA1542060200 |
| 170. | VAME704738 | [1] | GUIDE LEVER ASSY | |
| 174. | VAME704674 | [1] | LINK | |
| 175. | VAME705249 | [1] | SNAP RING | KOB |
| 181. | VAME704753 | [1] | LEVER,TENSION | |
| 182. | VAME704676 | [1] | PIN | KOBTENSION LEVER Superseded by part number: VA1542370100 |
| 190. | VAME704740 | [1] | LEVER | KOBCONTROL |
| 191. | VAME704910 | [1] | LEVER | KOB |
| 192. | VAME716700 | [1] | BOLT | KOB |
| 201. | VAME705385 | [1] | PISTON RING SET | KOB Superseded by part number: VA0296310030 |
| 203. | VAME704681 | [1] | CAP | KOB Superseded by part number: VA1543220100 |
| 207. | VAME704682 | [1] | LEVER ASSY | |
| 208. | VAME717017 | [1] | SPRING | KOB |
| 211. | VAME717813 | [1] | SHIM | KOBT=0.20 |
| 211. | VAME717814 | [1] | SHIM T=0.25 | |
| 211. | VAME717815 | [1] | SHIM T=0.30 | |
| 211. | VAME717816 | [1] | SHIM T=0.35 | |
| 211. | VAME717817 | [1] | SHIM T=0.40 | |
| 211. | VAME717779 | [1] | SHIM T=0.50 | |
| 236. | VAME704542 | [1] | GASKET | KOB Superseded by part number: VA1543507700 |
| 237. | VAME704618 | [1] | GASKET | KOB Superseded by part number: VA1543900300 |
| 238. | VAME705342 | [1] | O-RING | KOB Superseded by part number: VA0296352020 |
| 335. | VAME717738 | [2] | GASKET | KOB Superseded by part number: VA0265061040 |
| 336. | VAME704757 | [1] | NUT | KOBCAP |
| 340. | VAME704544 | [1] | BRACKET | |
