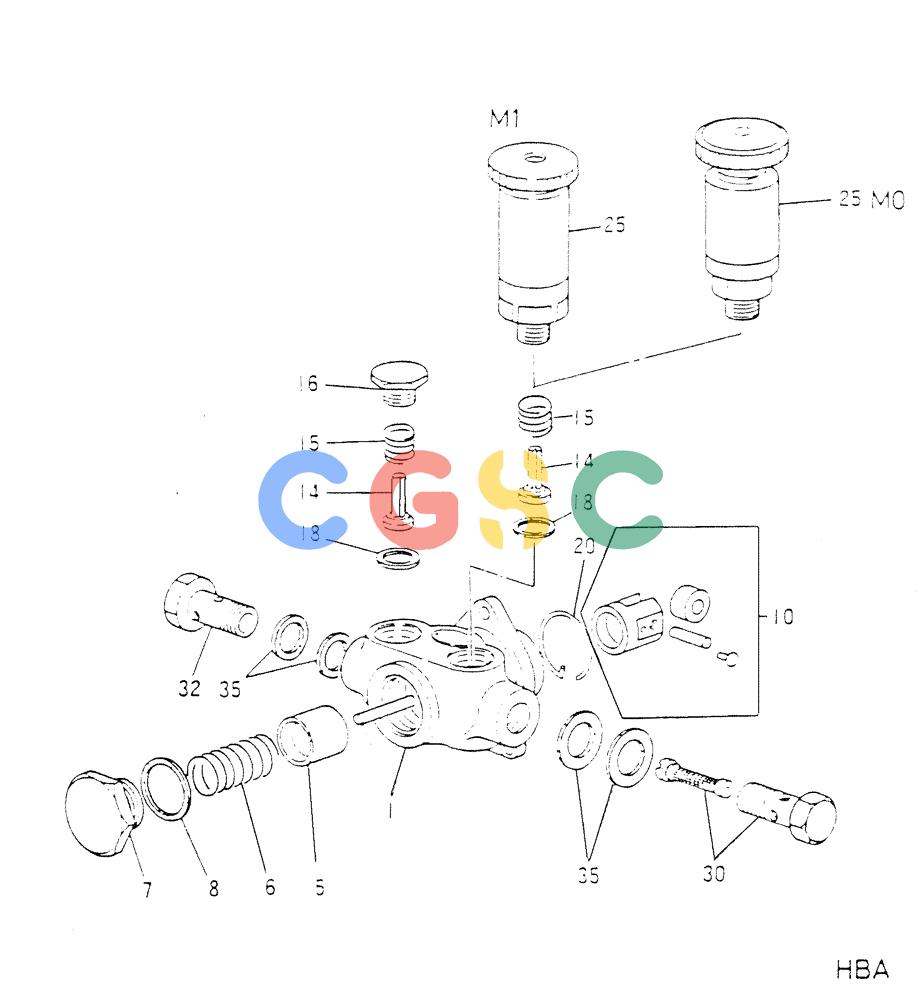

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (03-012) - FUEL FEED PUMP (INNER PARTS) Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
300 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-35. | VAME717109 | [1] | PUMP | KOBFUEL FEED ASSY KE TYPE,FOR M0 ONLY |
| 1. | VAME705097 | [1] | HOUSING,FEED PUMP | |
| 5. | VAME705020 | [1] | PISTON | KOB Superseded by part number: VA1521001120 |
| 6. | VAME705098 | [1] | COTTER PIN | KOBPISTON |
| 7. | VAME705022 | [1] | PLUG | KOBPISTON CHAMBER |
| 8. | VAME705275 | [1] | GASKET | KOB Superseded by part number: VA0293326030 |
| 10. | VAME705099 | [1] | TAPPET | KOBASSY |
| 14. | VAME705027 | [2] | VALVE | KOBCHECK Superseded by part number: VA1521150200, 77270043 |
| 15. | VAME705028 | [2] | SPRING | KOBCHECK/V Superseded by part number: 77270044, VA1521160200 |
| 16. | VAME705029 | [1] | PLUG | KOBCHECK/V |
| 18. | VAME705276 | [2] | PACKING | KOBGASKET Superseded by part number: VA0293316030, 77270063 |
| 20. | VAME705030 | [1] | RING | KOBCHECK/V |
| 25. | VAME705031 | [1] | ENGINE OIL PUMP | KOBPRIMING,FOR M0 ONLY Superseded by part number: VA1522001120 |
| 25. | VAME717630 | [1] | LUBE PUMP | KOBPRIMING,FOR M1 ONLY Superseded by part number: VA1522005620 |
| 30. | VAME717659 | [1] | BOLT | KOBPIPE JOINT W/FILTER Superseded by part number: VA1523006920 |
| 32. | VAME717882 | [1] | BOLT | KOBPIPE JOINT Superseded by part number: VA1398140900 |
| 35. | VA3126106400 | [4] | GASKET | KOB Superseded by part number: VA0293414130 |
