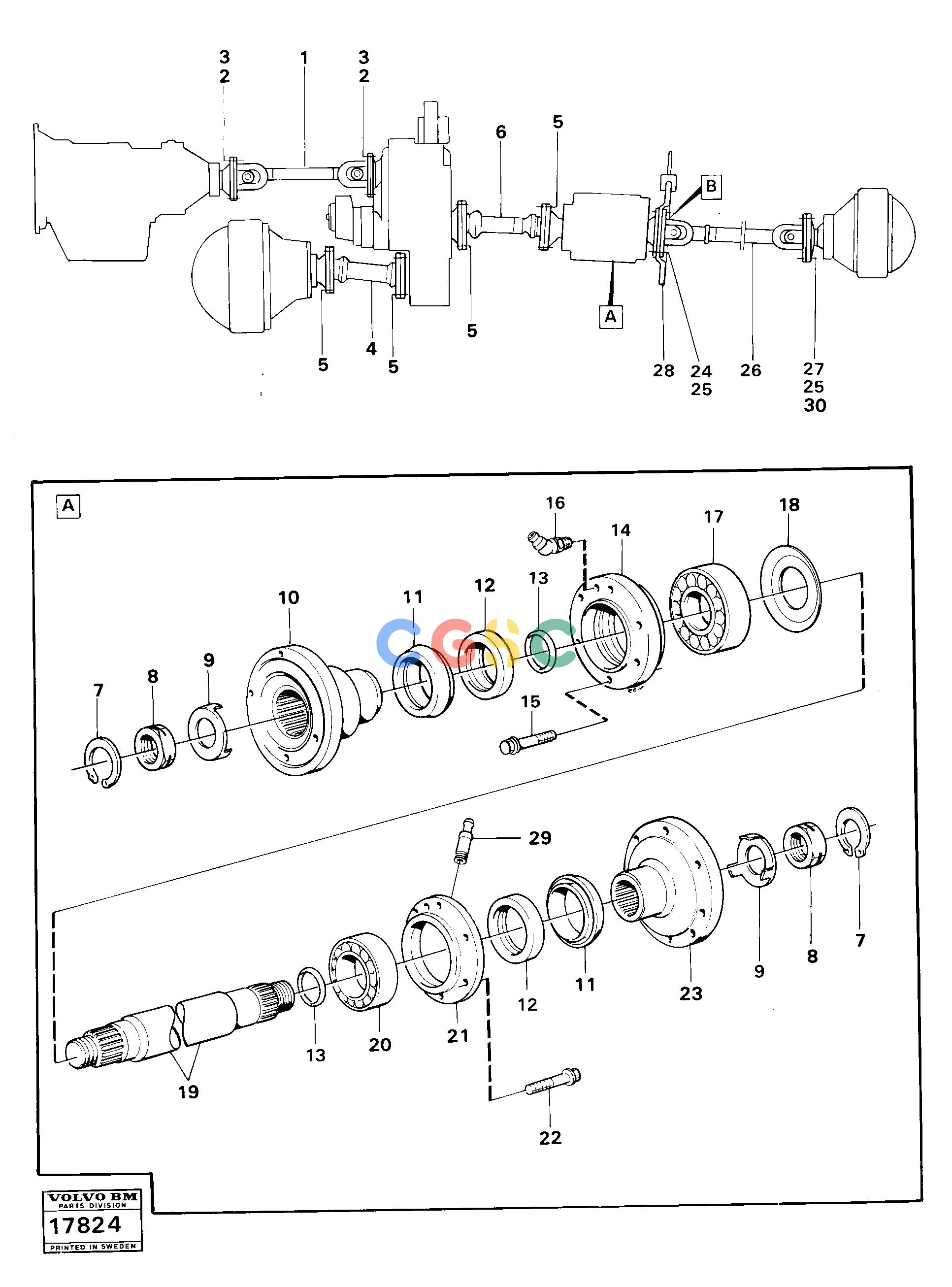

沃尔沃零件查询A25 VOLVO BM Power shaftsVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
197 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE945989
|
[0012] |
Lock nut
|
|
| 4. |
VOE4881670
|
[0001] |
Propeller shaft
|
|
| 5. |
VOE948870
|
[0016] |
Hexagon screw
|
|
| 6. |
VOE4881671
|
[0001] |
Propeller shaft
|
|
| 7. |
VOE914480
|
[0002] |
Snap ring
|
|
| 1. |
VOE4881690
|
[0001] |
Propeller shaft
|
|
| 8. |
VOE4716226
|
[0002] |
Nut
|
|
| 9. |
VOE382779
|
[0002] |
Lock washer
|
|
| 10. |
VOE11036169
|
[0001] |
Companion flange
|
|
| |
VOE382015
|
[0001] |
Dust cover
|
|
| 11. |
VOE943142
|
[2] |
Sealing ring
|
|
| 12. |
VOE959043
|
[2] |
Sealing ring
|
|
| 13. |
VOE925071
|
[2] |
O-ring
|
|
| 14. |
VOE4940182
|
[1] |
Cover
|
|
| 15. |
VOE60113098
|
[6] |
Flange screw
|
|
| 16. |
VOE914169
|
[1] |
Lubricating nipple
|
|
| |
VOE1651030
|
[0002] |
Companion flange
|
|
| 17. |
VOE7011039
|
[1] |
Ball bearing
|
|
| 18. |
VOE4821457
|
[1] |
Protecting plate
|
|
| 19. |
VOE4821378
|
[1] |
Countershaft
|
|
| 20. |
VOE183228
|
[1] |
Ball bearing
|
|
| 21. |
VOE4940183
|
[1] |
Cover
|
|
| 22. |
VOE13945444
|
[0006] |
Screw
|
|
| 23. |
VOE4940173
|
[1] |
Companion flange
|
|
| |
VOE382015
|
[1] |
Dust cover
|
|
| 24. |
VOE4940371
|
[12] |
Press screw
|
6 X 4, 4 X 4
|
| |
VOE4940371
|
[16] |
Press screw
|
6 X 6
|
| |
VOE1651032
|
[2] |
Spider
|
|
| 25. |
VOE945676
|
[12] |
Lock nut
|
6 X 4, 4 X 4
|
| |
VOE1651033
|
[8] |
Lock washer
|
|
| |
VOE13949734
|
[48] |
Hexagon screw
|
|
| |
VOE945676
|
[16] |
Lock nut
|
6 X 6
|
| |
VOE1524542
|
[2] |
Lubricating nipple
|
|
| 26. |
VOE4940174
|
[1] |
Propeller shaft
|
6X4
|
| |
VOE6212890
|
[1] |
Companion flange
|
|
| |
VOE1651032
|
[1] |
Spider
|
|
| |
VOE1651033
|
[4] |
Lock washer
|
|
| |
VOE13949734
|
[12] |
Hexagon screw
|
|
| |
VOE1524542
|
[1] |
Lubricating nipple
|
|
| |
|
[0001] |
Propeller shaft
|
4X4
|
| |
|
|
None
|
|
| |
VOE4941234
|
[0001] |
Propeller shaft
|
6X6
|
| |
|
|
None
|
|
| 27. |
VOE4864356
|
[0012] |
Screw
|
6 X 4, 4 X 4
|
| 2. |
VOE945997
|
[0012] |
Hexagon screw
|
|
| |
VOE4864356
|
[0016] |
Screw
|
6 X 6
|
| 28. |
|
[0001] |
Brake
|
SEE GROUP 55
|
| 29. |
VOE192554
|
[0001] |
Lubricating nipple
|
|
| 30. |
VOE13971086
|
[0016] |
Lock nut
|
6X6
|
