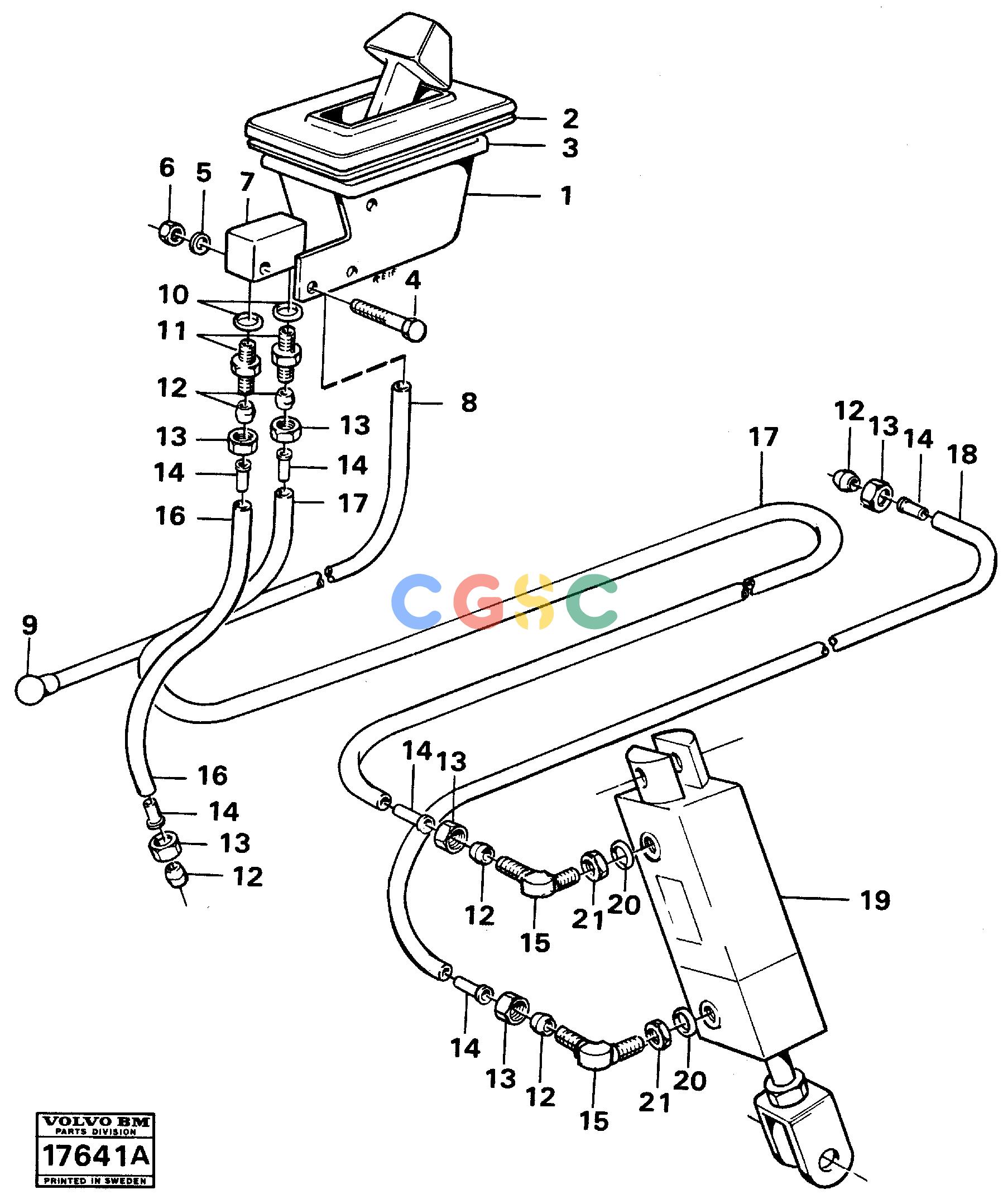

沃尔沃零件查询A25 VOLVO BM Control for high and low gearVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
309 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE13941904
|
[0002] |
Washer
|
|
| 6. |
VOE955779
|
[0002] |
Hexagon nut
|
|
| 7. |
VOE11062302
|
[0001] |
Direction valve
|
|
| 8. |
VOE13949120
|
[REQ] |
Plastic pipe
|
L = 1000
|
| 9. |
VOE267224
|
[0001] |
Plug
|
|
| 1. |
VOE1526537
|
[0001] |
Control
|
|
| 10. |
VOE955980
|
[0002] |
O-ring
|
|
| 11. |
VOE4940755
|
[0002] |
Nipple
|
|
| 12. |
VOE954364
|
[REQ] |
Ferrule
|
|
| 13. |
VOE954356
|
[REQ] |
Fitting nut
|
|
| 14. |
VOE944717
|
[REQ] |
Sleeve
|
|
| 15. |
VOE13945915
|
[0002] |
Elbow nipple
|
|
| 16. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=150
|
| 2. |
|
[0001] |
Shim
|
|
| 17. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=2850
|
| 18. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 1000
|
| 19. |
VOE4881065
|
[0001] |
Cylinder
|
SEE GROUP 42
|
| 20. |
VOE944364
|
[0002] |
O-ring
|
|
| 21. |
VOE13945892
|
[0002] |
Nut
|
|
| 3. |
VOE13945294
|
[0001] |
O-ring
|
|
| 4. |
VOE956066
|
[0002] |
Cros recessed
|
|
