神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K907 & MD180LC (1/87-12/06) (03-018) - FUEL INJECTION NOZZLE Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
906 次

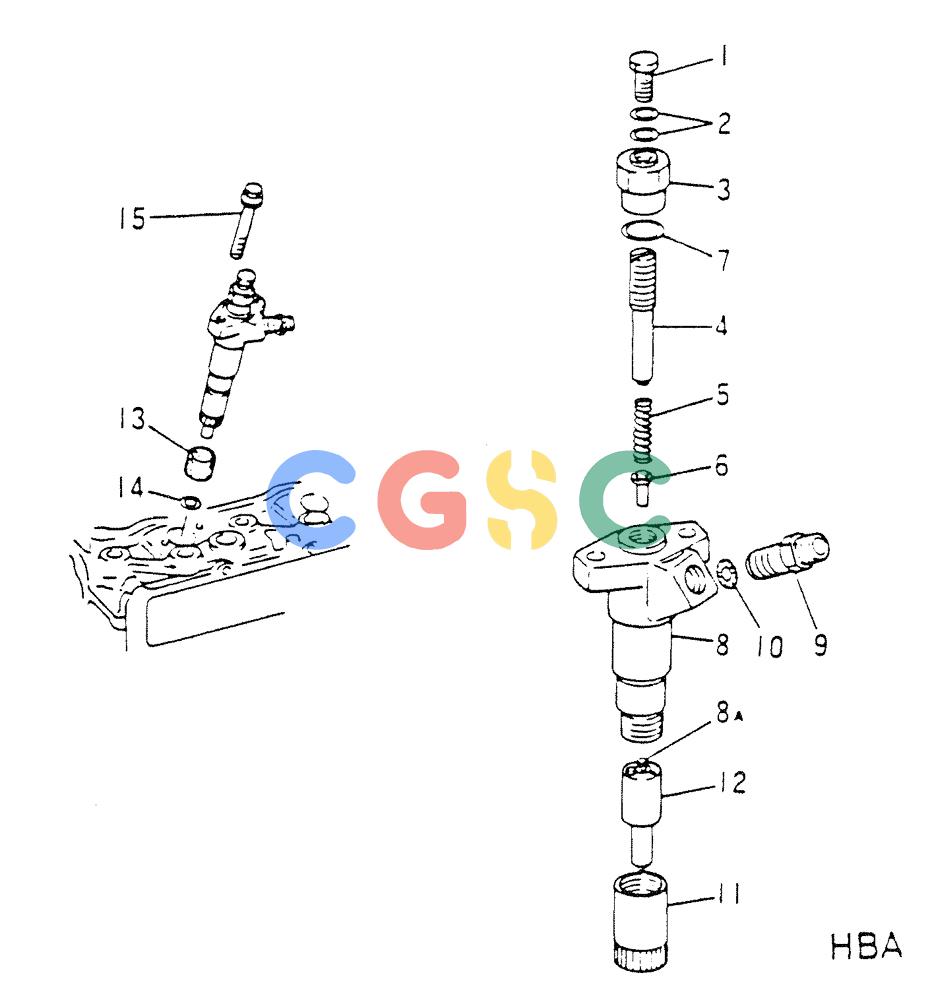

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-12. | VAME070253 | [6] | NOZZLE | KOBNOZZLE ASSY 180KG/CM2,FOR M2 ONLY |
| 1-12. | VAME047128 | [6] | NOZZLE ASSY 220KG/CM2,FOR M6 ONLY | |
| 1-11. | VAME705437 | [6] | NOZZLE HOLDER ASSY | |
| 1. | VAME705400 | [6] | SCREW | KOBBOLT,EYE Superseded by part number: 77270082, 134650A1 |
| 2. | VAME705389 | [12] | PACKING | KOBGASKET Superseded by part number: 134686A1 |
| 3. | VAME705403 | [6] | NUT | KOBNUT,CAP |
| 4. | VAME705408 | [6] | SCREW | KOBSCREW,ADJUSTING |
| 5. | VAME705409 | [6] | SPRING | KOBSPRING,NOZZLE Superseded by part number: 133275A1 |
| 6. | VAME705406 | [6] | PUSH ROD | KOBROD,PUSH Superseded by part number: 134708A1 |
| 7. | VAME705391 | [6] | GASKET | KOBGASKET Superseded by part number: 134652A1 |
| 8. | NSS | [6] | NOT SOLD SEPARAT | CONBODY,NOZZLE HOLDER |
| 8A. | VAME705407 | [12] | PIN | KOBPIN Superseded by part number: 77270085, 134711A1 |
| 9. | VAME705426 | [6] | HYD CONNECTOR | KOBCONNECTOR |
| 10. | VAME705425 | [6] | GASKET | KOBGASKET Superseded by part number: VA1506022700 |
| 11. | VAME705402 | [6] | NUT | KOBNUT,RETAINING |
| 12. | VAME705438 | [6] | NOZZLE | KOBTIP,NOZZLE 0.32-4,FOR M2 ONLY |
| 12. | VAME047129 | [6] | TIP | KOBTIP,NOZZLE 0.31-5,FOR M6 ONLY |
| 13. | VAME036562 | [6] | DUST CAP | KOBSEAL,DUST |
| 14. | VA3096102300 | [6] | O-RING | KOBGASKET,NOZZLE TIP |
| 15. | VAMH000656 | [12] | SET SCREW | KOBBOLT,NOZZLE HOLDER |
