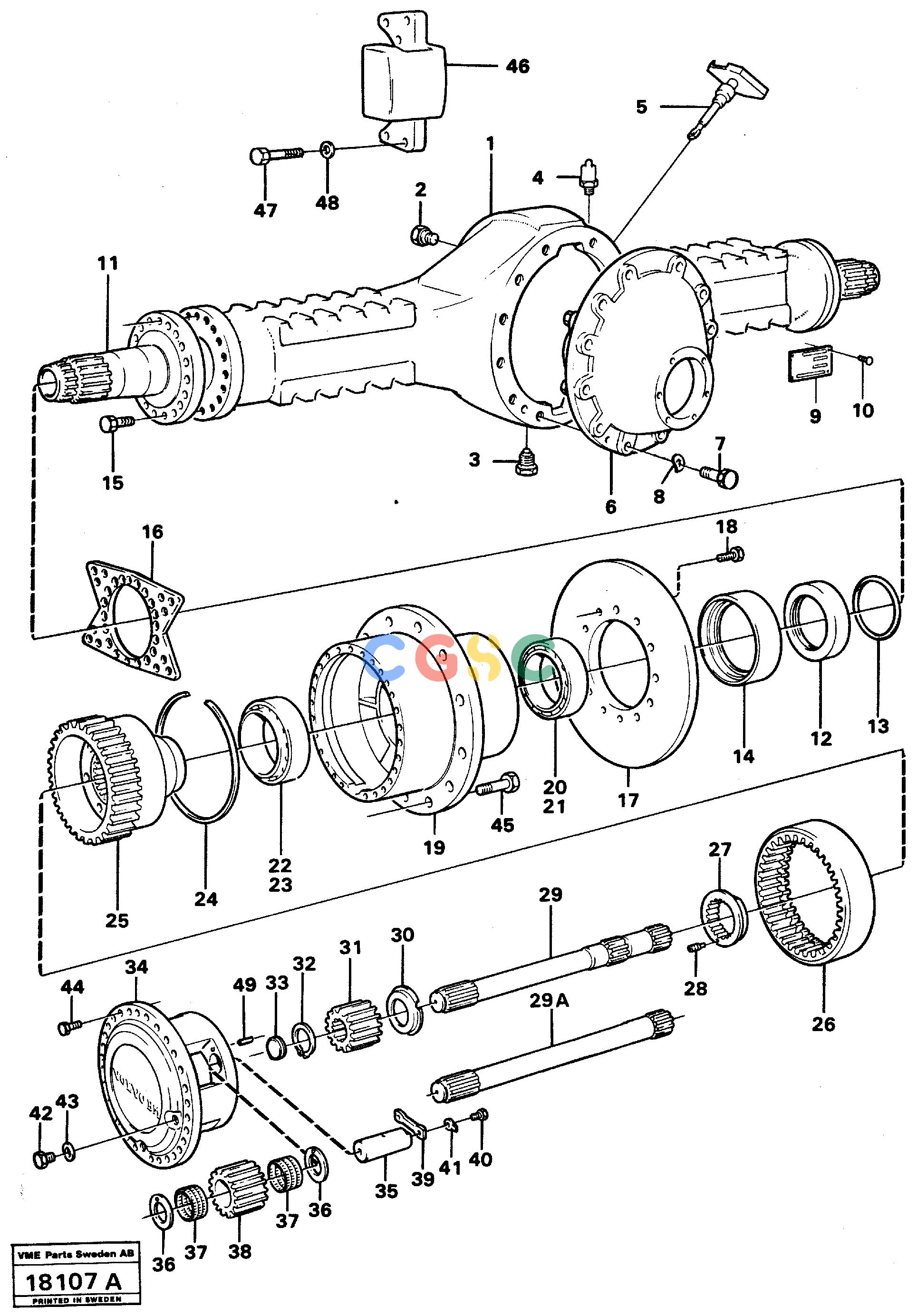

沃尔沃零件查询A25 VOLVO BM Drive shaft 4x4 rear ah71 b Prod Nr 23555VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
879 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE11102187
|
[0001] |
Magnetic plug
|
|
| 34. |
VOE11103195
|
[0002] |
Planet carrier
|
|
| 35. |
VOE4717385
|
[0006] |
Planet shaft
|
|
| 36. |
VOE4870205
|
[0012] |
Thrust washer
|
|
| |
VOE4870207
|
[0012] |
Thrust washer
|
|
| 37. |
VOE4786810
|
[0006] |
Needle bearing
|
|
| 38. |
VOE11102299
|
[0006] |
Planet gear
|
|
| 39. |
VOE4717618
|
[0006] |
Striker plate
|
|
| 40. |
VOE970945
|
[0012] |
Hexagon screw
|
|
| 41. |
VOE941908
|
[0012] |
Spring washer
|
|
| 42. |
VOE11034156
|
[0004] |
Plug
|
|
| |
VOE958228
|
[0001] |
O-ring
|
|
| 43. |
VOE958228
|
[0004] |
O-ring
|
|
| 44. |
VOE13970997
|
[0078] |
Hexagon screw
|
|
| 45. |
VOE11102584
|
[0036] |
Wheel stud
|
|
| 46. |
VOE4881595
|
[0004] |
Brake
|
SEE GROUP 51
|
| 47. |
VOE4717660
|
[0024] |
Screw
|
|
| 48. |
VOE941914
|
[0024] |
Spring washer
|
|
| 49. |
VOE951974
|
[0012] |
Spring pin
|
|
| 4. |
VOE384555
|
[0001] |
Air vent valve
|
|
| 5. |
|
[0001] |
Differential lock
|
|
| 6. |
VOE1523038
|
[0001] |
Final drive
|
AX - 1013
|
| |
|
[0001] |
Drive shaft
|
|
| |
|
|
None
|
|
| |
VOE1523508
|
[0001] |
Final drive
|
AX 1014 -
|
| |
|
|
None
|
|
| 7. |
VOE926326
|
[0004] |
Screw
|
|
| |
VOE930835
|
[0008] |
Screw
|
|
| 8. |
VOE941912
|
[0012] |
Spring washer
|
|
| 9. |
|
[0001] |
Sign
|
|
| 10. |
VOE950891
|
[0004] |
Drive screw
|
|
| 11. |
VOE11034015
|
[0002] |
Spindle
|
|
| |
VOE13948511
|
[0002] |
O-ring
|
|
| 1. |
VOE11035465
|
[0001] |
Axle casing
|
|
| 12. |
VOE11102643
|
[0002] |
Spacer ring
|
|
| 13. |
VOE13960251
|
[0002] |
O-ring
|
|
| 14. |
VOE4717705
|
[0002] |
Sealing ring
|
AX - 5663
|
| |
VOE11034214
|
[0002] |
Sealing ring
|
AX 5664 -
|
| 15. |
VOE13947695
|
[0044] |
Screw
|
|
| 16. |
VOE4717648
|
[0002] |
Anchorage
|
|
| 17. |
VOE11034094
|
[0002] |
Brake disc
|
AX - 5663
|
| |
VOE17232908
|
[0002] |
Brake disc
|
AX 5664 -
|
| 18. |
VOE13947373
|
[0040] |
Screw
|
AX - 5663
|
| |
VOE967691
|
[0024] |
Hex. socket screw
|
AX 5664 -
|
| 2. |
VOE11034156
|
[0001] |
Plug
|
|
| 19. |
VOE4870369
|
[0002] |
Hub
|
AX - 5663
|
| |
VOE11034222
|
[0002] |
Hub
|
AX 5664 -
|
| 20. |
VOE183747
|
[0002] |
Cup
|
|
| 21. |
VOE184004
|
[0002] |
Roller bearing
|
|
| 22. |
VOE184007
|
[0002] |
Roller bearing
|
|
| 23. |
VOE184007
|
[0002] |
Roller bearing
|
|
| 24. |
VOE4717268
|
[0002] |
Snap ring
|
|
| 25. |
VOE4717259
|
[0002] |
Gear ring holder
|
|
| |
VOE11102694
|
[0002] |
Lock plate
|
|
| |
VOE4717665
|
[0002] |
Striker plate
|
|
| |
VOE958228
|
[0001] |
O-ring
|
|
| |
VOE13955294
|
[0002] |
Screw
|
|
| 26. |
VOE4717261
|
[0002] |
Gear ring
|
|
| 27. |
VOE11102373
|
[0002] |
Nut
|
|
| 28. |
VOE930815
|
[0002] |
Lock screw
|
|
| 29. |
VOE4870221
|
[0001] |
Axle shaft
|
|
| 29A. |
VOE4870184
|
[0001] |
Axle shaft
|
|
| 30. |
VOE4717269
|
[0002] |
Wear washer
|
|
| 31. |
VOE11102300
|
[0002] |
Sun gear
|
|
| 32. |
VOE7044381
|
[0002] |
Snap ring
|
|
| 33. |
VOE11102910
|
[0002] |
Wear ring
|
|
