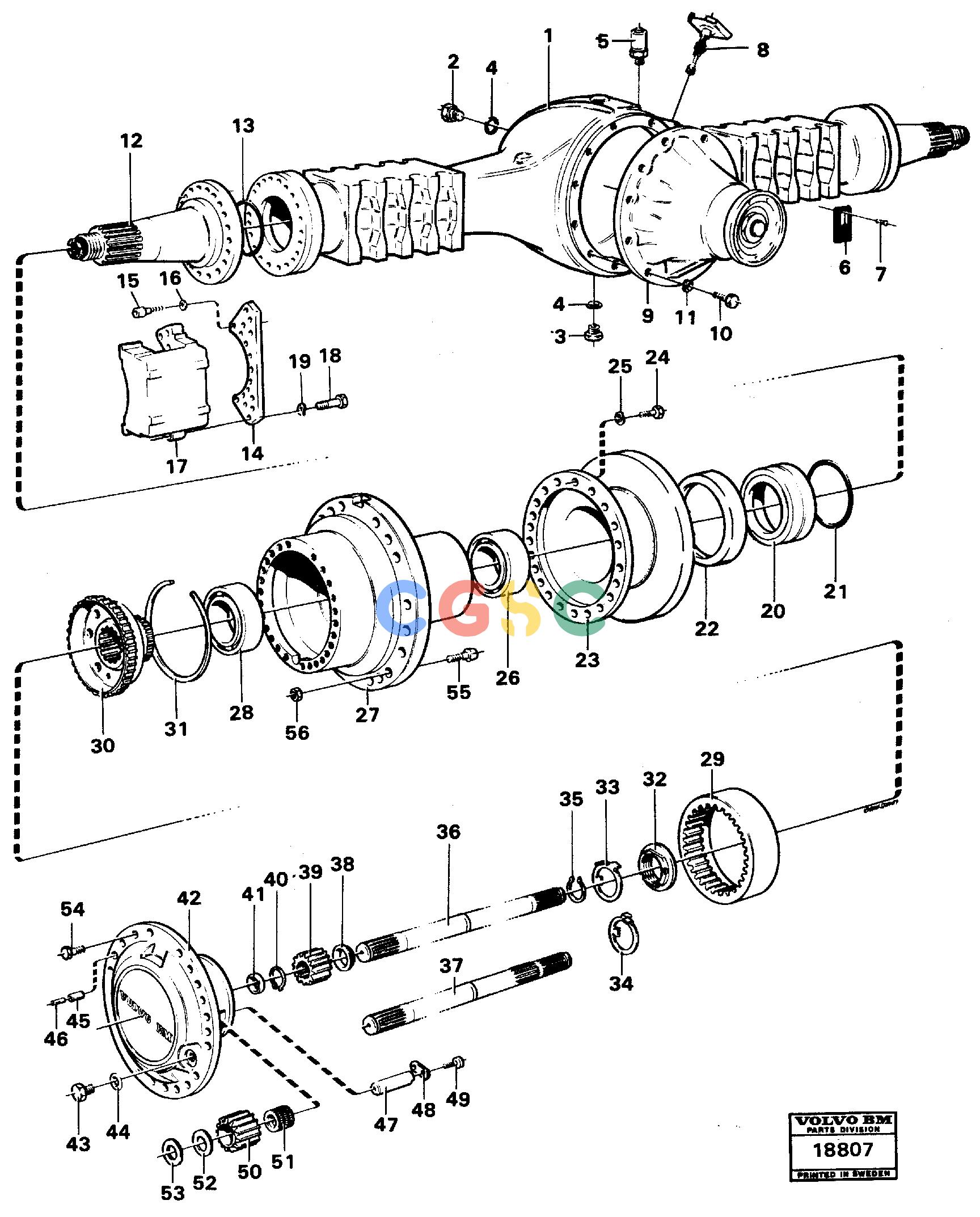

沃尔沃零件查询A25 VOLVO BM Planet shaft 6x6 rear ah 54 d Prod Nr 23538VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
843 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE958228
|
[0002] |
O-ring
|
|
| 42. |
VOE11102676
|
[0002] |
Planet carrier
|
|
| 43. |
VOE11034156
|
[0004] |
Plug
|
|
| 44. |
VOE958228
|
[0004] |
O-ring
|
|
| 45. |
VOE952031
|
[0008] |
Spring pin
|
D=14
|
| 46. |
VOE951990
|
[0008] |
Spring pin
|
D=8
|
| 47. |
VOE11034888
|
[0006] |
Planetary Gear Shaft
|
|
| 48. |
VOE4870445
|
[0006] |
Striker plate
|
|
| 49. |
VOE4870448
|
[0012] |
Screw
|
|
| 50. |
VOE11102295
|
[0006] |
Planet gear
|
|
| 51. |
VOE4881319
|
[0006] |
Bearing kit
|
|
| 5. |
VOE384555
|
[0001] |
Air vent valve
|
|
| 52. |
VOE4870486
|
[0012] |
Thrust washer
|
|
| 53. |
VOE11034147
|
[0012] |
Thrust washer
|
|
| 54. |
VOE13977564
|
[0048] |
Hexagon screw
|
|
| 55. |
VOE4870488
|
[0024] |
Wheel stud
|
|
| 56. |
VOE947972
|
[0024] |
Wheel nut
|
|
| 6. |
|
[0001] |
Sign
|
|
| 7. |
VOE950891
|
[0004] |
Drive screw
|
|
| 8. |
|
[0001] |
Differential lock
|
|
| |
VOE23538
|
|
Planetary Axle
|
|
| 9. |
VOE1523261
|
[0001] |
Final drive
|
|
| 10. |
VOE926326
|
[0004] |
Screw
|
|
| |
VOE930835
|
[0008] |
Screw
|
|
| 11. |
VOE941912
|
[12] |
Spring washer
|
|
| 12. |
VOE11103249
|
[2] |
Spindle
|
|
| |
VOE11103269
|
[2] |
Sealing ring
|
|
| 13. |
VOE980827
|
[2] |
O-ring
|
|
| 14. |
VOE4870321
|
[4] |
Brake anchorage
|
|
| 15. |
VOE14370999
|
[18] |
Allen Hd Screw
|
|
| |
VOE949566
|
[18] |
Hex. socket screw
|
|
| 16. |
VOE941914
|
[36] |
Spring washer
|
|
| 1. |
VOE11035458
|
[0001] |
Axle casing
|
|
| 17. |
VOE4881595
|
[2] |
Brake
|
SEE GROUP 51
|
| 18. |
VOE4717660
|
[24] |
Screw
|
|
| 19. |
VOE941914
|
[24] |
Spring washer
|
|
| 20. |
VOE11102641
|
[2] |
Spacer ring
|
|
| 21. |
VOE13960198
|
[2] |
O-ring
|
|
| 22. |
VOE4881555
|
[2] |
Sealing ring
|
AX - 14915
|
| |
VOE11034102
|
[2] |
Seal
|
AX 14916 -
|
| 23. |
VOE11034093
|
[2] |
Brake disc
|
AX - 14915
|
| |
VOE17232908
|
[0002] |
Brake disc
|
AX 14916 -
|
| 24. |
VOE967691
|
[0024] |
Hex. socket screw
|
|
| 2. |
VOE11034156
|
[0001] |
Plug
|
|
| 25. |
VOE941912
|
[0024] |
Spring washer
|
|
| 26. |
VOE183610
|
[0002] |
Roller bearing
|
|
| |
VOE183610
|
[0002] |
Roller bearing
|
|
| 27. |
VOE4717777
|
[0001] |
Hub
|
AX - 14915
|
| |
VOE11034087
|
[0001] |
Hub
|
AX 14916 -
|
| 28. |
VOE11034842
|
[0002] |
Cup
|
|
| |
VOE17488188
|
[0002] |
Bearing
|
|
| 29. |
VOE17246155
|
[0002] |
Gear ring
|
|
| 30. |
VOE11034005
|
[0002] |
Gear ring holder
|
|
| 31. |
VOE4717022
|
[0002] |
Snap ring
|
|
| 3. |
VOE11102187
|
[0001] |
Magnetic plug
|
|
| 32. |
VOE11102372
|
[0002] |
Nut
|
|
| 33. |
VOE4870178
|
[0002] |
Lock ring
|
ALT.
|
| 34. |
VOE4870179
|
[0002] |
Lock ring
|
ALT.
|
| 35. |
VOE13945505
|
[0002] |
Snap ring
|
|
| 36. |
VOE4870473
|
[0001] |
Axle shaft
|
|
| 37. |
VOE4870472
|
[0001] |
Axle shaft
|
MED DIFF./WITH DIFF.
|
| 38. |
VOE11102909
|
[0002] |
Thrust washer
|
|
| 39. |
VOE11103090
|
[0002] |
Sun gear
|
|
| 40. |
VOE4717033
|
[0002] |
Lock ring
|
|
| 41. |
VOE11102910
|
[0002] |
Wear ring
|
|
