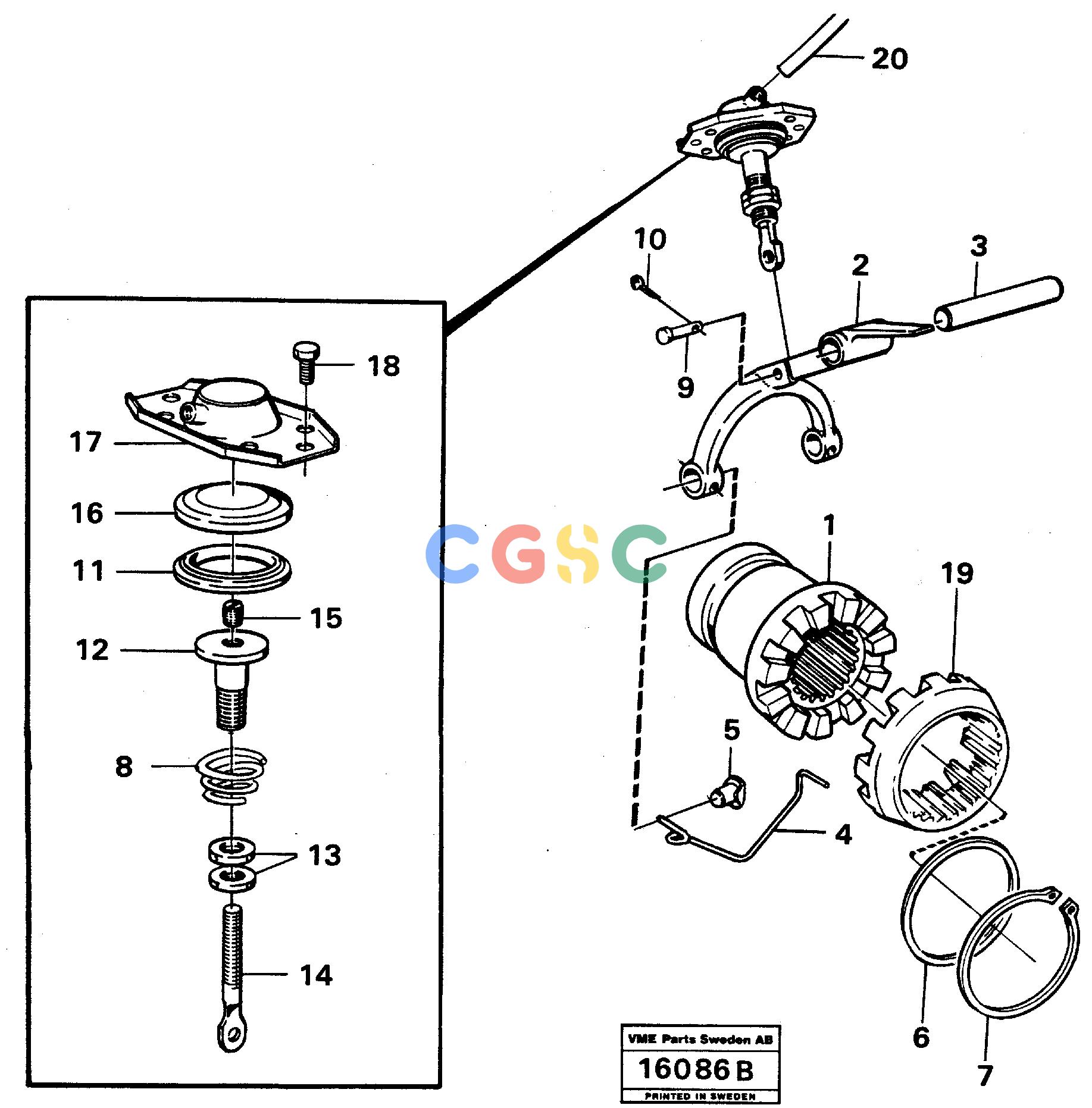

沃尔沃零件查询A25 VOLVO BM Differential lockVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 3. |
VOE384135
|
[0001] |
Selector rail
|
|
| 4. |
VOE1523084
|
[0001] |
Lock brace
|
|
| 5. |
VOE1523087
|
[0002] |
Pin
|
|
| |
|
[0001] |
Differential lock
|
|
| 6. |
VOE1522102
|
[0001] |
Washer
|
|
| 7. |
VOE945506
|
[0001] |
Snap ring
|
|
| 8. |
VOE1523094
|
[0001] |
Return spring
|
|
| 9. |
VOE13964845
|
[0001] |
Clevis pin
|
|
| 10. |
VOE907822
|
[0001] |
Split pin
|
|
| 11. |
VOE383988
|
[0001] |
Diaphragm seat
|
|
| 12. |
VOE383971
|
[0001] |
Diaphragm sleeve
|
|
| 13. |
VOE957018
|
[0002] |
Hexagon nut
|
|
| 1. |
VOE17413387
|
[0001] |
Companion flange
|
|
| 14. |
VOE1522096
|
[0001] |
Link
|
|
| |
VOE4717707
|
[0001] |
Bar
|
FÖR/FOR 23555
|
| 15. |
VOE4869287
|
[0001] |
Screw
|
|
| 16. |
VOE383972
|
[0001] |
Diaphragm
|
|
| 17. |
VOE11034637
|
[0001] |
Cover
|
|
| 18. |
VOE955269
|
[0006] |
Hexagon screw
|
|
| 19. |
VOE1522134
|
[0001] |
Companion flange
|
|
| |
VOE17415797
|
[0001] |
Companion flange
|
FÖR/FOR 23555
|
| 20. |
VOE13945460
|
[0001] |
Plastic pipe
|
TRYCKLUFTREGLAGE /
|
| |
VOE17418511
|
[0001] |
Companion flange
|
FÖR/FOR 23555
|
| 2. |
VOE1523080
|
[0001] |
Selector fork
|
|
