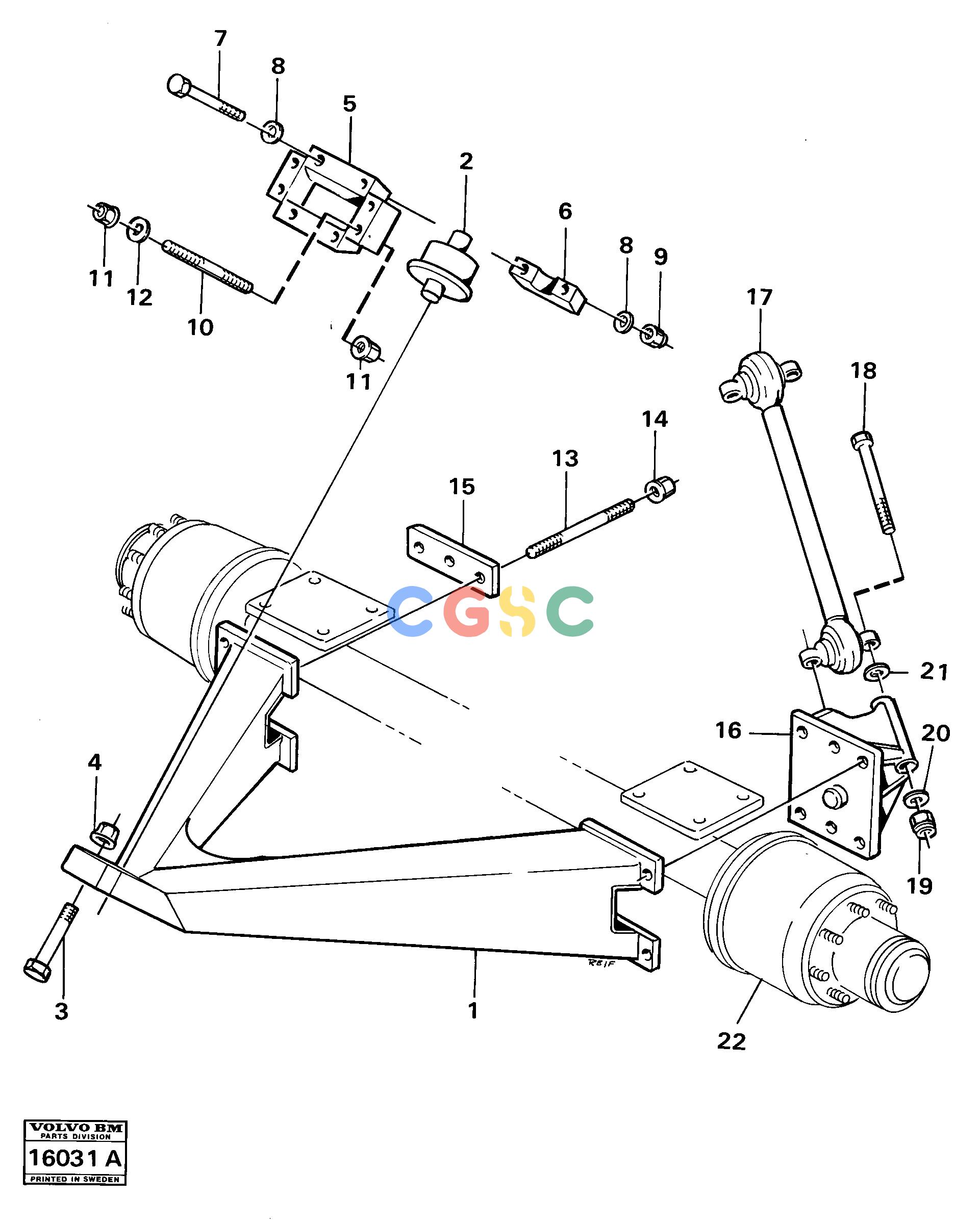

沃尔沃零件查询A25 VOLVO BM Bogie-wheel suspensionVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
833 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE945489
|
[0001] |
Retaining ring
|
|
| 3. |
VOE959249
|
[0004] |
Hex. socket screw
|
SER NO -4096
|
| 4. |
VOE13971098
|
[0004] |
Flange nut
|
|
| |
|
|
None
|
SER NO -4096
|
| 5. |
VOE4737455
|
[0001] |
Anchorage
|
|
| 6. |
VOE4823145
|
[0003] |
Cap
|
|
| 1. |
VOE4965056
|
[0001] |
Stay
|
6X6
|
| 7. |
VOE955377
|
[0004] |
Hexagon screw
|
|
| 8. |
VOE13955900
|
[0008] |
Washer
|
|
| 9. |
VOE963110
|
[0004] |
Lock nut
|
|
| 10. |
VOE13955382
|
[0004] |
Screw
|
|
| 11. |
VOE963110
|
[0004] |
Lock nut
|
|
| 12. |
VOE13955900
|
[0004] |
Washer
|
|
| 13. |
VOE11054328
|
[0012] |
Stud
|
|
| 14. |
VOE13976433
|
[0012] |
Flange nut
|
|
| 15. |
VOE4823783
|
[0004] |
Plate
|
|
| 16. |
VOE11054099
|
[0001] |
Bracket
|
|
| |
VOE4941217
|
[0001] |
Stay
|
6X4
|
| |
VOE4941252
|
[0001] |
Bracket
|
|
| 17. |
VOE4941232
|
[1] |
Cross stay
|
|
| |
VOE17498200
|
[2] |
Repair Kit
|
|
| |
VOE914542
|
[2] |
Retaining ring
|
|
| 18. |
VOE963349
|
[6] |
Hexagon screw
|
|
| 19. |
VOE13976433
|
[6] |
Flange nut
|
|
| 20. |
VOE955903
|
[REQ] |
Plain washer
|
|
| 21. |
VOE955903
|
[REQ] |
Plain washer
|
|
| 22. |
|
|
Boggie-wheel axle
|
|
| 2. |
VOE4821586
|
[0001] |
Bearing
|
SER NO -4096
|
| |
VOE4941208
|
[0001] |
Bearing
|
SER NO 4097 -
|
