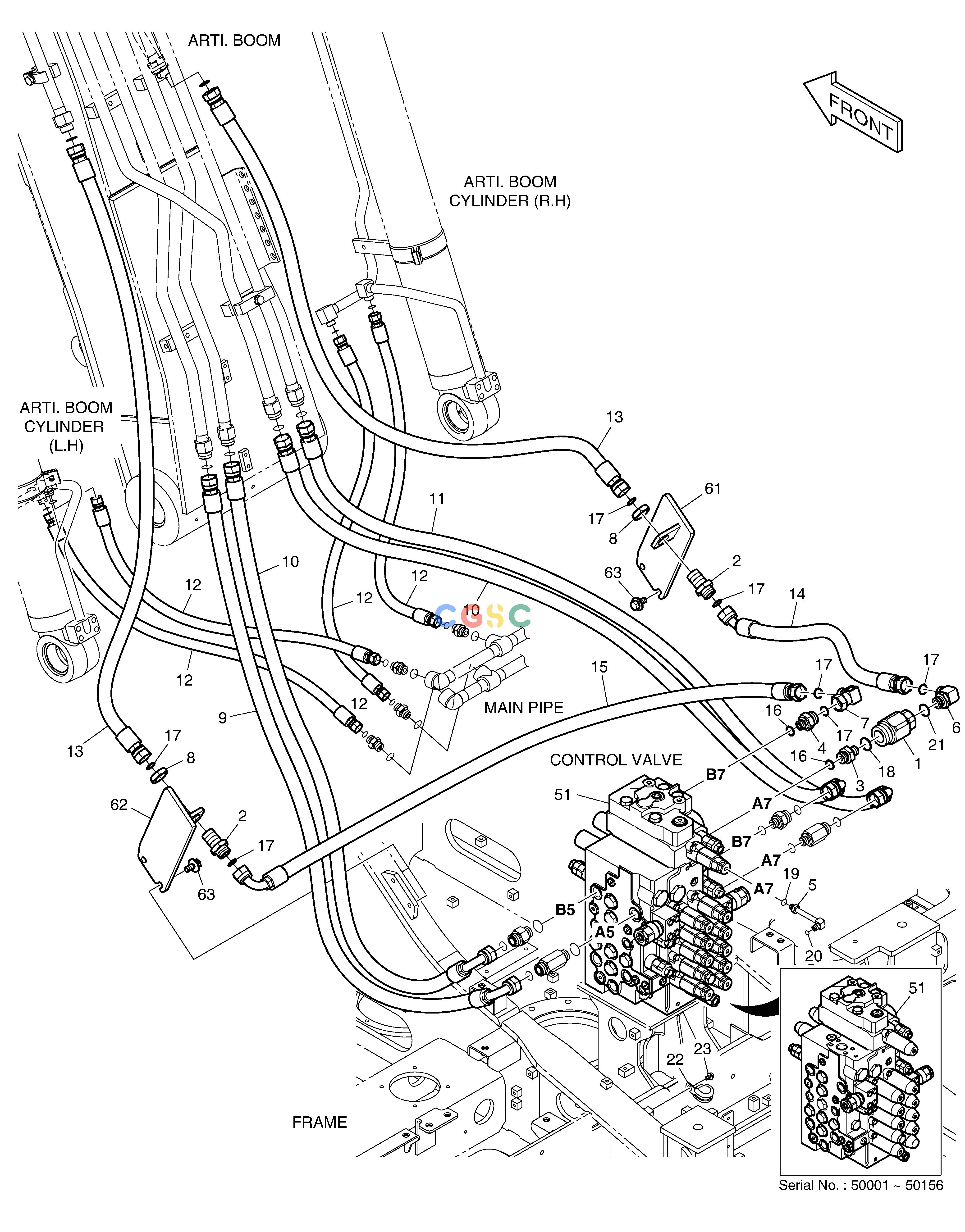

斗山零件查询MAIN PIPING - ARTI BOOM DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
488 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05673
|
[-] |
|
|
| 1. |
K1025252
|
[1] |
VALVE;SLOW RETURN
|
|
| 10. |
DS2013391
|
[2] |
HOSE PF3/4-1060L
|
|
| 11. |
DS20131912
|
[1] |
|
|
| 12. |
2184-1196D142
|
[4] |
HOSE PF1/2-670L
|
|
| 13. |
DS20111416
|
[2] |
|
|
| 14. |
DS20121053
|
[1] |
|
|
| 15. |
DS20131756
|
[1] |
|
|
| 16. |
S8000181
|
[2] |
O-RING
|
|
| 17. |
S8030121
|
[7] |
O-RING
|
|
| 18. |
S8000241
|
[1] |
O-RING
|
|
| 19. |
S8000111
|
[1] |
O-RING
|
|
| 2. |
DS2415007
|
[2] |
ADAPTER
|
|
| 20. |
S8030041
|
[1] |
O-RING
|
|
| 21. |
S8000231
|
[1] |
O-RING
|
|
| 22. |
124-00208D4
|
[1] |
CLIP
|
|
| 23. |
K1001029
|
[1] |
BOLT
|
|
| 3. |
DS2512001
|
[1] |
|
|
| 4. |
DS2257005
|
[1] |
ADAPTER
|
|
| 5. |
DS2304138
|
[1] |
|
|
| 51. |
410105-00335B
|
[1] |
|
410105-00335C
|
| 51. |
410105-00335C
|
[1] |
|
|
| 6. |
2181-2628D1
|
[1] |
ELBOW
|
|
| 61. |
250127-00438A
|
[1] |
|
|
| 62. |
250127-00439A
|
[1] |
|
|
| 63. |
DS0025018
|
[4] |
BOLT
|
|
| 7. |
DS2291014
|
[1] |
ELBOW
|
|
| 8. |
121-00010D8
|
[2] |
NUT
|
|
| 9. |
DS20131911
|
[1] |
|
|
