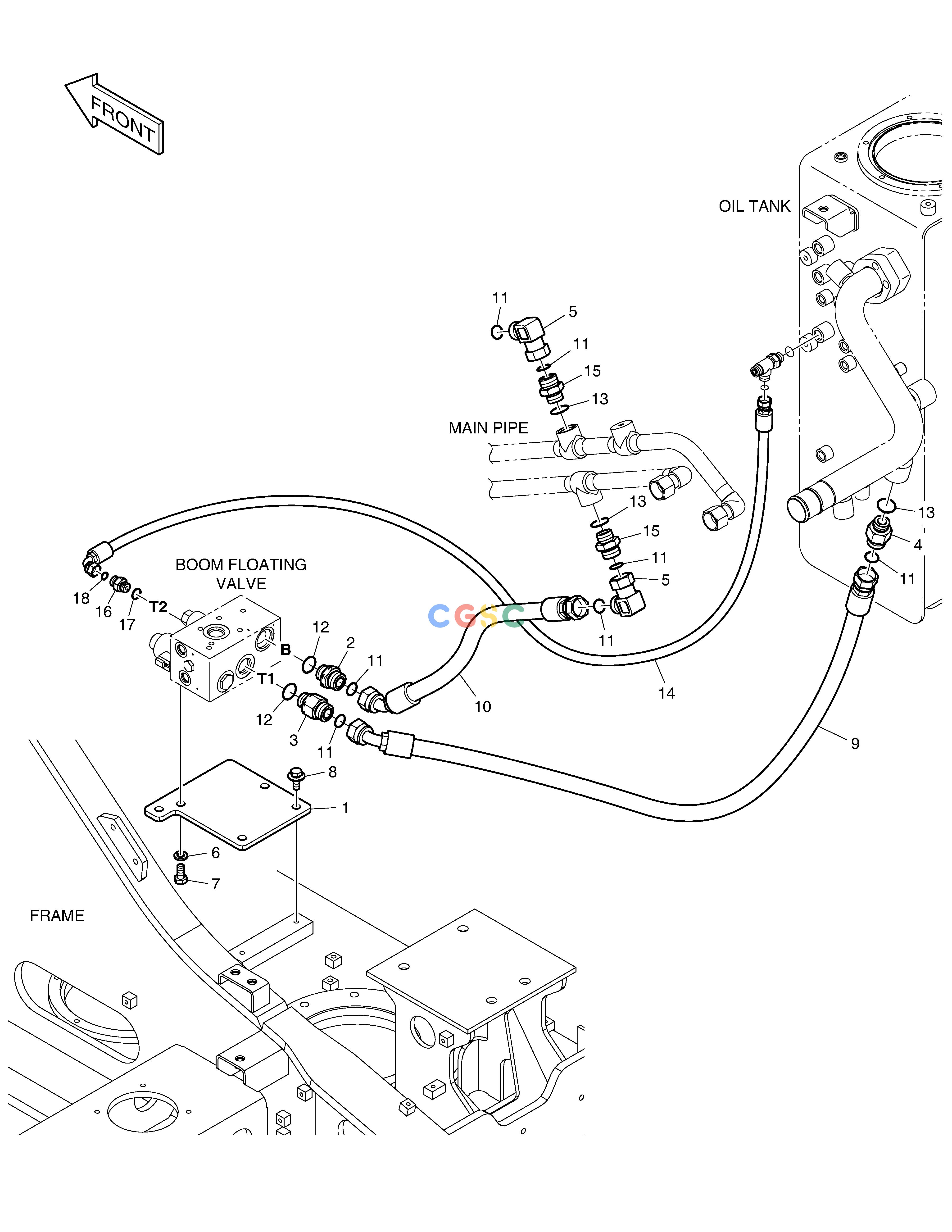

斗山零件查询MAIN PIPING - BOOM FLOATING DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
145 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05693
|
[-] |
|
|
| 1. |
110406-00530B
|
[1] |
|
|
| 10. |
DS2012342
|
[1] |
HOSE
|
|
| 11. |
S8030121
|
[7] |
O-RING
|
|
| 12. |
S8000231
|
[2] |
O-RING
|
|
| 13. |
S8000241
|
[3] |
O-RING
|
|
| 14. |
DS2121032
|
[1] |
|
|
| 15. |
2181-4133D5
|
[2] |
. ADAPTER
|
|
| 16. |
2181-4133D2
|
[1] |
ADAPTER
|
|
| 17. |
S8000141
|
[1] |
O-RING
|
|
| 18. |
S8030061
|
[1] |
O-RING
|
|
| 2. |
2181-2627D1
|
[1] |
ADAPTER
|
|
| 3. |
2181-2627D5
|
[1] |
ADAPTER
|
|
| 4. |
DS2232187
|
[1] |
ADAPTER
|
|
| 5. |
DS2291014
|
[2] |
ELBOW
|
|
| 6. |
S5102703
|
[2] |
WASHER
|
|
| 7. |
S0515066
|
[2] |
BOLT
|
|
| 8. |
DS0025016
|
[3] |
BOLT
|
|
| 9. |
DS2012615
|
[1] |
|
|
