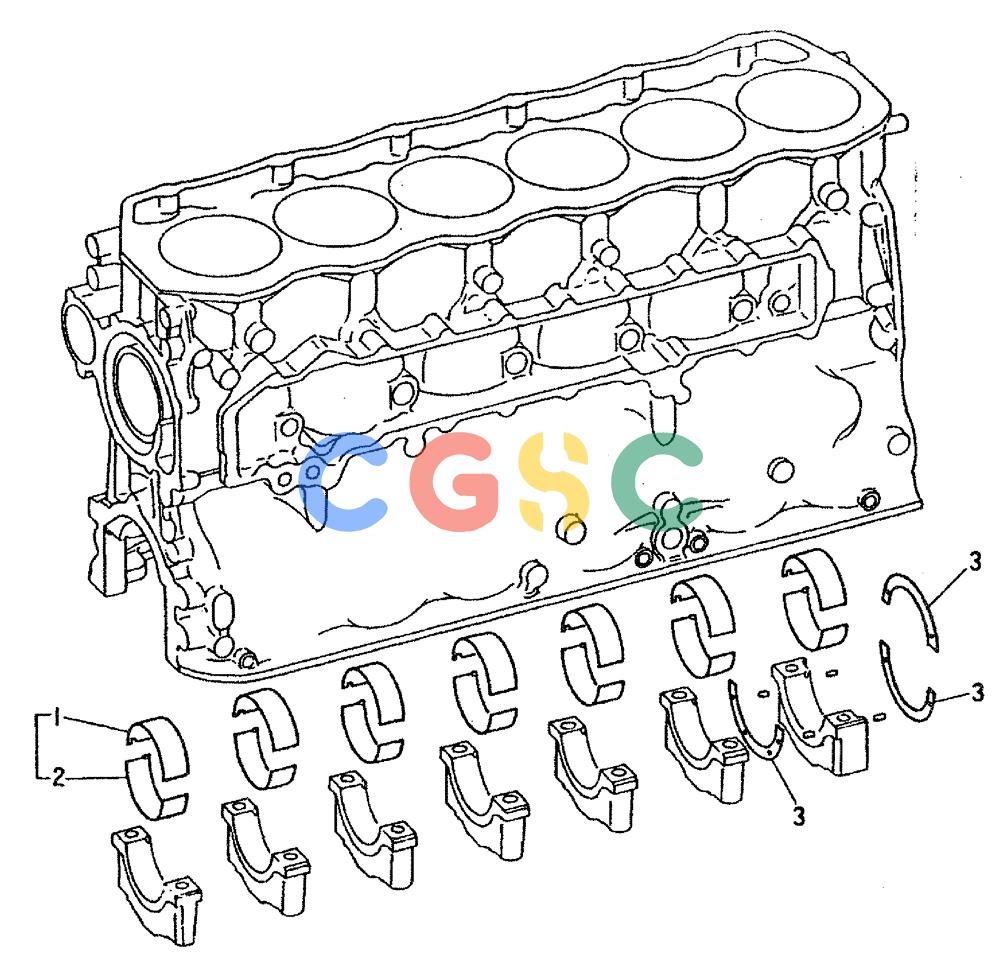

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-003) - CRANKSHAFT BEARING Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
182 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-2. | VAME999199 | [1] | SET OF STD MAIN BRGS | KOBMAIN BEARING SET, ONE MODEL Superseded by part number: VAME996502 |
| . . | VAME999200 | [1] | SET OF STD MAIN BRGS | KOBUS |
| . . | VAME999201 | [1] | SET OF STD MAIN BRGS | KOBUS |
| . . | VAME999202 | [1] | SHEET METAL | KOBUS |
| . . | VAME999203 | [1] | SET | KOBUS |
| 1. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING, MAIN UPPER STD (ME030903) |
| 2. | NSS | [7] | NOT SOLD SEPARAT | CONBEARING, MAIN LOWER STD (ME030908) |
| 3. | VAME071163 | [3] | THRUST PLATE | KOBSTD |
| . . | VAME071164 | [1] | WASHER, THRUST | KOBWASHER,THRUST OS 0.15 |
| . . | VAME071165 | [1] | THRUST PLATE | KOBOS 0.30 |
| . . | VAME071166 | [1] | PLATE,THRUST OS 0.45 | PLATE,THRUST OS 0.45 |
