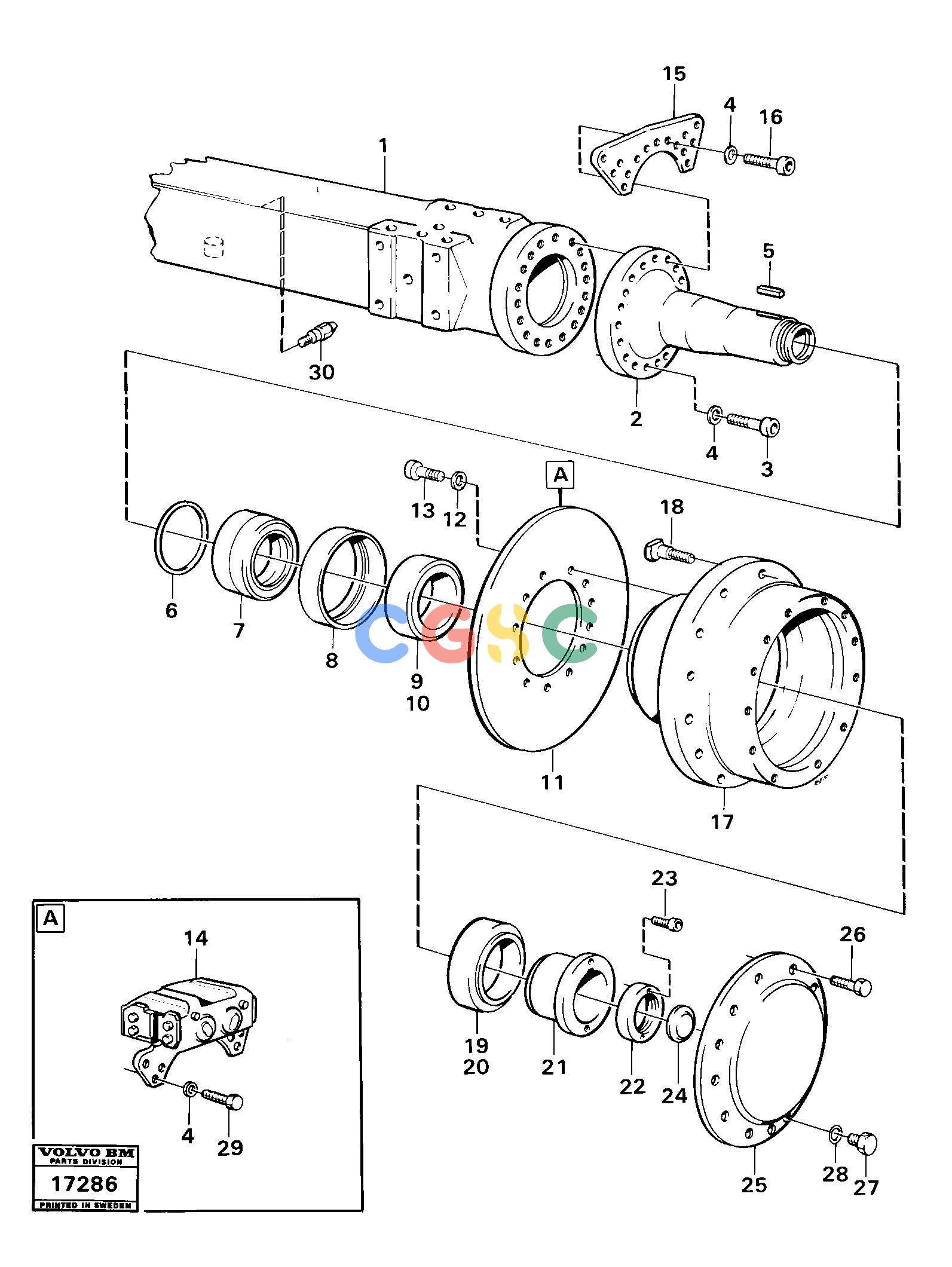

沃尔沃零件查询A25 VOLVO BM Trailing wheel-axle ta 54 b, tillv nr - 4951 Prod Nr 23551VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
958 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE941914
|
[0048] |
Spring washer
|
|
| 5. |
VOE909337
|
[0002] |
Flat key
|
|
| 6. |
VOE13960198
|
[0002] |
O-ring
|
|
| 7. |
VOE11102641
|
[0002] |
Spacer ring
|
|
| 8. |
VOE4881555
|
[0002] |
Sealing ring
|
|
| 9. |
VOE183610
|
[0002] |
Roller bearing
|
|
| 10. |
VOE183610
|
[0002] |
Roller bearing
|
|
| 11. |
VOE11034093
|
[0002] |
Brake disc
|
|
| 12. |
VOE930845
|
[0048] |
Plain washer
|
|
| 13. |
VOE13947373
|
[0048] |
Screw
|
|
| 14. |
VOE4881595
|
[0002] |
Brake
|
SEE GROUP 51
|
| 15. |
VOE4870321
|
[0002] |
Brake anchorage
|
|
| 16. |
VOE14370999
|
[0018] |
Allen Hd Screw
|
|
| 17. |
VOE4717777
|
[0002] |
Hub
|
|
| 18. |
VOE11102584
|
[0024] |
Wheel stud
|
|
| 1. |
|
[0001] |
Bogie-wheel casing
|
|
| 19. |
VOE17488188
|
[0002] |
Bearing
|
|
| 20. |
VOE11034842
|
[0002] |
Cup
|
|
| 21. |
VOE4864541
|
[0002] |
Bearing sleeve
|
|
| 22. |
VOE4717822
|
[0002] |
Nut
|
|
| 23. |
VOE13947566
|
[0004] |
Screw
|
|
| 24. |
VOE955112
|
[0002] |
Expansion plug
|
|
| 25. |
VOE4940051
|
[0002] |
Cover
|
|
| 26. |
VOE13977564
|
[0024] |
Hexagon screw
|
|
| 27. |
VOE11034156
|
[0004] |
Plug
|
|
| 28. |
VOE958228
|
[0004] |
O-ring
|
|
| 2. |
VOE4864540
|
[0002] |
King pin
|
|
| 29. |
VOE4717660
|
[0012] |
Screw
|
|
| 30. |
VOE384555
|
[0001] |
Air vent valve
|
|
| 3. |
VOE949566
|
[0018] |
Hex. socket screw
|
|
