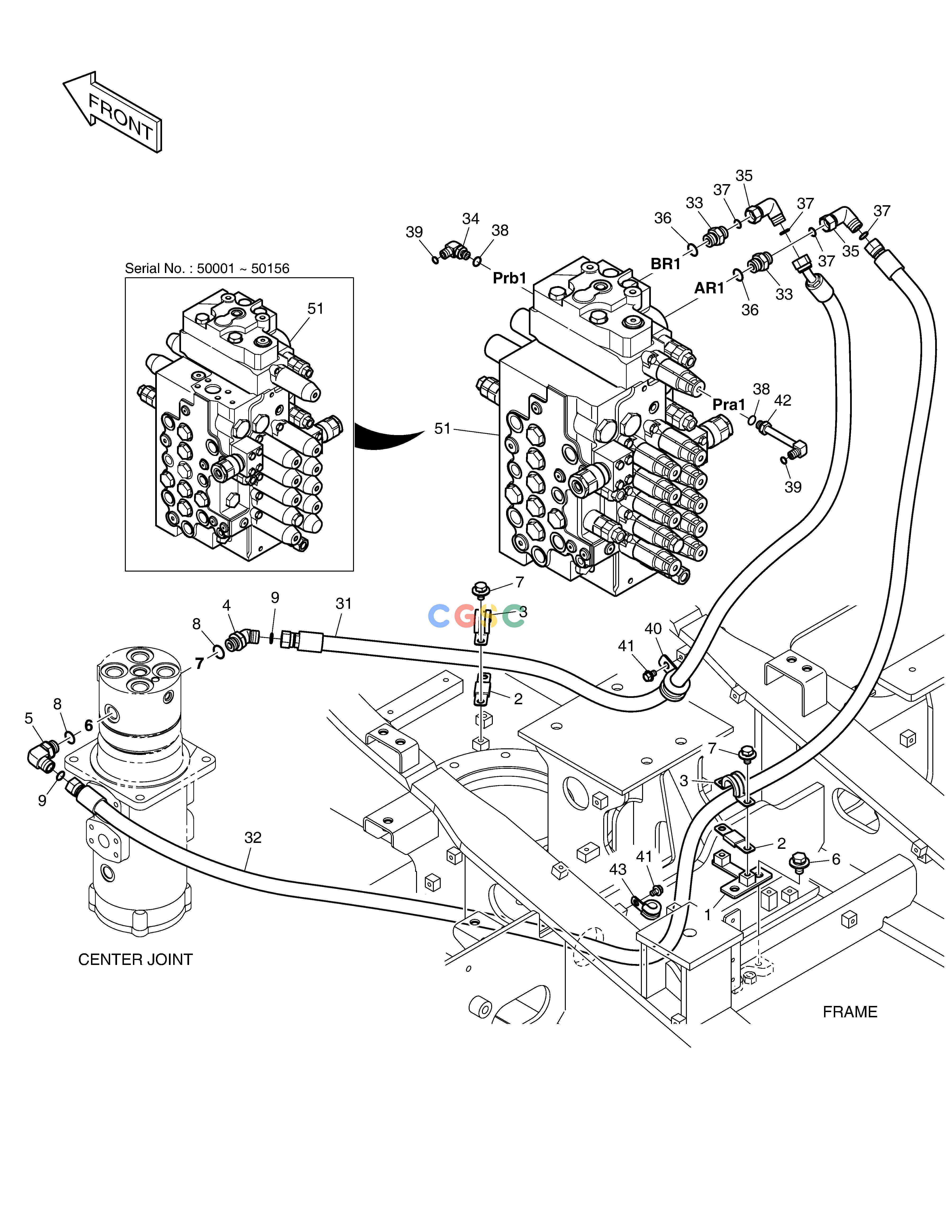

斗山零件查询MAIN PIPING - DOZER DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
335 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05696
|
[-] |
|
|
| 1. |
250127-00601
|
[1] |
|
|
| 2. |
120202-00068
|
[2] |
|
|
| 3. |
120202-00069
|
[2] |
|
|
| 31. |
DS2012886
|
[1] |
|
|
| 32. |
DS20111233
|
[1] |
|
|
| 33. |
DS2232012
|
[2] |
ADAPTER
|
|
| 34. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 35. |
DS2291011
|
[2] |
ELBOW
|
|
| 36. |
S8000181
|
[2] |
O-RING
|
|
| 37. |
S8030081
|
[4] |
O-RING
|
|
| 38. |
S8000111
|
[2] |
O-RING
|
|
| 39. |
S8030041
|
[2] |
O-RING
|
|
| 4. |
2181-2816D4
|
[1] |
ELBOW
|
|
| 40. |
124-00208D3
|
[1] |
CLIP
|
|
| 41. |
K1001029
|
[2] |
BOLT
|
|
| 42. |
DS2304138
|
[1] |
|
|
| 43. |
124-00208D2
|
[1] |
CLAMP
|
|
| 5. |
2181-2815D3
|
[1] |
ELBOW
|
|
| 51. |
410105-00335B
|
[1] |
|
410105-00335C
|
| 51. |
410105-00335C
|
[1] |
|
|
| 6. |
DS0025019
|
[2] |
BOLT
|
|
| 7. |
DS0025013
|
[4] |
BOLT
|
|
| 8. |
S8000181
|
[2] |
O-RING
|
|
| 9. |
S8030081
|
[2] |
O-RING
|
|
