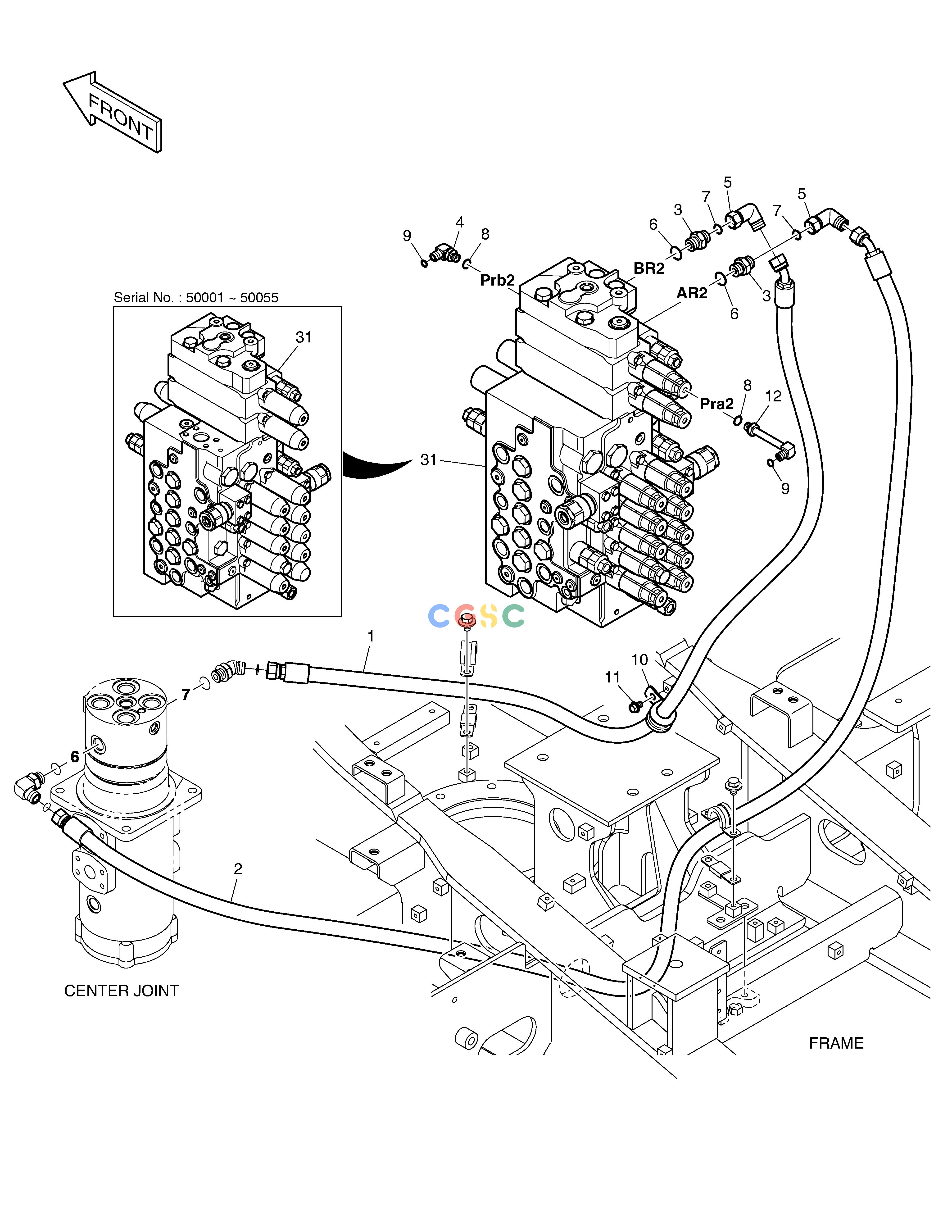

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| -. | 420212-05698 | [-] | ||
| 1. | DS20121054 | [1] | ||
| 10. | 124-00208D3 | [1] | CLIP | |
| 11. | K1001029 | [1] | BOLT | |
| 12. | DS2304138 | [1] | ||
| 2. | DS20121055 | [1] | ||
| 3. | DS2232012 | [2] | ADAPTER | |
| 31. | 410105-00336B | [1] | 410105-00336C | |
| 31. | 410105-00336C | [1] | ||
| 4. | 2181-2815D4 | [1] | ELBOW | |
| 5. | DS2291011 | [2] | ELBOW | |
| 6. | S8000181 | [2] | O-RING | |
| 7. | S8030081 | [2] | O-RING | |
| 8. | S8000111 | [2] | O-RING | |
| 9. | S8030041 | [2] | O-RING |
