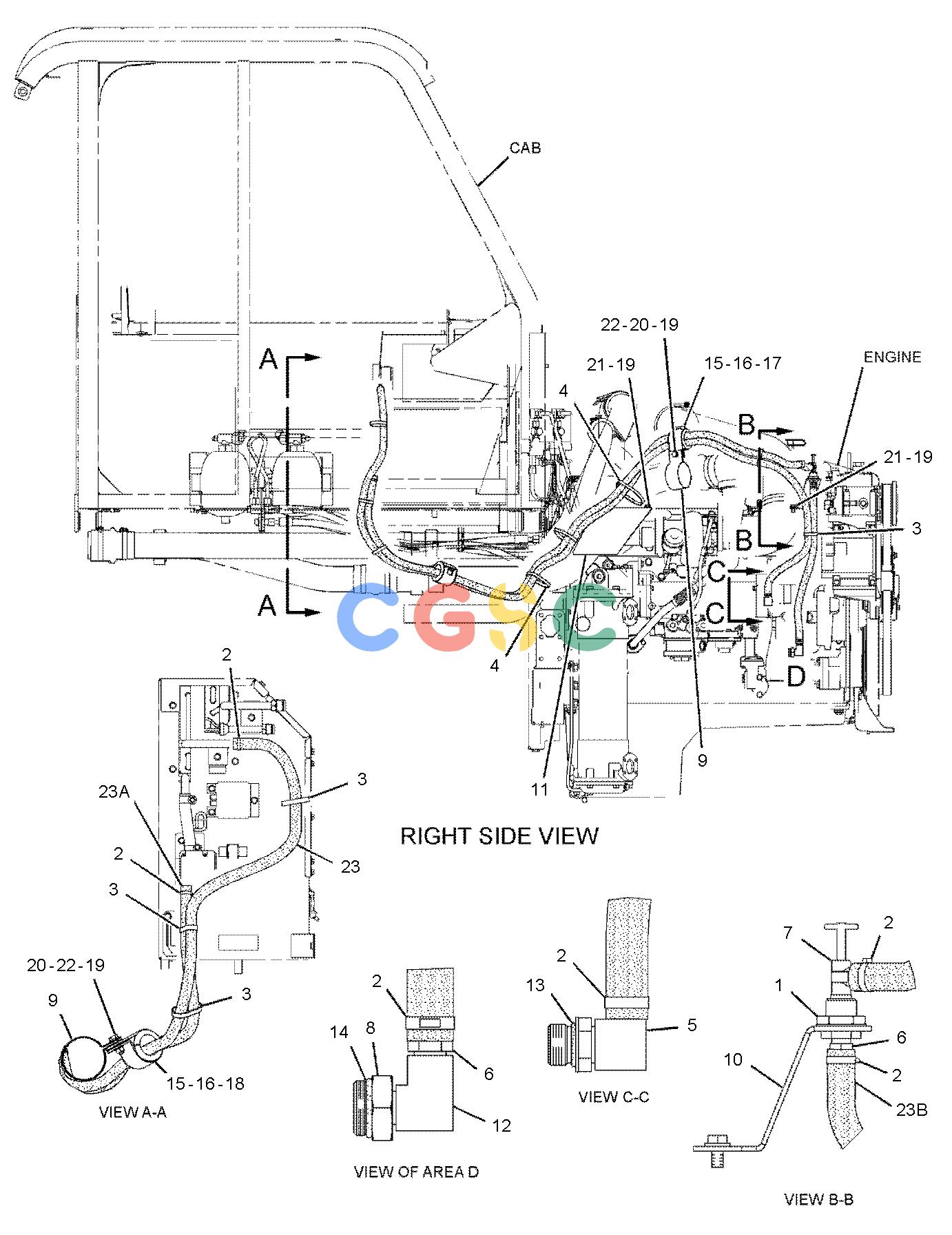

卡特零件查询（725） 229-9333: LINES GP-HEATER
广数供应链运营团队, 14 02月, 2025，浏览：
827 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2M-1908 | [1] | FITTING-BULKHEAD | |
| 2. | 8T-0154 | [6] | CLAMP-HOSE | |
| 3. | 6U-0455 | [6] | STRAP | |
| 4. | 6U-0456 | [3] | STRAP | |
| 5. | 6V-9208 | [1] | ELBOW | |
| 6. | 7D-7026 | [2] | CONNECTOR-HOSE | |
| 7. | 8F-8151 | [1] | VALVE-SHUTOFF(ENGINE COOLANT) | |
| 8. | 9N-1595 | [1] | NUT(3/8-18-THD) | |
| 9. | 249-4059 | [2] | CLAMP | |
| 10. | 253-6102 | [1] | BRACKET | |
| 11. | 288-5212 | [1] | SHIELD-HEAT | |
| 12. | 003-2143 | [1] | ELBOW | |
| 13. | 2M-9780 | [1] | SEAL-O-RING | |
| 14. | 3D-2824 | [1] | SEAL-O-RING | |
| 15. | 5P-7470 | [2] | CLIP(SLOT) | |
| 16. | 5P-7471 | [2] | CLIP(TAB) | |
| 17. | 5P-7703 | [1] | GROMMET(52-MM ID) | |
| 18. | 5P-8182 | [1] | GROMMET(46-MM ID) | |
| 19. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 21. | 8T-4137M | [4] | BOLT(M10X1.5X20-MM) | |
| 22. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 23. | 415-6334E | | HOSE(319.5-CM) | |
| 23A. | 415-6334E | | HOSE(229-CM) | |
| 23B. | 415-6334E | | HOSE(57.8-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
