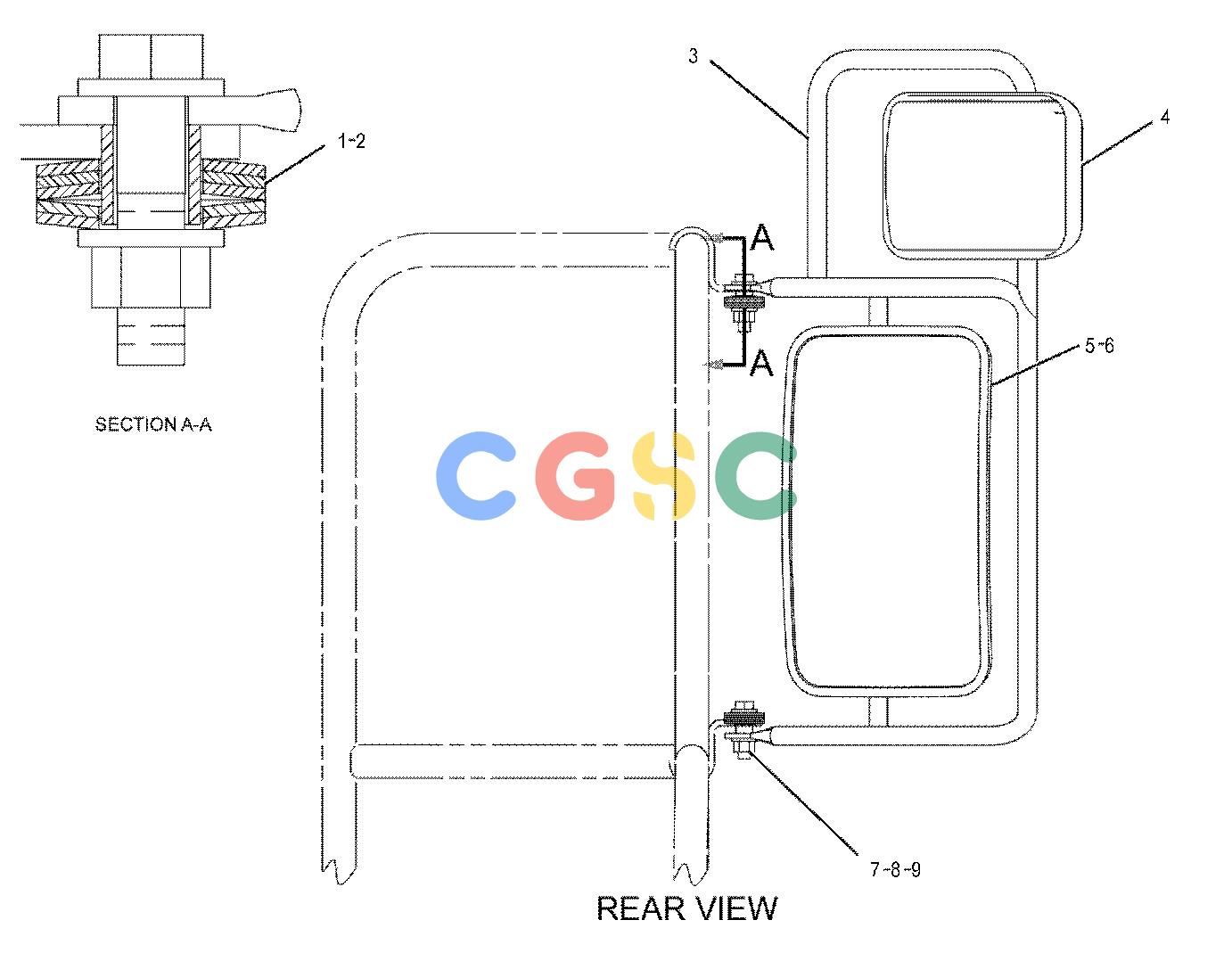

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 4W-8926 | [20] | WASHER(18.3X40X3.15-MM THK) | |
| 2. | 108-7638 | [4] | SPACER(13.3X17.3X17.4-MM THK) | |
| 3. | 242-8783C | [2] | BRACKET AS-MIRROR | |
| 4. | 222-7374 | [2] | MIRROR-CONVEX | |
| 5. | 235-2698 | [1] | MIRROR(LH) | |
| 6. | 236-2146 | [1] | MIRROR(RH) | |
| 7. | 8T-4194M | [4] | BOLT(M12X1.75X50-MM) | |
| 8. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 9. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
