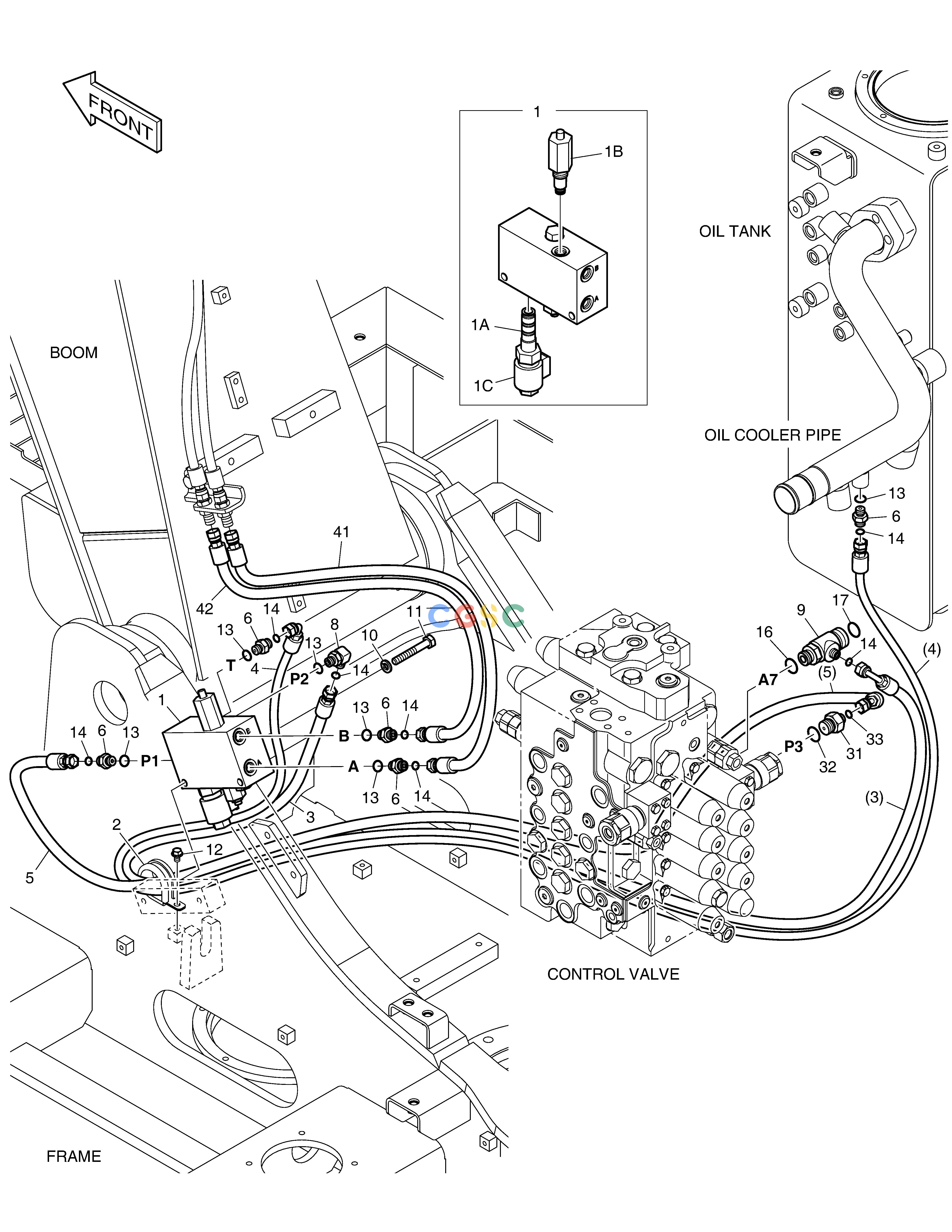

斗山零件查询MAIN PIPING - QUICK FIT DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
607 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05684
|
[-] |
|
|
| 1. |
410111-00142
|
[1] |
|
|
| 10. |
S5102603
|
[2] |
. WASHER
|
|
| 11. |
S0558966
|
[2] |
BOLT
|
|
| 12. |
K1001029
|
[1] |
BOLT
|
|
| 13. |
S8000111
|
[6] |
O-RING
|
|
| 14. |
S8030041
|
[7] |
O-RING
|
|
| 16. |
S8000181
|
[1] |
O-RING
|
|
| 17. |
S8030121
|
[1] |
O-RING
|
|
| 1A. |
410135-00248
|
[1] |
|
|
| 1B. |
410126-00038A
|
[1] |
|
|
| 1C. |
300715-00039
|
[1] |
|
|
| 2. |
124-00208D7
|
[1] |
CLIP
|
|
| 3. |
DS20131550
|
[1] |
|
|
| 31. |
DS2232127
|
[1] |
ADAPTER
|
|
| 32. |
S8000181
|
[1] |
O-RING
|
|
| 33. |
S8030041
|
[1] |
O-RING
|
|
| 4. |
DS2121105
|
[1] |
|
|
| 41. |
DS2011536
|
[1] |
|
|
| 42. |
DS20111412
|
[1] |
|
|
| 5. |
DS20121041
|
[1] |
|
|
| 6. |
2181-4133D1
|
[5] |
ADAPTER
|
|
| 8. |
2181-2815D4
|
[1] |
ELBOW
|
|
| 9. |
DS2412037
|
[1] |
|
|
