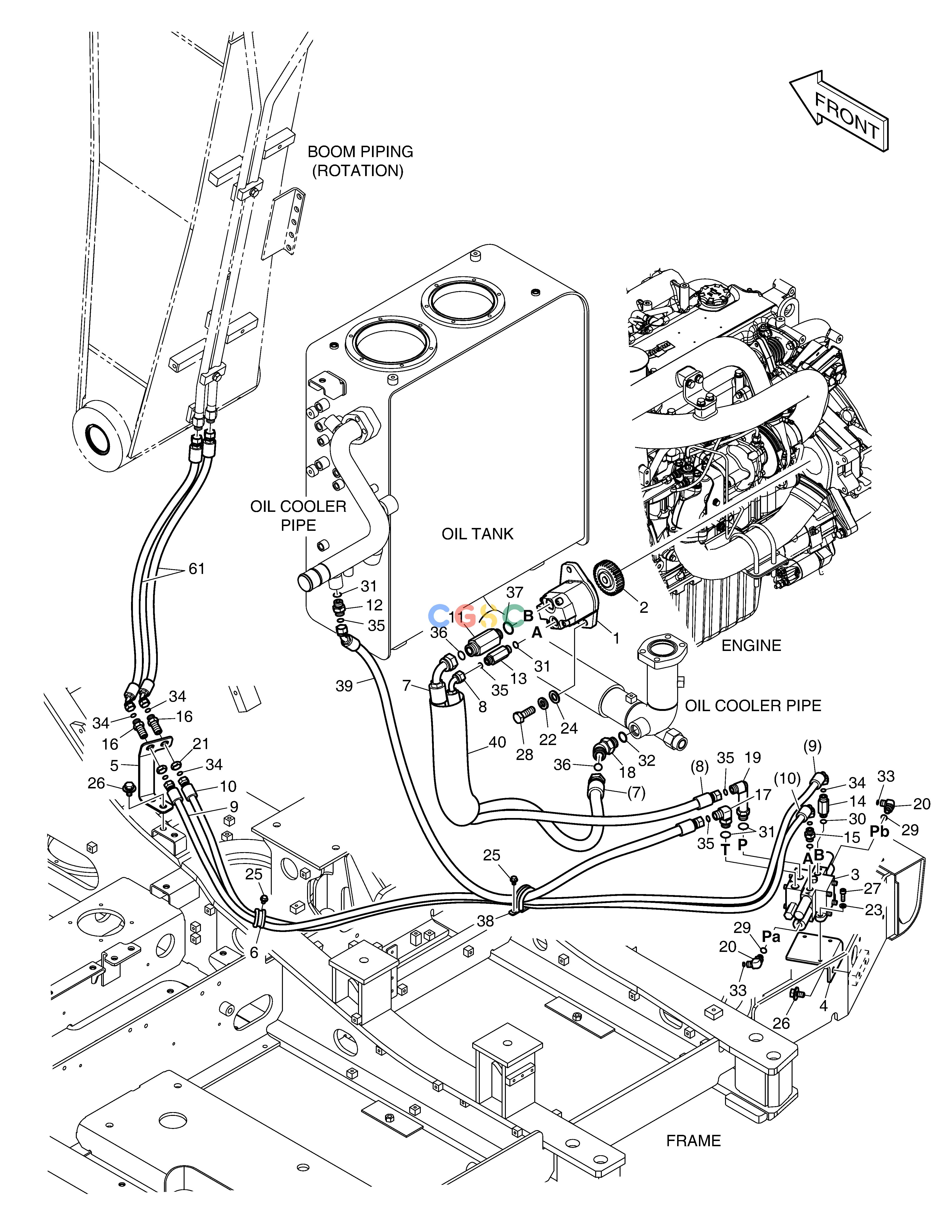

斗山零件查询MAIN PIPING - ROTATING DX160LC-3 Doosan parts catalog online
广数供应链运营团队, 14 02月, 2025，浏览：
228 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| -. |
420212-05681
|
[-] |
|
|
| 1. |
400910-00159
|
[1] |
|
|
| 10. |
DS20131976
|
[1] |
|
|
| 11. |
2181-4133D25
|
[1] |
ADAPTER
|
|
| 12. |
DS2232012
|
[1] |
ADAPTER
|
|
| 13. |
DS2232015
|
[1] |
ADAPTER
|
|
| 14. |
DS2232085
|
[1] |
ADAPTER
|
|
| 15. |
DS2232038
|
[1] |
ADAPTER
|
|
| 16. |
181-00128D2
|
[2] |
ADAPTER;CONNECTOR
|
|
| 17. |
2181-2815D3
|
[1] |
ELBOW
|
|
| 18. |
2181-2816D1
|
[1] |
ELBOW
|
|
| 19. |
DS2304086
|
[1] |
ELBOW
|
|
| 2. |
K1005830
|
[1] |
GEAR
|
|
| 20. |
2181-2815D4
|
[2] |
ELBOW
|
|
| 21. |
DS0301032
|
[2] |
NUT
|
|
| 22. |
S5102703
|
[2] |
WASHER
|
|
| 23. |
S5102503
|
[3] |
. WASHER
|
|
| 24. |
S5010713
|
[2] |
WASHER;PLAIN
|
|
| 25. |
K1001029
|
[2] |
BOLT
|
|
| 26. |
DS0025019
|
[4] |
BOLT
|
|
| 27. |
S2209066
|
[3] |
BOLT
|
|
| 28. |
S0786366
|
[2] |
BOLT
|
|
| 29. |
S8000111
|
[2] |
O-RING
|
|
| 3. |
426-00284B
|
[1] |
VALVE;ONE SPOOL
|
|
| 30. |
S8000141
|
[2] |
O-RING
|
|
| 31. |
S8000181
|
[4] |
O-RING
|
|
| 32. |
S8000231
|
[1] |
O-RING
|
|
| 33. |
S8030041
|
[2] |
O-RING
|
|
| 34. |
S8030061
|
[6] |
O-RING
|
|
| 35. |
S8030081
|
[4] |
O-RING
|
|
| 36. |
S8030121
|
[2] |
O-RING
|
|
| 37. |
S8000241
|
[1] |
O-RING
|
|
| 38. |
124-00208D7
|
[1] |
CLIP
|
|
| 39. |
DS2012424
|
[1] |
HOSE
|
|
| 4. |
110406-00870A
|
[1] |
|
|
| 40. |
K1003945
|
[1] |
PROTECTOR
|
|
| 5. |
110406-01208
|
[1] |
|
|
| 6. |
124-00208D5
|
[1] |
CLIP
|
|
| 61. |
DS20121056
|
[2] |
|
|
| 7. |
DS2013160
|
[1] |
HOSE
|
|
| 8. |
DS20132037
|
[1] |
|
|
| 9. |
DS20131939
|
[1] |
|
|
