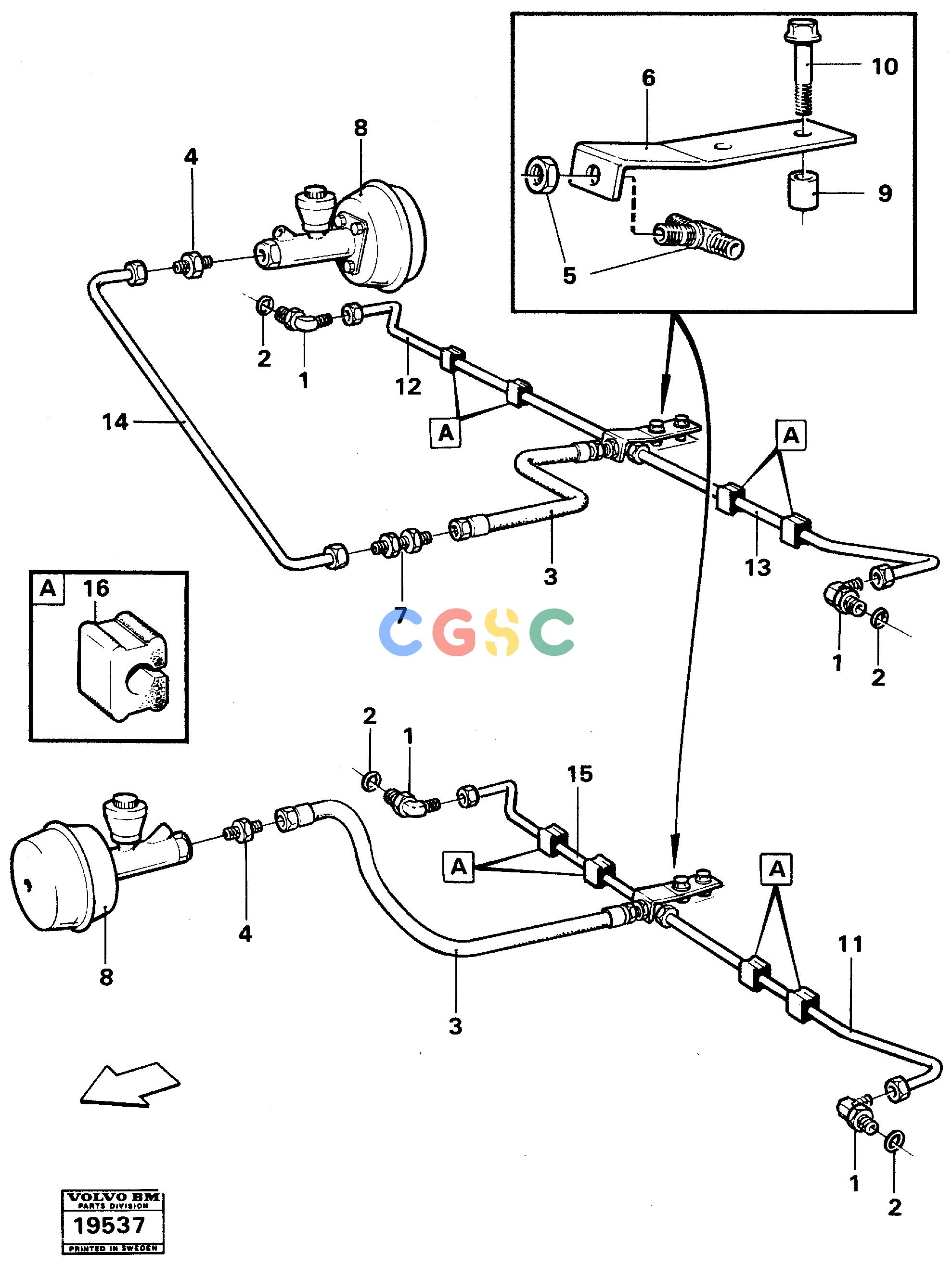

沃尔沃零件查询A25 VOLVO BM Hydraulic brake-system trailer 6x6VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
878 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
VOE4931464
|
[4] |
Elbow nipple
|
|
| 2. |
VOE4931579
|
[4] |
O-ring
|
|
| 3. |
VOE11112876
|
[2] |
Brake hose
|
|
| 4. |
VOE11043007
|
[2] |
Nipple
|
|
| |
VOE11053031
|
[2] |
O-ring
|
|
| 5. |
VOE11043008
|
[2] |
T-nipple
|
|
| 6. |
|
[2] |
Bracket
|
|
| 7. |
VOE4880280
|
[1] |
Bulkhead grommet
|
|
| 8. |
|
[2] |
Brake chamber
|
SEE GROUP 56
|
| |
VOE11063047
|
[2] |
Reservoir
|
|
| |
VOE11996160
|
[2] |
Cover
|
|
| |
VOE13947627
|
[2] |
Plane gasket
|
|
| 9. |
|
[0004] |
Sleeve
|
|
| 10. |
VOE13947760
|
[0004] |
Screw
|
|
| 11. |
VOE11053013
|
[0001] |
Brake pipe
|
|
| 12. |
VOE11053014
|
[0001] |
Brake pipe
|
|
| 13. |
VOE11053015
|
[0001] |
Brake pipe
|
|
| 14. |
VOE11053016
|
[0001] |
Brake pipe
|
|
| 15. |
VOE11053011
|
[0001] |
Brake pipe
|
|
| 16. |
VOE4941475
|
[0008] |
Rubber block
|
|
