沃尔沃零件查询A25 VOLVO BM Hydraulic brake system trailer 4x4VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
901 次

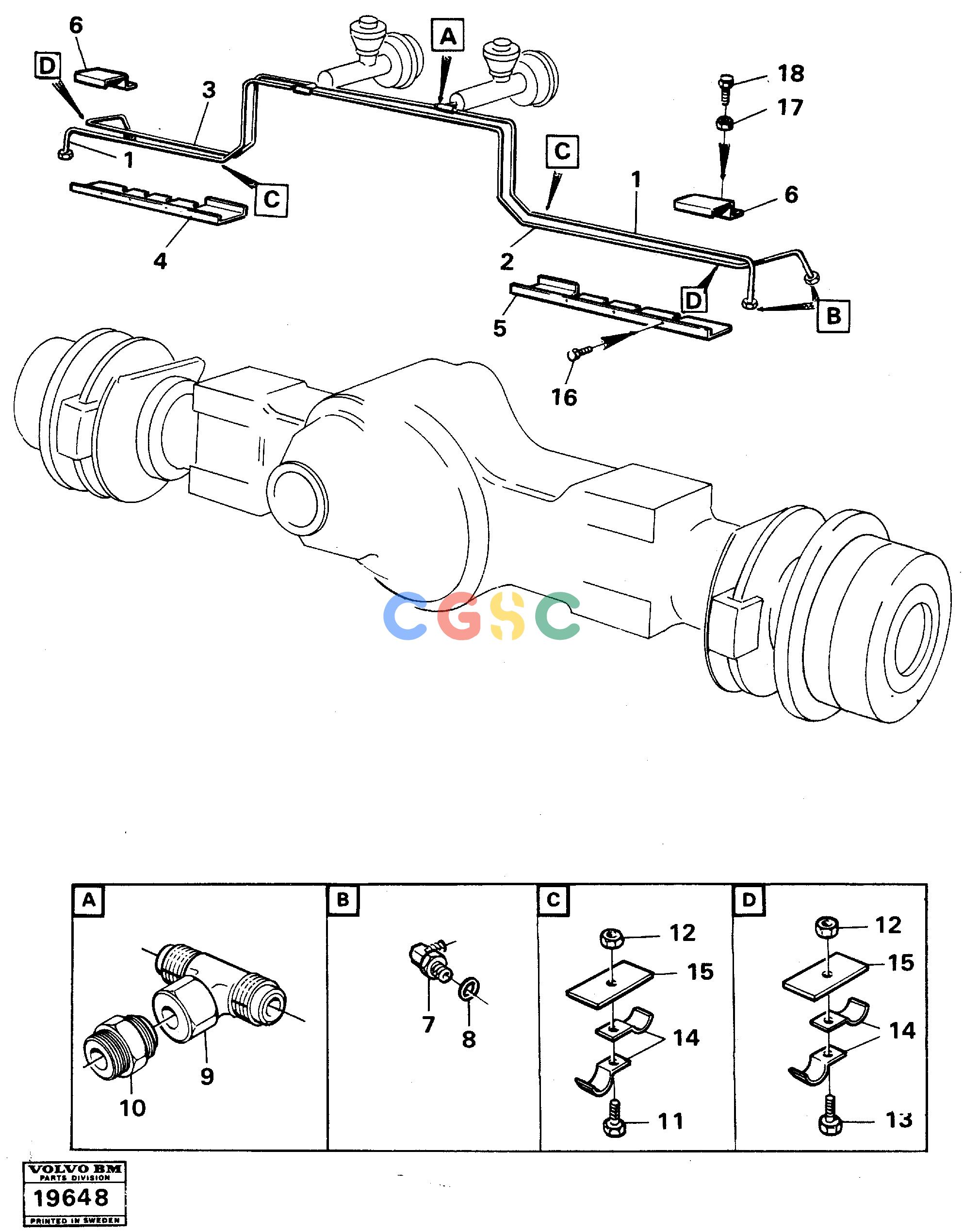

| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
|
[0001] |
Plate
|
|
| 6. |
|
[0001] |
Plate
|
|
| 7. |
VOE4931464
|
[0004] |
Elbow nipple
|
|
| 8. |
VOE4931579
|
[0004] |
O-ring
|
|
| 9. |
VOE4931463
|
[0002] |
Clutch
|
|
| 1. |
VOE11053269
|
[0002] |
Brake pipe
|
|
| 10. |
VOE11043007
|
[0002] |
Nipple
|
|
| 11. |
VOE13945444
|
[0002] |
Screw
|
|
| 12. |
VOE13949278
|
[0005] |
Flange lock nut
|
|
| 13. |
VOE13946934
|
[0003] |
Screw
|
|
| 14. |
VOE404279
|
[0010] |
Clamp
|
|
| 15. |
VOE4940230
|
[10] |
Guard
|
|
| 16. |
VOE13946173
|
[6] |
Screw
|
|
| 17. |
VOE13945408
|
[2] |
Nut
|
|
| 18. |
VOE13948356
|
[2] |
Flange screw
|
|
| 2. |
VOE11053270
|
[0001] |
Brake pipe
|
|
| 3. |
VOE11053271
|
[0001] |
Brake pipe
|
|
| 4. |
|
[0002] |
Plate
|
|
