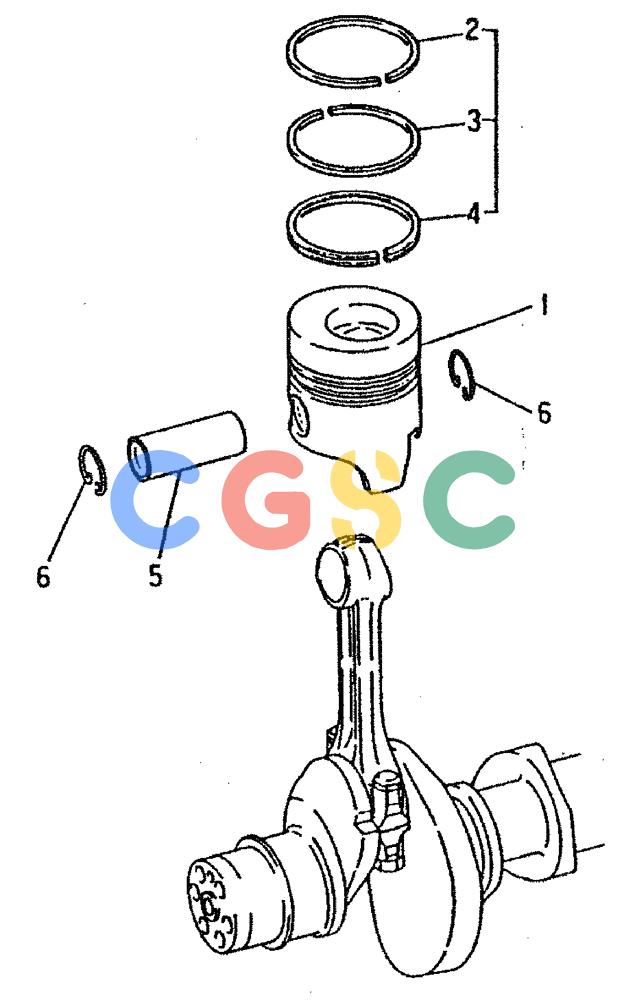

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-013) - PISTON Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
825 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME072066 | [1] | MANIFOLD A SIZE, ME072065 | MANIFOLD A SIZE, ME072065 |
| . . | VAME072067 | [6] | PISTON, B SIZE | |
| 2-4. | VAME999956 | [1] | PISTON RING SET, ONE MODEL, STD | |
| 2. | NSS | [6] | NOT SOLD SEPARAT | CONRING, COMPRESSION NO. 1, ME047030 |
| 3. | NSS | [6] | NOT SOLD SEPARAT | CONRING, COMPRESSION NO. 2, ME042103 |
| 4. | NSS | [6] | NOT SOLD SEPARAT | CONRING, OIL, ME072090 |
| 5. | VAME047021 | [6] | PIN | KOB |
| 6. | VAME032686 | [12] | SNAP RING | KOB |
