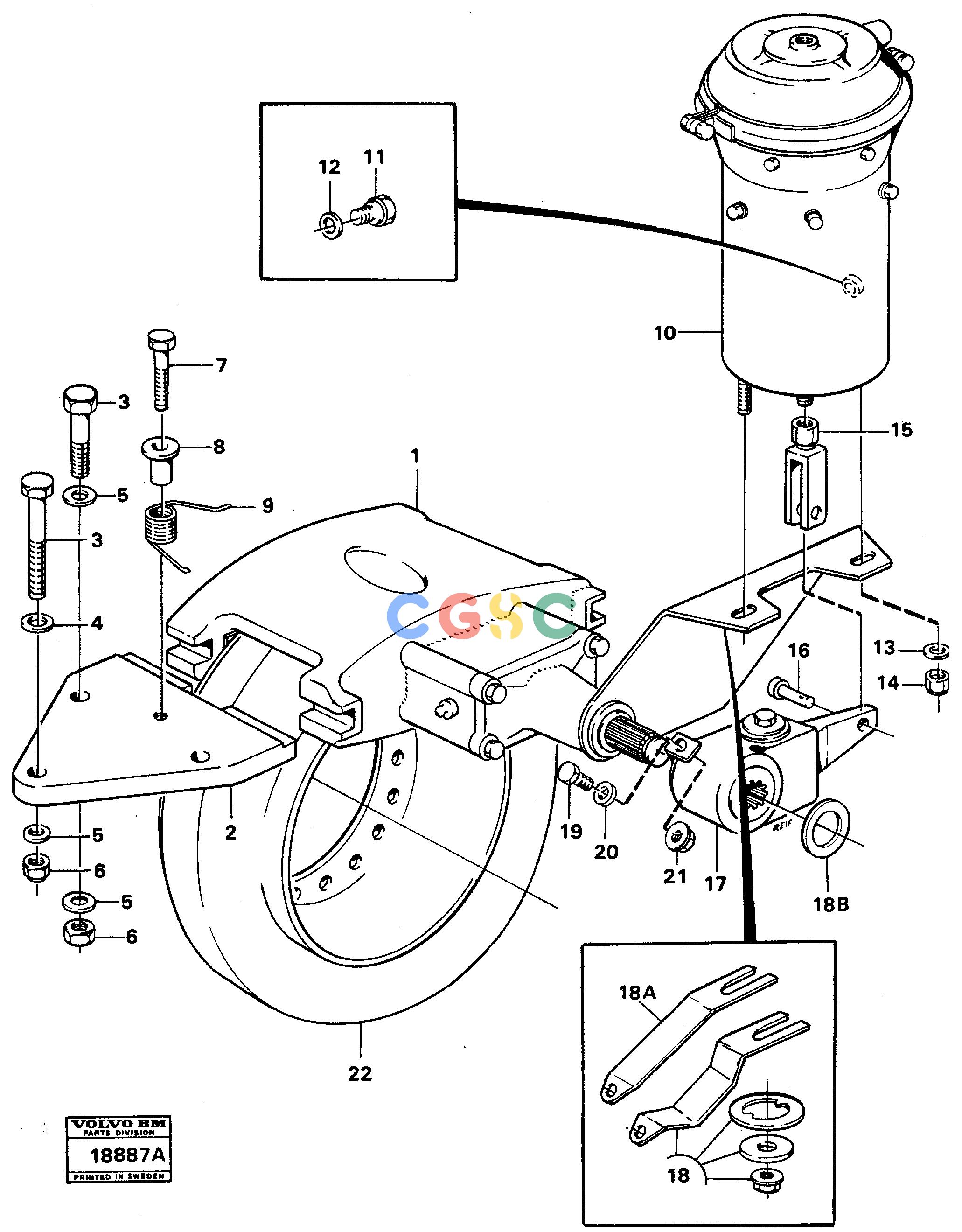

沃尔沃零件查询A25 VOLVO BM Universaljoint brakeVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
638 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE60110349
|
[12] |
Washer
|
|
| 6. |
VOE963110
|
[6] |
Lock nut
|
|
| 7. |
VOE13970950
|
[2] |
Hexagon screw
|
|
| 8. |
VOE4940868
|
[2] |
Bushing
|
|
| 9. |
VOE4940867
|
[2] |
Torsion spring
|
|
| 1. |
VOE4871294
|
[1] |
Handbrake
|
SEE GROUP 51
|
| 10. |
VOE1505054
|
[1] |
Brake cylinder
|
SEE GROUP 56
|
| 11. |
VOE13960634
|
[2] |
Plug
|
|
| 12. |
VOE13947627
|
[2] |
Plane gasket
|
|
| 13. |
VOE60110349
|
[2] |
Washer
|
|
| 14. |
VOE950378
|
[2] |
Lock nut
|
|
| 15. |
VOE1505067
|
[1] |
Fork
|
|
| 16. |
|
[1] |
Clevis pin
|
|
| 17. |
VOE4940871
|
[1] |
Brake lever
|
|
| |
VOE3091286
|
[1] |
Repair kit
|
|
| 18. |
VOE4940870
|
[1] |
Mounting kit
|
SER NO - 4815
|
| 18A. |
VOE11052519
|
[1] |
Bracket
|
SER NO 4816 -
|
| 18B. |
VOE11054100
|
[1] |
Washer
|
SER NO 4816 -
|
| 19. |
VOE13955294
|
[1] |
Screw
|
|
| 2. |
VOE4940072
|
[2] |
Plate
|
|
| 20. |
VOE13955894
|
[1] |
Washer
|
|
| 21. |
VOE13945408
|
[1] |
Nut
|
|
| 22. |
VOE4940065
|
[0001] |
Brake disc
|
|
| 3. |
VOE955372
|
[6] |
Hexagon screw
|
|
| 4. |
VOE4860948
|
[2] |
Washer
|
|
