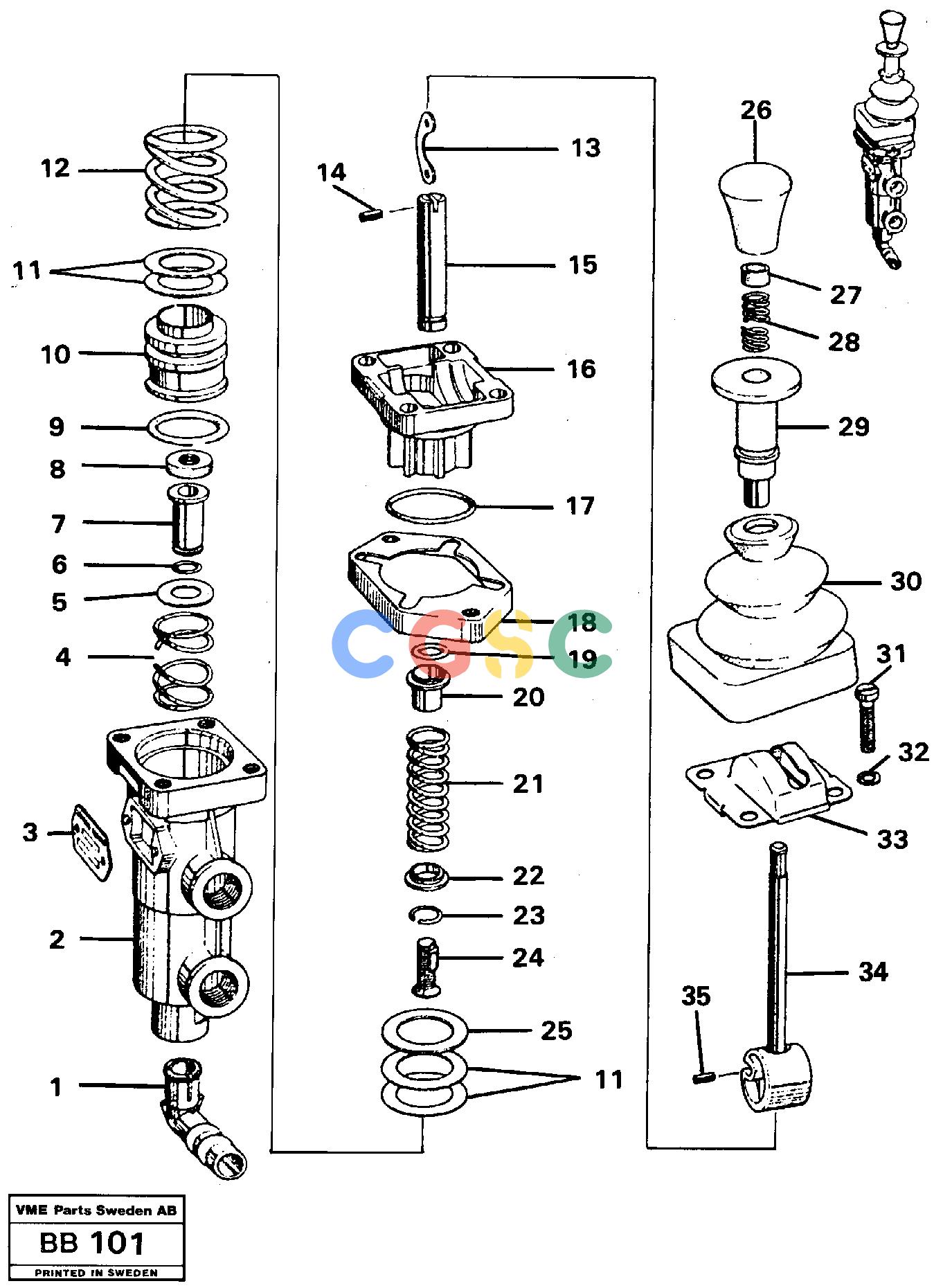

沃尔沃零件查询A25 VOLVO BM Parking brake valveVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
230 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| |
VOE4822431
|
[1] |
Parking brake valve
|
|
| 1. |
VOE6212800
|
[1] |
Nipple
|
|
| 2. |
|
[1] |
Housing
|
|
| 3. |
|
[1] |
Sign
|
|
| 4. |
|
[1] |
Spring
|
|
| 5. |
|
[1] |
Washer
|
|
| 6. |
VOE6211345
|
[1] |
O-ring
|
|
| 7. |
|
[1] |
Pin
|
|
| 8. |
VOE6226599
|
[1] |
Repair kit
|
|
| 9. |
VOE6211342
|
[1] |
O-ring
|
|
| 10. |
VOE6226587
|
[1] |
Piston
|
|
| 11. |
VOE6226581
|
[4] |
Washer
|
|
| 12. |
VOE1695795
|
[1] |
Spring
|
|
| 13. |
VOE6226592
|
[1] |
Companion flange
|
|
| 14. |
|
[1] |
Pin
|
|
| 15. |
VOE6226590
|
[1] |
Piston rod
|
|
| 16. |
VOE6226575
|
[4] |
Housing
|
|
| 17. |
VOE6211341
|
[1] |
O-ring
|
|
| 18. |
VOE6226576
|
[1] |
Flange
|
|
| 19. |
VOE6211343
|
[1] |
O-ring
|
|
| 20. |
VOE6226578
|
[1] |
Guide
|
|
| 21. |
VOE1695797
|
[1] |
Spring
|
|
| 22. |
VOE6226583
|
[1] |
Spring disc
|
|
| 23. |
|
[1] |
Ring
|
|
| 24. |
|
[1] |
Screw
|
|
| 25. |
VOE6226580
|
[1] |
Washer
|
|
| 26. |
VOE1695466
|
[1] |
Handle
|
|
| 27. |
VOE1695468
|
[1] |
Bushing
|
|
| 28. |
VOE11992008
|
[1] |
Spring
|
|
| 29. |
VOE6226597
|
[1] |
Lock sleeve
|
|
| 30. |
VOE6211346
|
[1] |
Bellows
|
|
| 31. |
VOE959192
|
[4] |
Hex. socket screw
|
|
| 32. |
|
[1] |
Washer
|
|
| 33. |
VOE6226595
|
[1] |
Segment
|
|
| 34. |
VOE6226574
|
[1] |
Hand lever
|
|
| 35. |
|
[1] |
Pin
|
|
| |
VOE6226599
|
[1] |
Repair kit
|
|
