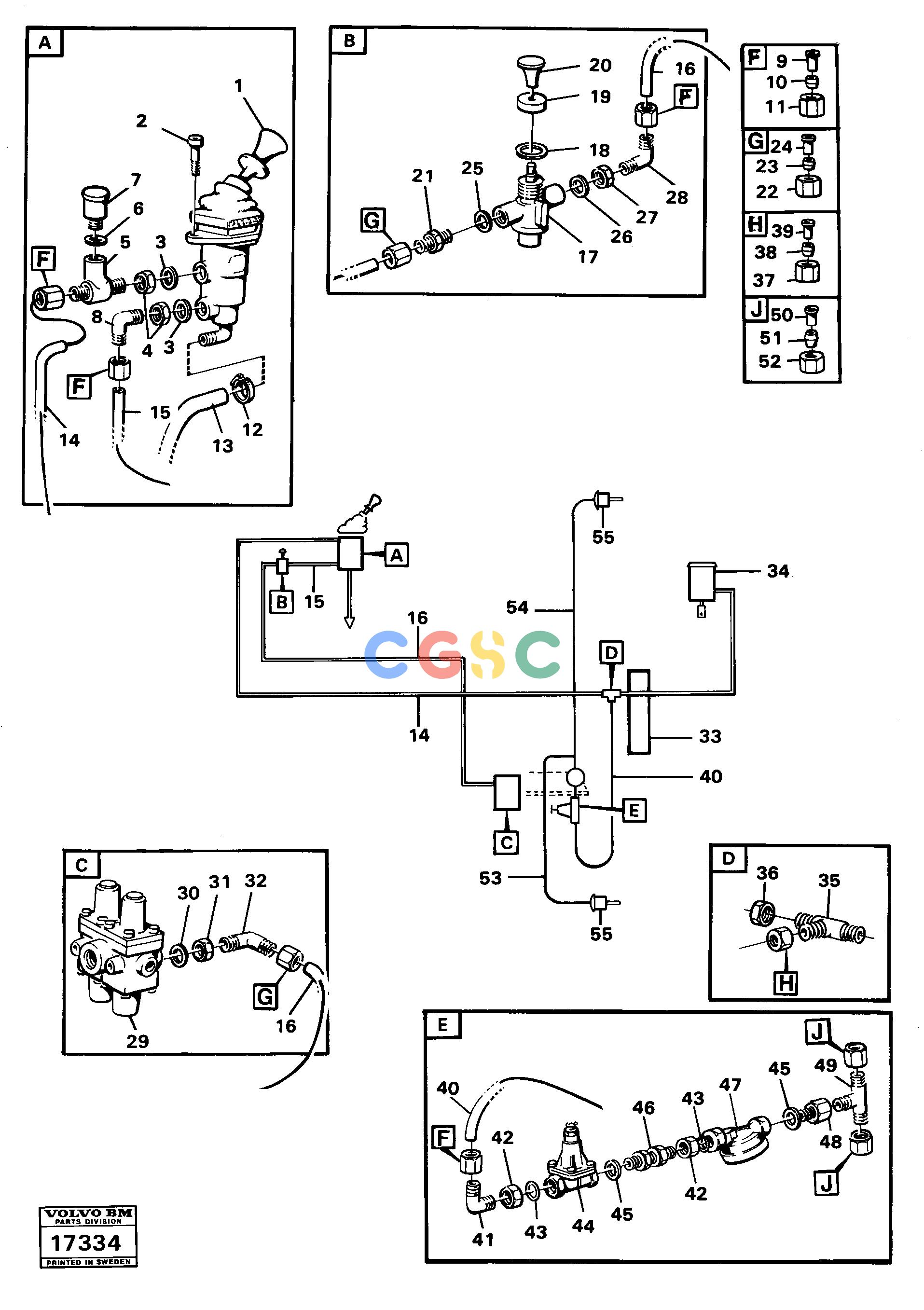

沃尔沃零件查询A25 VOLVO BM Barking brake, tractor pneumatic system foot Board.VOLVO BM A25STD-91580NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
943 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 4. |
VOE13945894
|
[0002] |
Nut
|
SER NO - 5487
|
| 32. |
VOE945964
|
[0001] |
Elbow nipple
|
|
| 33. |
|
[0001] |
Hoses over hitch
|
SEE GROUP 56
|
| 34. |
|
[0001] |
Park.brake, trailer
|
SEE GROUP 51
|
| 35. |
VOE13947464
|
[0001] |
Nipple
|
|
| 36. |
VOE338888
|
[0001] |
Hexagon nut
|
|
| 37. |
VOE326596
|
[0001] |
Fitting nut
|
|
| 38. |
VOE326599
|
[0001] |
Ferrule
|
|
| 39. |
VOE4940512
|
[0001] |
Sleeve
|
|
| 40. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L=720
|
| 41. |
VOE945919
|
[0001] |
Elbow nipple
|
|
| |
VOE13945894
|
|
Nut
|
SER NO 5488 -
|
| 42. |
VOE945895
|
[0002] |
Hexagon nut
|
|
| 43. |
VOE13949657
|
[0002] |
O-ring
|
|
| 44. |
VOE4737743
|
[0001] |
Overflow valve
|
|
| |
VOE6210724
|
[0001] |
Repair kit
|
|
| 45. |
VOE13947627
|
[0002] |
Plane gasket
|
|
| 46. |
VOE795030
|
[0001] |
Nipple
|
|
| 47. |
VOE6626218
|
[0001] |
Quick release valve
|
|
| |
|
|
None
|
|
| 48. |
VOE349749
|
[0001] |
Bushing
|
|
| 49. |
VOE191936
|
[0001] |
T-nipple
|
|
| 5. |
VOE13948458
|
[0001] |
Nipple
|
|
| 50. |
VOE954356
|
[0002] |
Fitting nut
|
|
| 51. |
VOE954364
|
[0002] |
Ferrule
|
|
| 52. |
VOE944717
|
[0002] |
Sleeve
|
|
| 53. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 1100
|
| 54. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L = 1700
|
| 55. |
|
[0001] |
Running board,folding
|
SEE GROUP 82
|
| 6. |
VOE13947281
|
[0001] |
Gasket
|
|
| 7. |
VOE1578928
|
[0001] |
Pressure indicator
|
|
| 1. |
|
[0001] |
Parking brake valve
|
|
| 8. |
VOE945918
|
[0001] |
Elbow nipple
|
SER NO - 5487
|
| |
VOE945919
|
|
Elbow nipple
|
SER NO 5488 -
|
| |
VOE945906
|
[0001] |
Nipple
|
SER NO 5488 -
|
| 9. |
VOE967559
|
[0004] |
Sleeve
|
SER NO - 5487
|
| |
VOE967559
|
|
Sleeve
|
SER NO 5488 -
|
| 10. |
VOE326599
|
[0004] |
Ferrule
|
SER NO - 5487
|
| |
VOE326599
|
|
Ferrule
|
SER NO 5488 -
|
| 11. |
VOE326596
|
[0004] |
Fitting nut
|
SER NO - 5487
|
| |
VOE326596
|
|
Fitting nut
|
SER NO 5488 -
|
| 12. |
VOE13943472
|
[0001] |
Hose clamp
|
|
| 2. |
VOE13946934
|
[0002] |
Screw
|
|
| 13. |
VOE942390
|
[REQ] |
Rubber hose
|
L = 1150
|
| 14. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L = 2700
|
| 15. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L = 250
|
| 16. |
VOE945462
|
[REQ] |
Tube
|
L = 3500
|
| 17. |
VOE1580024
|
[0001] |
Blocking valve
|
SER NO - 5487
|
| |
VOE1580024
|
|
Blocking valve
|
SER NO 5488 -
|
| |
VOE272536
|
[0001] |
Repair kit
|
|
| 18. |
VOE13960149
|
[0003] |
Washer
|
SER NO - 5487
|
| |
VOE13960149
|
|
Washer
|
SER NO 5488 -
|
| 19. |
VOE1501090
|
[0001] |
Cover
|
SER NO - 5487
|
| 3. |
VOE1587177
|
[0002] |
O-ring
|
SER NO - 5487
|
| |
VOE1501090
|
|
Cover
|
SER NO 5488 -
|
| 20. |
VOE1581201
|
[0001] |
Knob
|
SER NO - 5487
|
| |
VOE1581201
|
|
Knob
|
SER NO 5488 -
|
| 21. |
VOE945905
|
[0001] |
Nipple
|
SER NO - 5487
|
| |
VOE945905
|
|
Nipple
|
SER NO 5488 -
|
| 22. |
VOE326597
|
[0001] |
Fitting nut
|
SER NO - 5487
|
| |
VOE326597
|
|
Fitting nut
|
SER NO 5488 -
|
| 23. |
VOE326600
|
[0002] |
Sleeve
|
SER NO - 5487
|
| |
VOE326600
|
|
Sleeve
|
SER NO 5488 -
|
| 24. |
VOE967548
|
[0002] |
Support sleeve
|
SER NO - 5487
|
| |
VOE1587177
|
|
O-ring
|
SER NO 5488 -
|
| |
VOE967548
|
|
Support sleeve
|
SER NO 5488 -
|
| 25. |
VOE13947282
|
[0002] |
Gasket
|
SER NO - 5487
|
| |
VOE13947282
|
|
Gasket
|
SER NO 5488 -
|
| 26. |
VOE1587176
|
[0001] |
O-ring
|
|
| 27. |
VOE945893
|
[0001] |
Hexagon nut
|
|
| 28. |
VOE945917
|
[0001] |
Elbow nipple
|
|
| 29. |
VOE4871098
|
[0001] |
Protecting valve
|
|
| |
VOE272701
|
[0001] |
Repair kit
|
|
| 30. |
VOE943924
|
[0001] |
O-ring
|
|
| 31. |
VOE13945958
|
[0001] |
Nut
|
|
