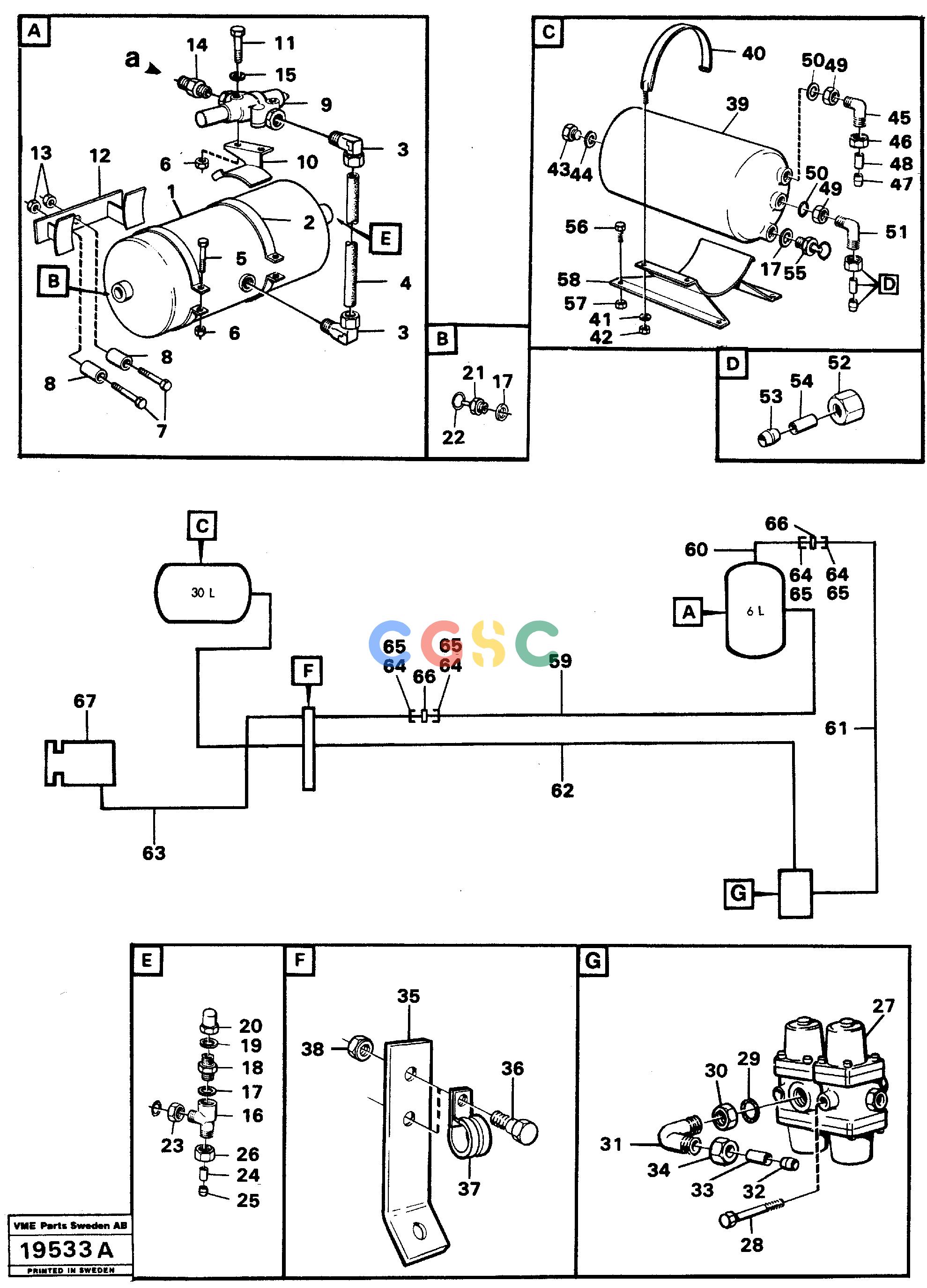

沃尔沃零件查询A25 VOLVO BM Feed linesVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
896 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE968973
|
[0002] |
Hexagon screw
|
|
| 42. |
VOE13971089
|
[0002] |
Lock nut
|
|
| 43. |
VOE13960634
|
[0001] |
Plug
|
|
| 44. |
VOE13947627
|
[0002] |
Plane gasket
|
|
| 45. |
VOE945925
|
[0001] |
Elbow nipple
|
|
| 46. |
VOE354145
|
[0001] |
Fitting nut
|
|
| 47. |
VOE967810
|
[0001] |
Ferrule
|
|
| 48. |
VOE967549
|
[0001] |
Support sleeve
|
|
| 49. |
VOE945895
|
[0002] |
Hexagon nut
|
|
| 50. |
VOE13949657
|
[0002] |
O-ring
|
|
| 51. |
VOE945922
|
[0001] |
Elbow nipple
|
|
| 6. |
VOE13945408
|
[0004] |
Nut
|
|
| 52. |
VOE326597
|
[0001] |
Fitting nut
|
|
| 53. |
VOE326600
|
[0001] |
Sleeve
|
|
| 54. |
VOE967548
|
[0001] |
Support sleeve
|
|
| 55. |
VOE1581425
|
[0001] |
Draining valve
|
|
| 56. |
VOE13946173
|
[0004] |
Screw
|
|
| 57. |
VOE13945408
|
[0004] |
Nut
|
|
| 58. |
VOE4737084
|
[0001] |
Anchorage
|
CAB - 4047
|
| |
VOE11055020
|
[0001] |
Anchorage
|
CAB 4048 -
|
| |
VOE4737084
|
[0001] |
Anchorage
|
|
| 59. |
VOE945463
|
[REQ] |
Tube
|
L=1950
|
| 7. |
VOE60113098
|
[0002] |
Flange screw
|
|
| 60. |
VOE4940850
|
[0001] |
Pipe
|
|
| 61. |
VOE945463
|
[REQ] |
Tube
|
L=620
|
| 62. |
VOE945462
|
[REQ] |
Tube
|
L=3400
|
| 63. |
VOE4942695
|
[0001] |
Pipe
|
|
| 64. |
VOE354145
|
[0004] |
Fitting nut
|
|
| 65. |
VOE967810
|
[0004] |
Ferrule
|
|
| 66. |
VOE354141
|
[0001] |
Nipple
|
|
| 67. |
|
[0001] |
Compressor
|
|
| 8. |
VOE60113600
|
[0002] |
Spacer sleeve
|
|
| 9. |
VOE6779895
|
[0001] |
Regulator
|
|
| 1. |
VOE11117324
|
[0001] |
Tank
|
|
| |
VOE1697131
|
[0001] |
Repair kit
|
|
| 10. |
|
[0001] |
Bracket
|
|
| 11. |
VOE955306
|
[0002] |
Hexagon screw
|
|
| 12. |
|
[0001] |
Bracket
|
|
| 13. |
VOE13971098
|
[0002] |
Flange nut
|
|
| 14. |
VOE13945910
|
[0002] |
Nipple
|
|
| 15. |
VOE930840
|
[0002] |
Plain washer
|
|
| 16. |
VOE946270
|
[0001] |
Nipple
|
|
| 17. |
VOE13947627
|
[0003] |
Plane gasket
|
|
| 18. |
VOE13949620
|
[0001] |
Nipple
|
|
| 2. |
VOE6615513
|
[0002] |
Tensioning band
|
|
| 19. |
VOE13947622
|
[0001] |
Plane gasket
|
SER NO - 5478
|
| 20. |
VOE1588148
|
[0001] |
Valve
|
SER NO - 5478
|
| |
VOE1622431
|
[0001] |
Safety valve
|
SER NO 5479 -
|
| |
VOE955990
|
[0001] |
O-ring
|
|
| 21. |
VOE1581425
|
[0001] |
Draining valve
|
|
| 22. |
VOE6626486
|
[0001] |
Ring
|
CAB - 4047
|
| 23. |
VOE945895
|
[0001] |
Hexagon nut
|
|
| 24. |
VOE967549
|
[0002] |
Support sleeve
|
|
| 25. |
VOE967810
|
[0002] |
Ferrule
|
|
| 26. |
VOE354145
|
[0002] |
Fitting nut
|
|
| 3. |
VOE945925
|
[0002] |
Elbow nipple
|
|
| 27. |
VOE4871098
|
[0001] |
Protecting valve
|
|
| |
VOE272701
|
[0001] |
Repair kit
|
|
| 28. |
VOE13946173
|
[0002] |
Screw
|
|
| 29. |
VOE13949657
|
[0001] |
O-ring
|
|
| 30. |
VOE945895
|
[0001] |
Hexagon nut
|
|
| 31. |
VOE945925
|
[0001] |
Elbow nipple
|
|
| 32. |
VOE967810
|
[0001] |
Ferrule
|
|
| 33. |
VOE967549
|
[0001] |
Support sleeve
|
|
| 34. |
VOE354145
|
[0001] |
Fitting nut
|
|
| 35. |
VOE13965562
|
[0001] |
Bracket
|
|
| 4. |
VOE945463
|
[REQ] |
Tube
|
L=105
|
| 36. |
VOE13946934
|
[0001] |
Screw
|
|
| 37. |
VOE952629
|
[0001] |
Clamp
|
|
| 38. |
VOE13949278
|
[0001] |
Flange lock nut
|
|
| |
VOE946441
|
[0001] |
Flange screw
|
M10X20
|
| 39. |
VOE11054369
|
[0001] |
Air tank
|
CAB 4048 -
|
| |
VOE1587680
|
[0001] |
Reservoir
|
CAB - 4047
|
| |
VOE1584476
|
[0001] |
Reservoir
|
|
| 40. |
VOE1613637
|
[0002] |
Mounting strap
|
CAB 4048 -
|
| |
VOE191508
|
[0002] |
Mounting strap
|
CAB - 4047,
|
| 41. |
VOE976945
|
[0002] |
Washer
|
|
