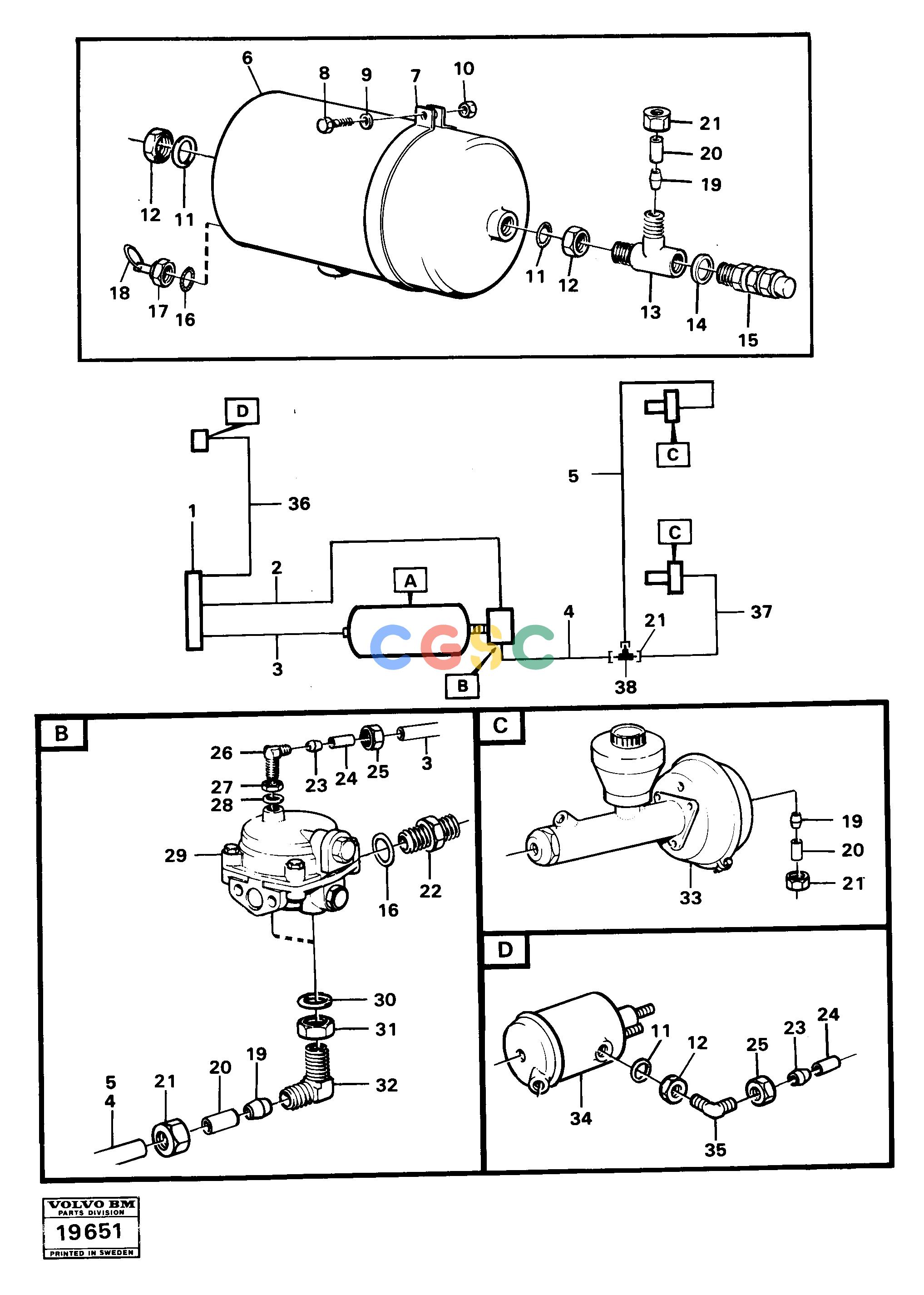

沃尔沃零件查询A25 VOLVO BM Brake circuit, trailer 4x4VOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
771 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE945462
|
[REQ] |
Tube
|
L=1050
|
| 6. |
VOE4940956
|
[0001] |
Reservoir
|
SER NO - 4058
|
| |
VOE11054369
|
[0001] |
Air tank
|
SER NO 4059 -
|
| |
VOE11061768
|
[0001] |
Tank
|
|
| 7. |
VOE4940898
|
[0002] |
Tensioning band
|
|
| 1. |
|
|
Hoses over hitch
|
|
| 8. |
VOE968974
|
[0002] |
Hexagon screw
|
|
| 9. |
VOE13955894
|
[0002] |
Washer
|
|
| 10. |
VOE13945408
|
[0002] |
Nut
|
|
| 11. |
VOE13949657
|
[0003] |
O-ring
|
|
| 12. |
VOE945895
|
[0003] |
Hexagon nut
|
|
| 13. |
VOE949414
|
[0001] |
Nipple
|
|
| 14. |
VOE13947622
|
[0001] |
Plane gasket
|
SER NO - 5478
|
| 15. |
VOE1588148
|
[0001] |
Valve
|
SER NO - 5478
|
| |
VOE1622431
|
[0001] |
Safety valve
|
SER NO 5479 -
|
| |
VOE955990
|
[0001] |
O-ring
|
|
| 2. |
VOE945462
|
[REQ] |
Tube
|
L=1950
|
| 16. |
VOE13947627
|
[0003] |
Plane gasket
|
|
| 17. |
VOE1581425
|
[0001] |
Draining valve
|
|
| 18. |
VOE6626486
|
[0001] |
Ring
|
|
| 19. |
VOE326600
|
[0005] |
Sleeve
|
|
| 20. |
VOE967548
|
[0005] |
Support sleeve
|
|
| 21. |
VOE326597
|
[0005] |
Fitting nut
|
|
| 22. |
VOE945956
|
[0001] |
Nipple
|
|
| 23. |
VOE326599
|
[0002] |
Ferrule
|
|
| 24. |
VOE967559
|
[0002] |
Sleeve
|
|
| 25. |
VOE326596
|
[0002] |
Fitting nut
|
|
| 3. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L=1170
|
| 26. |
VOE945917
|
[0001] |
Elbow nipple
|
|
| 27. |
VOE945893
|
[0001] |
Hexagon nut
|
|
| 28. |
VOE1587176
|
[0001] |
O-ring
|
|
| 29. |
VOE1505036
|
[0001] |
Relay valve
|
|
| 30. |
VOE943924
|
[0002] |
O-ring
|
|
| 31. |
VOE13945958
|
[0002] |
Nut
|
|
| 32. |
VOE945964
|
[0002] |
Elbow nipple
|
|
| 33. |
|
[0002] |
Brake unit
|
SEE GROUP 52
|
| 34. |
|
[0001] |
Propeller shaft brake
|
SEE GROUP 55
|
| |
|
[0001] |
Brake cylinder
|
|
| 4. |
VOE945462
|
[REQ] |
Tube
|
L=430
|
| 35. |
VOE945919
|
[0001] |
Elbow nipple
|
|
| 36. |
VOE13945461
|
[REQ] |
Plastic pipe
|
L=420
|
| 37. |
VOE945462
|
[REQ] |
Tube
|
L=540
|
| 38. |
VOE327070
|
[1] |
T-nipple
|
|
