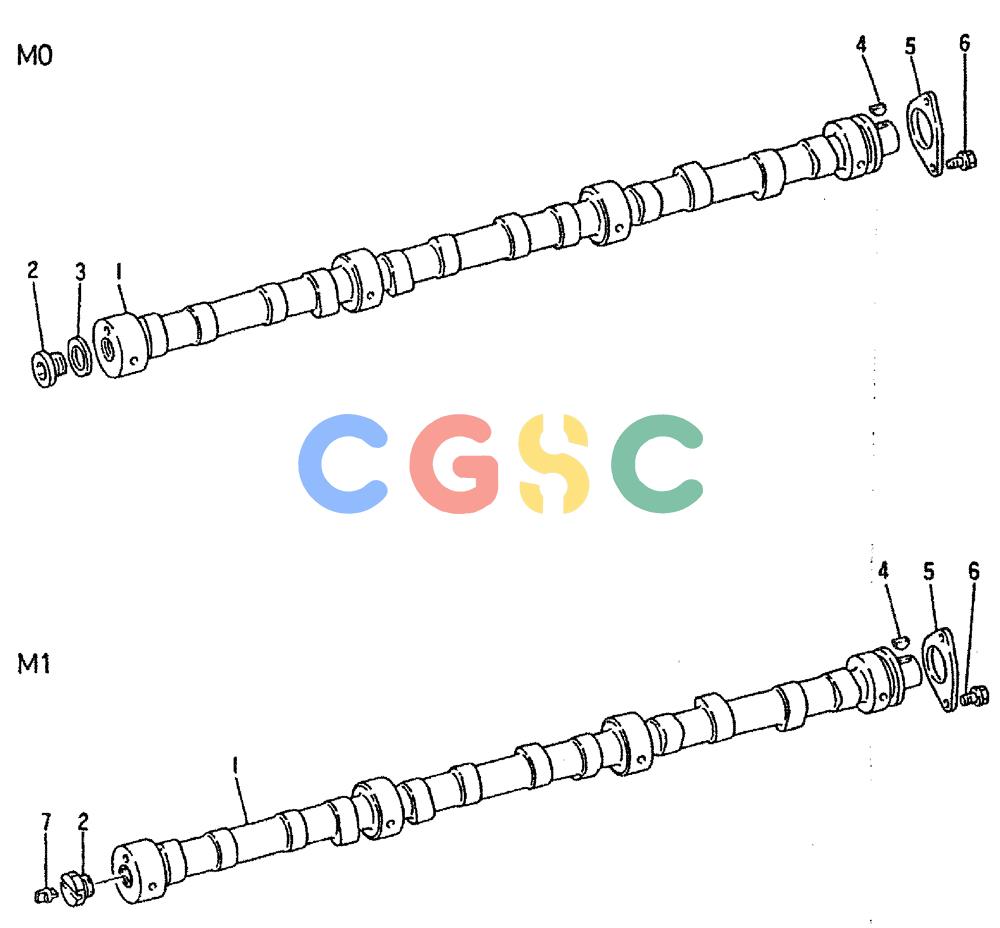

神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-022) - CAMSHAFT Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
477 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME071145 | [1] | CAMSHAFT | CAMSHAFT |
| 2. | VAME038069 | [1] | COUPLING | KOBCONNECTOR, M1 ONLY |
| . . | VAMH037137 | [1] | PLUG | KOBPLUG, M0 ONLY |
| 3. | VAMF660068 | [1] | PACKING | KOBGASKET 20, M0 ONLY Superseded by part number: VAF420220000 |
| 4. | VAMS476135 | [1] | KEY | KOBKEY, WOODRUFF, 5 X 19 Superseded by part number: 132499A1 |
| 5. | VAME031768 | [1] | THRUST PLATE | KOB Superseded by part number: VAME071319 |
| 6. | VAMF140223 | [2] | BOLT | KOBBOLT, FLANGE, 8 X 16 |
| 7. | VAME038071 | [1] | FASTENER COUPLING, TACHO DRIVE, M1 ONLY | FASTENER COUPLING, TACHO DRIVE, M1 ONLY |
