神钢零件查询(6D15) - MITSUBISHI DIESEL ENGINE - K909LC & MD240BLC (1/87-12/06) (01-023) - TIMING GEAR Kobelco
广数供应链运营团队, 14 02月, 2025，浏览：
779 次

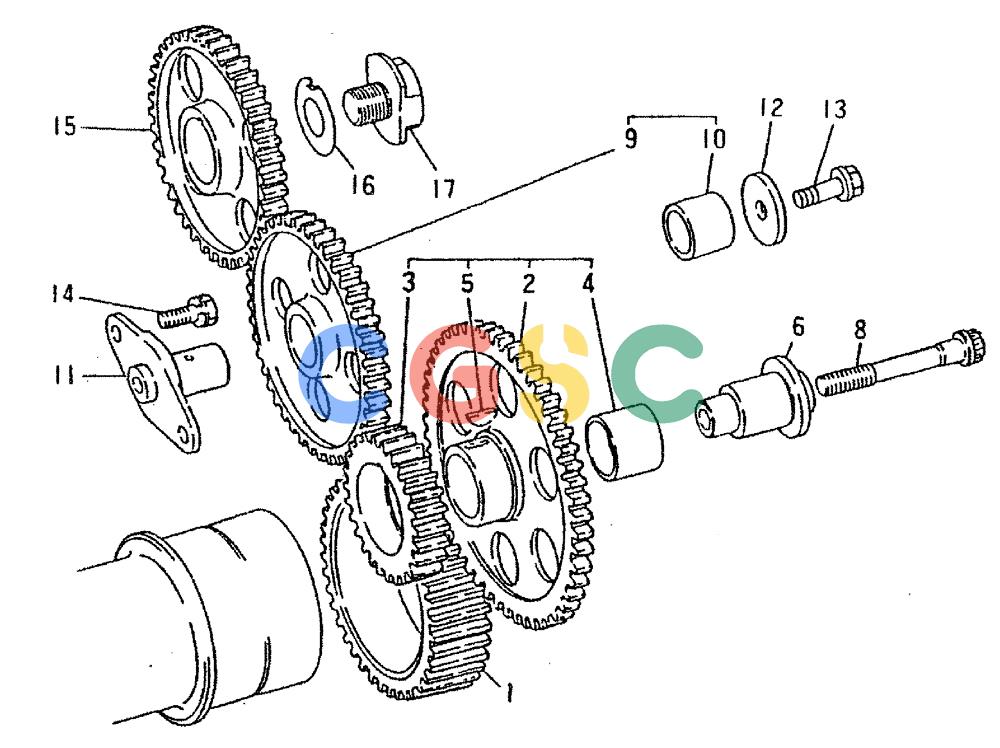

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAME032684 | [1] | GEAR | KOBZ=42 |
| 2-5. | VAME072158 | [1] | GEAR | KOB |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER, A NO. 1, Z=52 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER, B NO. 1, Z=26 |
| 4. | VAME072154 | [1] | BUSHING | KOB |
| 5. | VAMS476135 | [1] | KEY | KOBKEY, WOODRUFF 5 X 19 Superseded by part number: 132499A1 |
| 6. | VAME032678 | [1] | IDLE SHAFT | KOBNO. 1 |
| 8. | VAMH000315 | [1] | SCREW | KOBBOLT 12 X 85 |
| 9-10. | VAME072152 | [1] | GEAR | KOBNO.2 |
| 9. | NSS | [1] | NOT SOLD SEPARAT | CONIDLER, NO. 2, Z=45 |
| 10. | VAME072154 | [1] | BUSHING | KOB |
| 11. | VAME072156 | [1] | IDLE SHAFT | KOBSHAFT, IDLER, NO. 2 |
| 12. | VAME072157 | [1] | THRUST PLATE | KOBWASHER |
| 13. | VAMF140223 | [1] | BOLT | KOBBOLT, FLANGE, 8 X 16 |
| 14. | VAMH000713 | [2] | BOLT | KOBBOLT, FLANGE, 10 X 20 |
| 15. | VAME032032 | [1] | GEAR | KOBCAMSHAFT, Z=42 |
| 16. | VAME034779 | [1] | WASHER | KOBWASHER |
| 17. | VAME034771 | [1] | BOLT | KOB |
