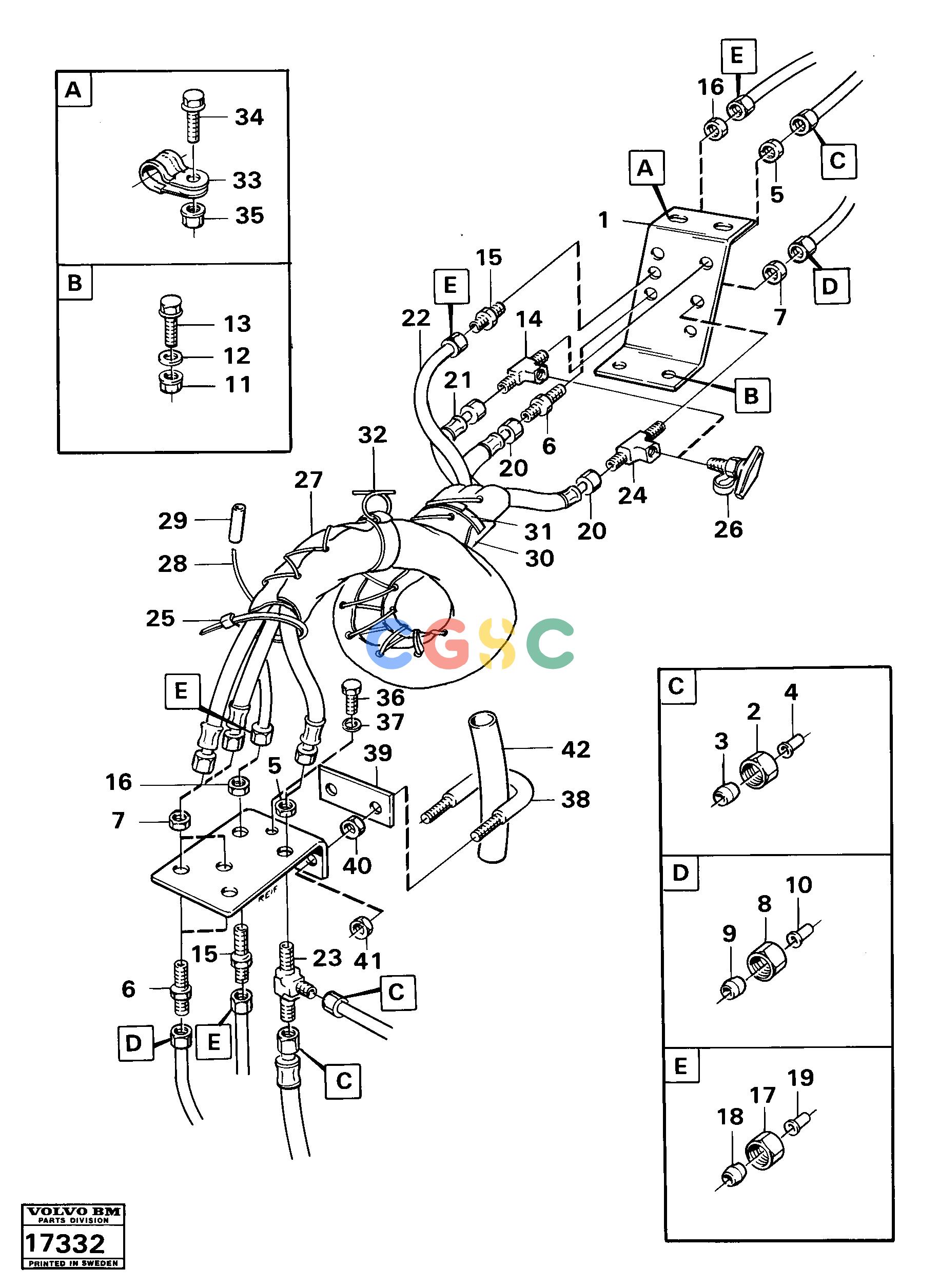

沃尔沃零件查询A25 VOLVO BM Hoses over hitchVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
643 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE350039
|
[0002] |
Hexagon nut
|
|
| 6. |
VOE11118363
|
[0004] |
Nipple
|
|
| 7. |
VOE338888
|
[0004] |
Hexagon nut
|
|
| 8. |
VOE326596
|
[0004] |
Fitting nut
|
|
| 9. |
VOE326599
|
[0004] |
Ferrule
|
|
| 1. |
|
[0001] |
Bracket
|
|
| 10. |
VOE967559
|
[0004] |
Sleeve
|
|
| 11. |
VOE13971098
|
[0002] |
Flange nut
|
|
| 12. |
VOE945987
|
[0002] |
Toothed washer
|
|
| 13. |
VOE946329
|
[0002] |
Flange screw
|
|
| 14. |
VOE948452
|
[0001] |
Nipple
|
|
| 15. |
VOE13949064
|
[0002] |
Fitting
|
|
| 16. |
VOE192272
|
[0002] |
Lock nut
|
|
| 17. |
VOE954356
|
[0006] |
Fitting nut
|
|
| 18. |
VOE954364
|
[0006] |
Ferrule
|
|
| 19. |
VOE944717
|
[0006] |
Sleeve
|
|
| 2. |
VOE326597
|
[0003] |
Fitting nut
|
|
| 20. |
VOE13977921
|
[0002] |
Hose assembly
|
|
| 21. |
VOE966373
|
[0001] |
Hose assembly
|
|
| 22. |
VOE13945460
|
[REQ] |
Plastic pipe
|
L=1850
|
| 23. |
VOE946908
|
[0001] |
T-nipple
|
|
| 24. |
VOE13948892
|
[0001] |
Nipple
|
|
| 25. |
VOE4881440
|
[0002] |
Cable tie
|
|
| 26. |
VOE1592924
|
[0002] |
Test nipple
|
|
| 27. |
VOE11061360
|
[0001] |
Protecting capping
|
|
| 28. |
VOE4940374
|
[REQ] |
Rope
|
|
| 29. |
|
[0002] |
Plastic hose
|
|
| 3. |
VOE326600
|
[0003] |
Sleeve
|
|
| 30. |
VOE4940312
|
[0001] |
Plate
|
|
| 31. |
VOE11104606
|
[0004] |
Retaining strap
|
|
| 32. |
VOE4941839
|
[0001] |
Spring
|
|
| 33. |
VOE952638
|
[0001] |
Clamp
|
|
| 34. |
VOE13946934
|
[0001] |
Screw
|
|
| 35. |
VOE13949278
|
[0001] |
Flange lock nut
|
|
| 36. |
VOE13946501
|
[0001] |
Screw
|
|
| 37. |
VOE955948
|
[0001] |
Toothed washer
|
|
| 38. |
VOE4940639
|
[0001] |
Brace
|
|
| 39. |
|
[0001] |
Rubber plate
|
|
| 4. |
VOE967548
|
[0003] |
Support sleeve
|
|
| 40. |
VOE955782
|
[0002] |
Hexagon nut
|
|
| 41. |
VOE13945408
|
[0002] |
Nut
|
|
| 42. |
VOE952967
|
[REQ] |
Hose
|
L=80
|
