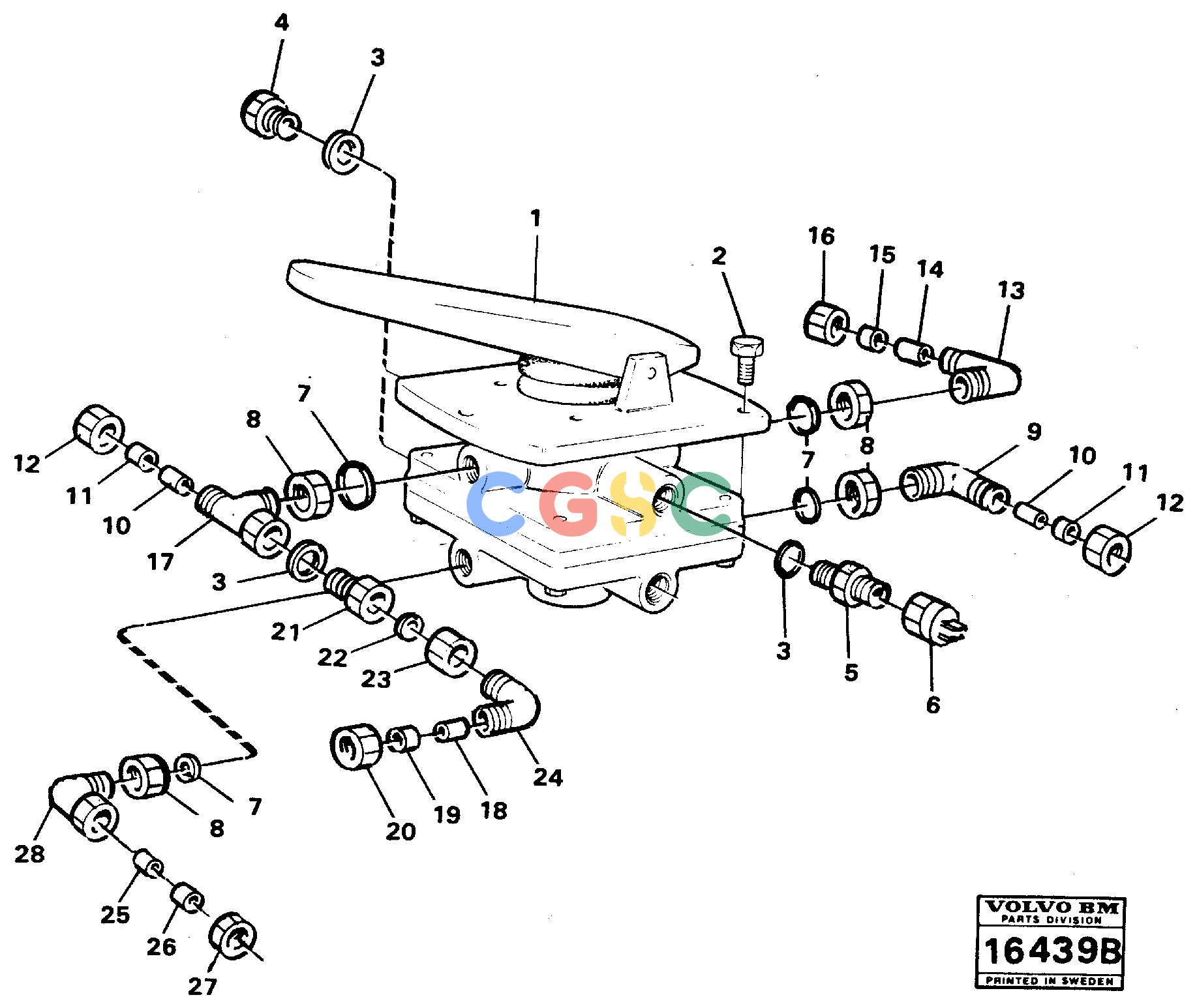

沃尔沃零件查询A25 VOLVO BM Foot-brake valve fittingVOLVO BM A25 NoneNoneNoneAutodata Volvo online
广数供应链运营团队, 14 02月, 2025，浏览：
566 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 5. |
VOE7349487
|
[0002] |
Nipple
|
|
| 6. |
VOE3092454
|
[0002] |
Contact
|
|
| 7. |
VOE13949657
|
[0004] |
O-ring
|
|
| 8. |
VOE945895
|
[0004] |
Hexagon nut
|
|
| 9. |
VOE13945944
|
[0001] |
Nipple
|
|
| 1. |
|
[0001] |
Footbrake Valve
|
|
| 10. |
VOE967548
|
[0002] |
Support sleeve
|
|
| 11. |
VOE326600
|
[0002] |
Sleeve
|
|
| 12. |
VOE326597
|
[0002] |
Fitting nut
|
|
| 13. |
VOE945919
|
[0001] |
Elbow nipple
|
|
| 14. |
VOE967559
|
[0001] |
Sleeve
|
|
| 15. |
VOE326599
|
[0001] |
Ferrule
|
|
| 16. |
VOE326596
|
[0001] |
Fitting nut
|
|
| 17. |
VOE13946020
|
[0001] |
Nipple
|
|
| 18. |
VOE944717
|
[0001] |
Sleeve
|
|
| 19. |
VOE954364
|
[0001] |
Ferrule
|
|
| 2. |
VOE60113082
|
[0003] |
Flange screw
|
|
| 20. |
VOE954356
|
[0001] |
Fitting nut
|
|
| 21. |
VOE946087
|
[0001] |
Nipple
|
|
| 22. |
VOE945896
|
[0001] |
Gasket
|
|
| 23. |
VOE13945892
|
[0001] |
Nut
|
|
| 24. |
VOE13945915
|
[0001] |
Elbow nipple
|
|
| 25. |
VOE967549
|
[0001] |
Support sleeve
|
|
| 26. |
VOE967810
|
[0001] |
Ferrule
|
|
| 27. |
VOE354145
|
[0001] |
Fitting nut
|
|
| 28. |
VOE945925
|
[0001] |
Elbow nipple
|
|
| 3. |
VOE13947627
|
[0005] |
Plane gasket
|
|
| 4. |
VOE13960634
|
[0002] |
Plug
|
|
